pogo pin connector (4-point) pitch 2.5mm, pogo pin contact pad

Description

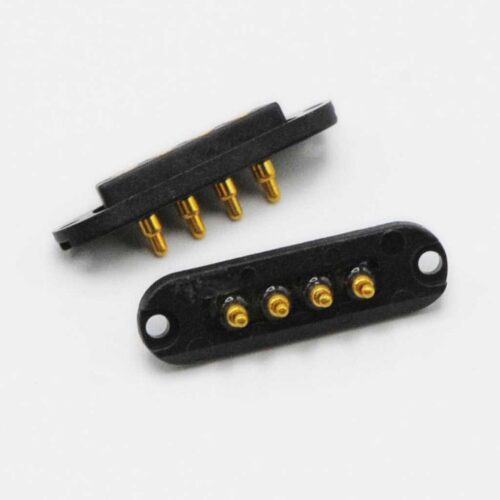

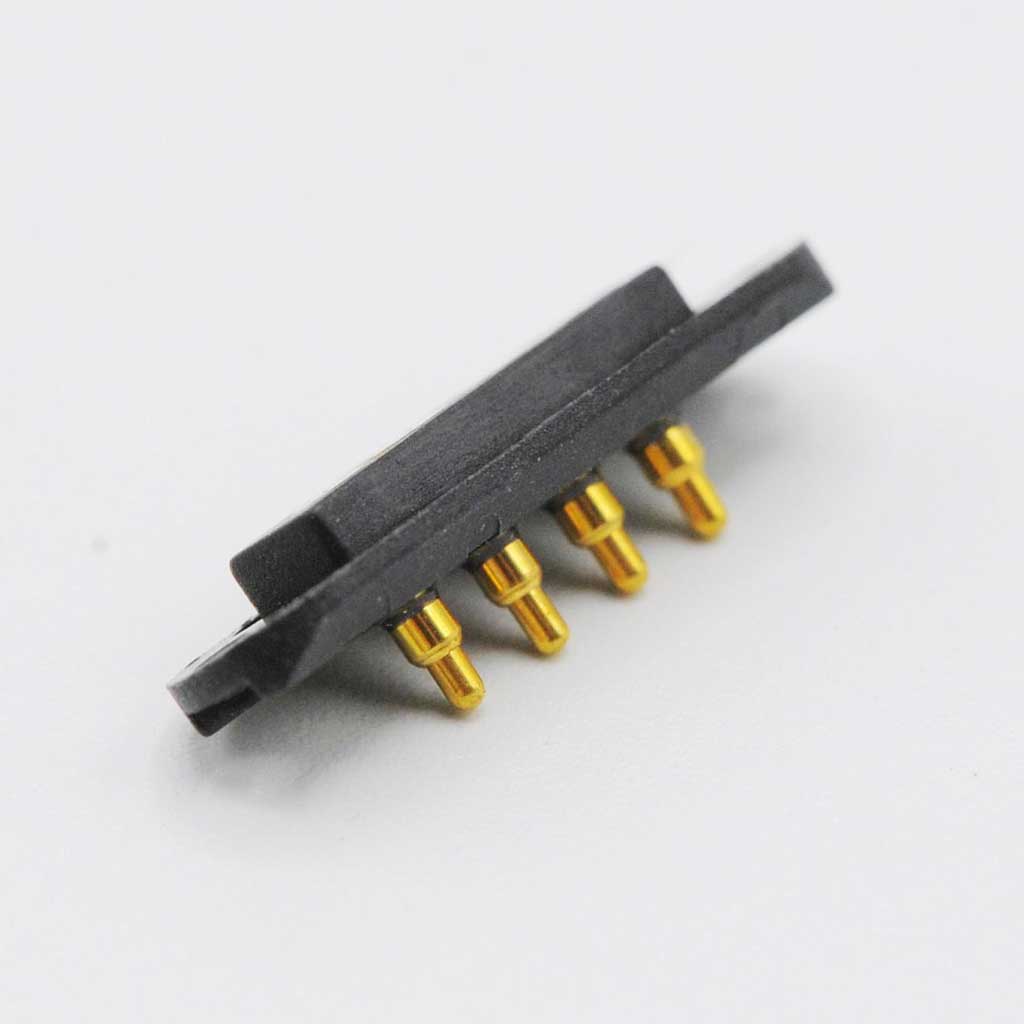

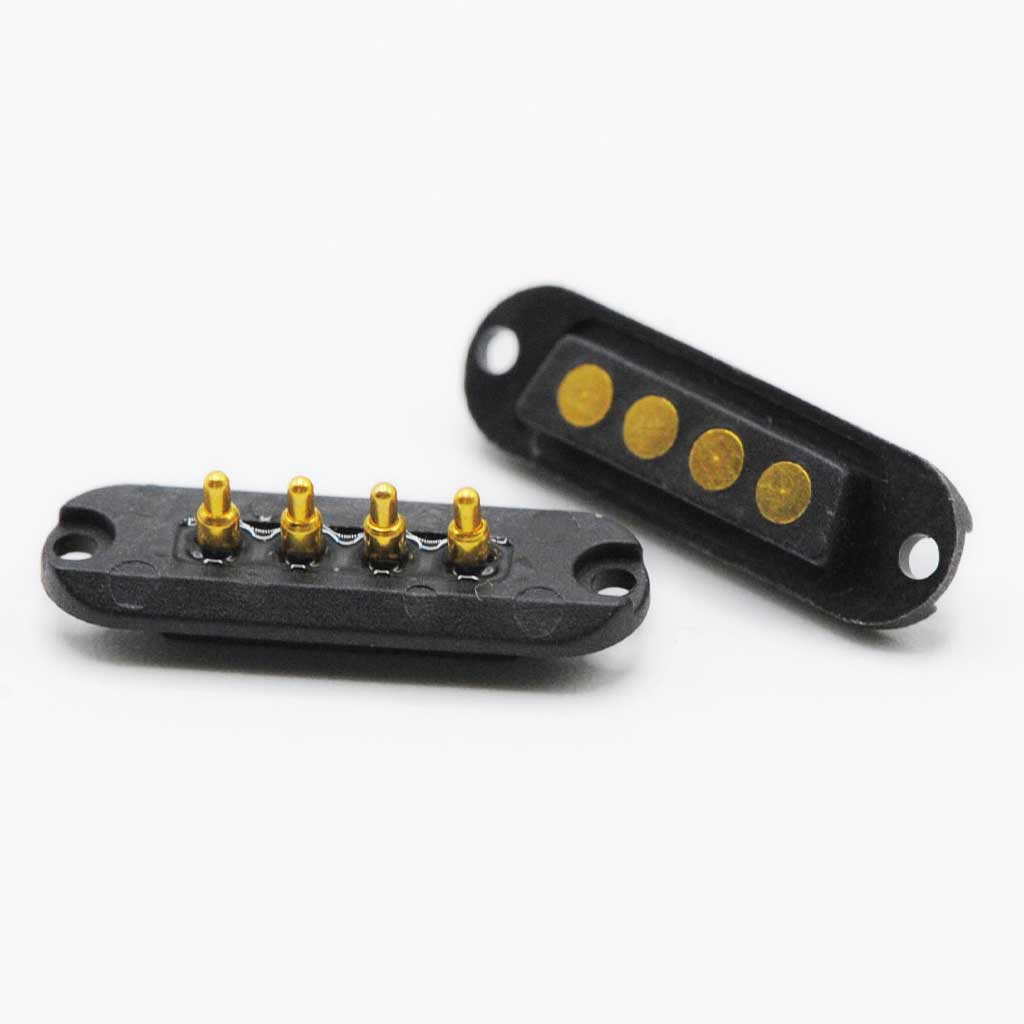

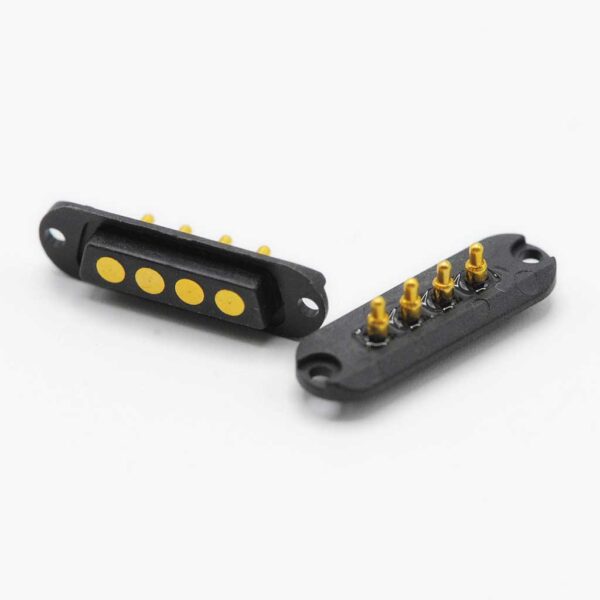

pogo pin connector (4-point) can also be used as a pogo pin contact pad, waterproof design, pitch 2.5mm, 4.30mm working height , Different specifications and currents can be customized, contact us immediately to customize.



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M.
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtained when the plunger goes downwards and upwards.
    <2.2>Warning: Working height is not permitted to be less than a Min working height.
3 Electrical performance
    Current rating: 1.0A
    Voltage rating:12VAC/DC
    Dynamic Resistance:30mOhm Max.(between max and min working height)
    Insulation Resistance:100MOhm minimum
    Dielectric Withstand Voltage:100VAC/minute
4 Packaging specification conforms to ElA 481
5 Working temperature
    Withstanding High Temperature: 260C
    Operational Temperature:-40C~+850
6 Water-resistant 50M
