3-pin pogo pin connector working height 1.95mm pitch 2.40mm Factory Direct Supply

3-pin pogo pin connector pogo pins spring loaded pins 3 pin pogo connector pogo pin connector

3-pin pogo pin connector working height 1.95mm pitch 2.40mm Factory Direct Supply

Original price was: $1.52.Current price is: $1.48.

6083 in stock

  • working height
    1.95 mm
  • pitch
    2.4 mm
  • Force
    40 ±10gf

Description

3-pin pogo pin connector

&nbsp

pogo pin connector manufacturer direct supply spot 3-pin pogo pin connector, pitch 2.40mm, various types of pogo pin connector, spring loaded pins can be customized, Welcome to contact us for product catalog.



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forcesobtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 1.0A Max
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <4.1>RoHS compliant
    <4.2>Operating Temperature range:-40C~+85C
    <4.3>Withstanding Higt Temperature:260C/10Sec
5 Packaging:Carrier tape

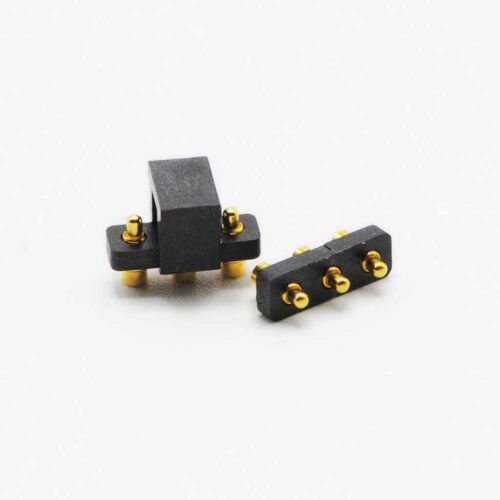

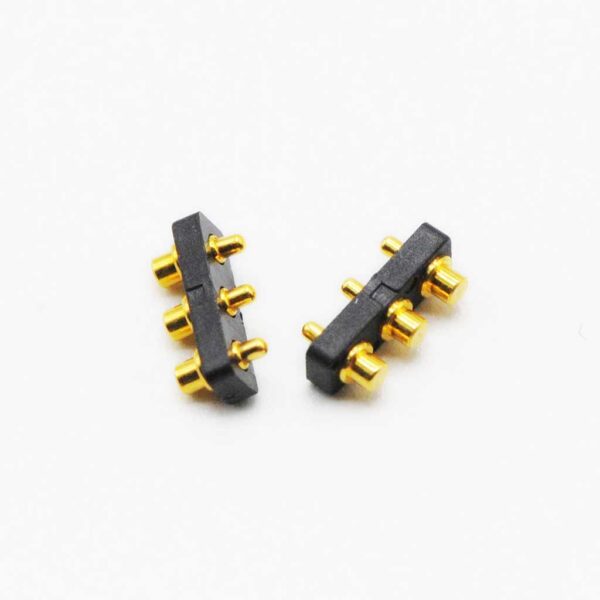

Product Image

3-pin pogo pin connector
3-pin pogo pin connector
pogo pin connector
pogo pin connector
3 pin pogo connector
3 pin pogo connector
spring loaded pins
spring loaded pins
pogo pins
pogo pins

Drawings

3-pin pogo pin connector drawing
3-pin pogo pin connector drawing

Drawing download 130       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “3-pin pogo pin connector working height 1.95mm pitch 2.40mm Factory Direct Supply”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 1.95 mm, pitch, 2.4 mm, Pin Amount, 3 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, 40 ±10gf
