spring loaded pogo pin connector 3 pin 2.50mm pitch

spring loaded pogo pin connector 3 pin spring loaded pogo pin connector pogo pin connector 3 pin pogo connector 3 pin pogo pin connector

spring loaded pogo pin connector 3 pin 2.50mm pitch

$0.97

612 in stock

  • working stroke
    1.00 mm
  • Pin Amount
    3 Pins
  • Force
    unknown

Description



3 pin spring loaded pogo pin connector

Non-right-angle side-entry 3 pin spring loaded pogo pin connector, small size, semi-enclosed, non-standard. More types of pogo pin connectors can be customized, welcome to contact us.



Drawing description

Material,Housing: PA 4.6 (30% Glass Filled)
Color Black.(UL94V-0)
Contact: Brass
Platingplunger: Min 0.4um Au over 1.4umNi
Platingbody: Min 0.lum Au over 1.4um Ni

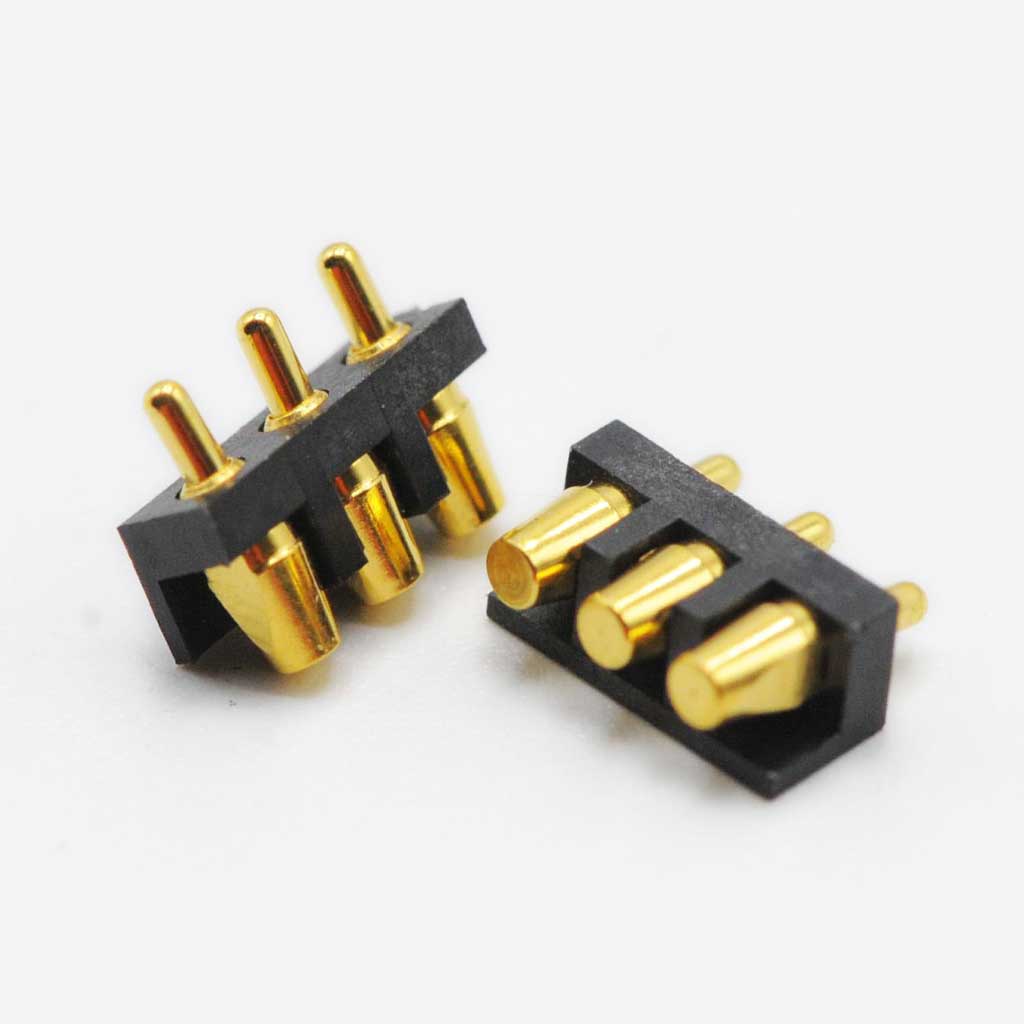

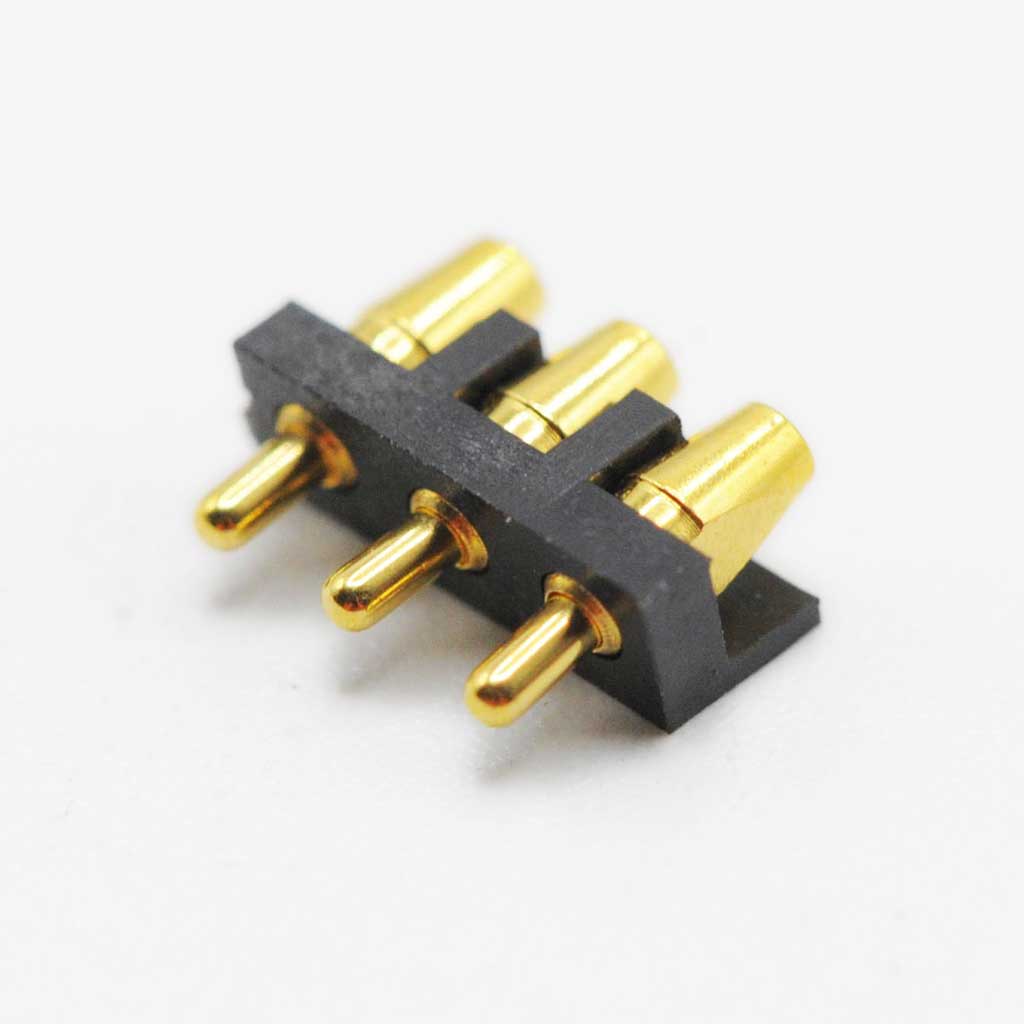

Product Image

spring loaded pogo pin connector 3 pin
spring loaded pogo pin connector 3 pin
3 pin pogo pin connector
3 pin pogo pin connector
3 pin pogo connector
3 pin pogo connector
pogo pin connector
pogo pin connector
spring loaded pogo pin connector
spring loaded pogo pin connector

Drawings

spring loaded pogo pin connector drawing
spring loaded pogo pin connector drawing

Drawing download 95       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “spring loaded pogo pin connector 3 pin 2.50mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working stroke, 1.00 mm, Pin Amount, 3 Pins, Pitch, 2.50 mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.00 A, Rated Voltage, 36 V, Force, unknown
