Pogo pin connector/Spring-Loaded Connectors working height 3.5mm Pogo Pins Manufacturer

pogo pin sizes pogo pin pogo pins Pogo pin connector pogo pin charging

Pogo pin connector/Spring-Loaded Connectors working height 3.5mm Pogo Pins Manufacturer

  • Work Height
    3.5mm
  • diameter
    0.9mm
  • Force
    60 ±25 gf

Description



Pogo pin connector
Pogo pin connector/Spring-Loaded Connectors working height 3.5mm Pogo Pins Manufacturer
top-link is the third largest pogo pins manufacturer in the world. It was founded in 2005. It focuses on high-precision pogo pin connectors and connector components (modules), and customizes more than 2,000 product connector components (modules) for customers. Learn more. Please contact us.



Drawing description

1 Dimensions shall be interpreted per ASMEY14.5M 2 Mechanical performance(See the table 1)     <2.1>The force is the average of forcesobtainedwhen plunger goes downwards and upwards    <2.2>Warning:Working height are not permitted to be less than Min working height 3 Electrical performance    <3.1>Current rqting: 2.0A    <3.2>Voltage rating: 36VAC/DC    <3.3>Dynamic Resistance:50mOhm Max(between max and min working height)    <3.4>Insulation Resistance:100MOhm minimum 4 Environmental performance    <4.1> RoHS compliant    <4.2>Opergting Temperature range:-40C~+85C    <4.3>Withstanding High Temperature:260C/10Sec 5 Packaging:Carrier tape

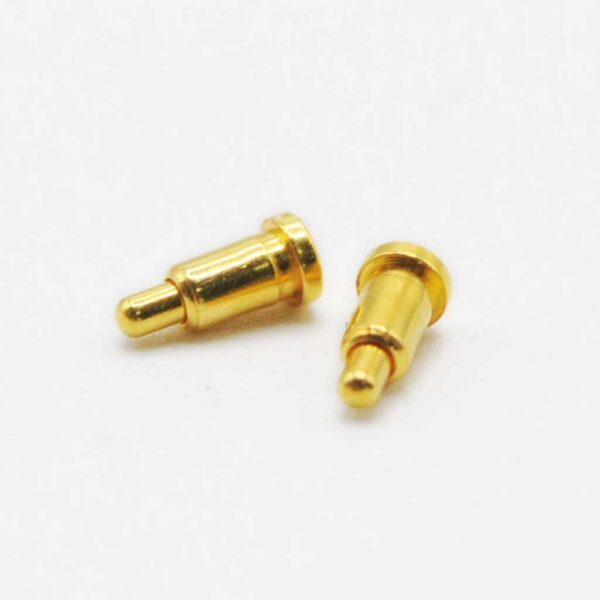

Product Image

pogo pin charging
pogo pin charging
pogo pin sizes
pogo pin sizes
Pogo pin connector
Pogo pin connector
pogo pins
pogo pins
pogo pin
pogo pin

Drawings

pogo pins drawing images
pogo pins drawing images

Drawing download 50       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “Pogo pin connector/Spring-Loaded Connectors working height 3.5mm Pogo Pins Manufacturer”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 3.5mm, diameter, 0.9mm, Pin Amount, 1 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 60 ±25 gf
