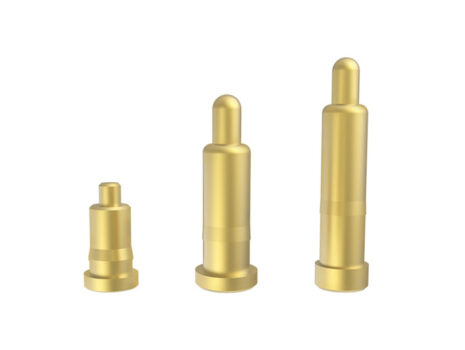

Pogo Pin Characteristics
Common structure of pogo pin
Pogo pin contact principle
Characteristics
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on PCB
- Good performance on RF solution
- RoHS and Halogen Free
Common internal structure of Pogo Pin
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Contact stability | ★ ★ ★ ★ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ★ ★ |
| Processing cost | ★ ★ ★ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ★ ★ ☆ |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |
Product Model
| Index | Part No. | ∅ A | B | C | D | E | Force(gf) | PDF |
|---|
| Index | Part No. | ∅ A | B | C | D | E | Force(gf) | PDF |
|---|
| 1 | 20101011233 | 1.2 | 0.6 | 1.45 | 1.95 | 1.6 | 35gf Min | |
| 2 | 101245-1 | 2 | 0.4 | 2.2 | 3 | 2.4 | 90 Min | |
| 3 | 10101011363 | 1.8 | 0.5 | 2.3 | 3 | 2.5 | 90 Min | |
| 4 | 101089-1 | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 5 | 101603-1 | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 6 | 101022-1 | 1.65 | 0.6 | 2.4 | 3.2 | 2.7 | 90 Min | |
| 7 | 101080-1 | 1.8 | 0.4 | 2.5 | 3.3 | 2.8 | 90±20 | |
| 8 | 101121-1 | 2 | 0.4 | 2.5 | 3.3 | 2.8 | 90±20 | |
| 9 | 101281-1 | 2 | 0.4 | 2.5 | 3.5 | 2.8 | 100±35 | |
| 10 | 101009-1 | 2 | 0.4 | 2.5 | 3.5 | 2.9 | 100±30 | |
| 11 | 101056-1 | 2 | 0.4 | 2.7 | 3.5 | 2.9 | 60 Min | |
| 12 | 101259-1 | 1.8 | 0.4 | 2.5 | 3.5 | 2.9 | 80±25 | |
| 13 | 101299-1 | 2 | 0.4 | 2.5 | 3.5 | 2.9 | 90±30 | |
| 14 | 101607-1 | 2 | 0.4 | 2.5 | 3.5 | 2.9 | 80±20 | |
| 15 | 101489-1 | 2 | 0.4 | 2.7 | 3.7 | 3 | 75±18 | |
| 16 | 101078-1 | 2 | 0.4 | 2.7 | 3.8 | 3.1 | 80±30 | |
| 17 | 101386-1 | 1.8 | 0.4 | 2.5 | 3.5 | 3.1 | 20 | |
| 18 | 101411-1 | 2 | 0.4 | 2.7 | 3.8 | 3.1 | 70 Min | |
| 19 | 101112-1 | 1.9 | 0.9 | 2.9 | 4 | 3.2 | 120±30 | |
| 20 | 101277-1 | 2 | 0.4 | 2.7 | 4 | 3.2 | 80±25 | |
| 21 | 101400-1 | 1.8 | 0.5 | 3.1 | 4.2 | 3.4 | 110±25 | |
| 22 | 101030-1 | 2 | 0.5 | 3 | 4 | 3.5 | 65 Min | |
| 23 | 101046-1 | 2 | 0.5 | 3 | 4 | 3.5 | 110±25 | |
| 24 | 101088-1 | 2 | 0.5 | 3 | 4.3 | 3.5 | 120±30 | |
| 25 | 101197-1 | 2 | 0.5 | 3.3 | 4.6 | 3.5 | 100 Min | |
| 26 | 101499-1 | 2 | 0.5 | 3 | 4.3 | 3.5 | 65 Min | |
| 27 | 101187-1 | 2 | 0.5 | 3.3 | 4.6 | 3.6 | 100 Min | |
| 28 | 101211-1 | 2 | 0.5 | 3 | 4.5 | 3.6 | 180 Max | |
| 29 | 101450-1 | 1.65 | 0.8 | 3.3 | 4.6 | 3.6 | 100+60/-20 | |
| 30 | 101060-1 | 2 | 0.5 | 3.5 | 4.8 | 3.8 | 80 Min | |
| 31 | 101110-1 | 2 | 0.5 | 3.3 | 4.8 | 3.8 | 90 Min | |
| 32 | 101004-1 | 2.7 | 1.9 | 3.5 | 5 | 4 | 138±35 | |
| 33 | 101029-1 | 2 | 0.5 | 3.5 | 5 | 4 | 50 Min | |
| 34 | 101068-1 | 1.9 | 1 | 3.5 | 5 | 4 | 95 Min | |
| 35 | 101100-1 | 2 | 0.5 | 3.5 | 5 | 4 | 120±30 | |
| 36 | 101196-1 | 2 | 0.5 | 3.5 | 5 | 4 | 150±25 | |
| 37 | 101217-1 | 2 | 0.5 | 3.5 | 5 | 4 | 80 Min | |
| 38 | 101198-1 | 1.65 | 0.7 | 3.7 | 5.2 | 4.2 | 135±30 | |
| 39 | 101216-1 | 1.65 | 0.7 | 3.7 | 5.5 | 4.3 | 180±30 | |
| 40 | 101065-1 | 2 | 0.5 | 3.7 | 5.2 | 4.35 | 120±25 | |
| 41 | 101135-1 | 2 | 0.5 | 3.7 | 5.2 | 4.35 | 75±15 | |
| 42 | 101001-1 | 2 | 0.5 | 4 | 5.5 | 4.5 | 120+30/-20 | |
| 43 | 101138-1 | 2 | 0.5 | 4 | 6 | 4.5 | 165±30 | |
| 44 | 101258-1 | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 45 | 101360-1 | 2 | 0.5 | 4 | 5.5 | 4.5 | 30±15 | |
| 46 | 101501-1 | 1.65 | 0.7 | 3.7 | 5.5 | 4.5 | 50±10 | |
| 47 | 101502-1 | 2 | 0.5 | 4 | 5.5 | 4.5 | 50±10 | |
| 48 | 101177-1 | 1.9 | 0.5 | 4.2 | 5.7 | 4.7 | 60 Min | |
| 49 | 101414-1 | 2.7 | 1.9 | 4 | 5.5 | 4.7 | 140±25 | |
| 50 | 101476-1 | 2.7 | 1.9 | 3.5 | 5.5 | 4.7 | 125±25 | |
| 51 | 101010-1 | 2 | 0.5 | 4 | 5.8 | 4.8 | 90Min | |
| 52 | 101398-1 | 2 | 0.5 | 3.3 | 5.5 | 4.8 | 60 Max | |
| 53 | 101076-1 | 1.8 | 1.3 | 4.5 | 6.3 | 5 | 90 Min | |
| 54 | 101134-1 | 1.8 | 1.3 | 4.5 | 6 | 5 | 80 Min | |
| 55 | 101175-1 | 2 | 0.5 | 4.5 | 6.5 | 5 | 90 Min | |
| 56 | 101282-1 | 2.1 | 1.5 | 4.5 | 6 | 5 | 80±15 | |
| 57 | 101293-1 | 1.75 | 0.5 | 4.4 | 6.1 | 5 | 82+15/-10 | |
| 58 | 101519-1 | 2 | 0.5 | 4.5 | 6.5 | 5 | 200 Max | |
| 59 | 101120-1 | 2 | 0.5 | 4.5 | 6.3 | 5.1 | 95 Min | |
| 60 | 101672-1 | 0 | 0 | 4.7 | 6.35 | 5.15 | 100±20 | |
| 61 | 101246-1 | 2 | 0.5 | 4 | 6 | 5.2 | 65±25 | |
| 62 | 101294-1 | 2 | 0.5 | 4 | 6.3 | 5.25 | 120+30/-20 | |
| 63 | 101103-1 | 2.3 | 1 | 4.8 | 6.3 | 5.3 | 80±20 | |
| 64 | 101023-1 | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 65 | 101052-1 | 2 | 1 | 5 | 7 | 5.5 | 157±30 | |
| 66 | 101079-1 | 2 | 1 | 5 | 6.8 | 5.5 | 100 Min | |
| 67 | 101083-1 | 1.8 | 0.8 | 5 | 6.5 | 5.5 | 95 Min | |
| 68 | 101093-1 | 2 | 1 | 5 | 6.5 | 5.5 | 110+30/-20 | |
| 69 | 101106-1 | 1.8 | 0.5 | 5 | 6.5 | 5.5 | 95 Min | |
| 70 | 101218-1 | 1.8 | 1.3 | 4.5 | 6.8 | 5.5 | 90 Min | |
| 71 | 101284-1 | 2 | 1 | 5 | 7 | 5.5 | 80±35 | |
| 72 | 101460-1 | 2 | 0.5 | 5 | 7 | 5.5 | 80±35 | |
| 73 | 101640-1 | 1.8 | 1.3 | 5 | 7.6 | 5.5 | 90 Min | |
| 74 | 101683-1 | 0 | 0 | 5.2 | 6.85 | 5.65 | 100±20 | |
| 75 | 101724-1 | 0 | 0 | 4.7 | 6.85 | 5.65 | 100±20 | |
| 76 | 101055-1 | 1.8 | 0.5 | 5 | 7 | 5.7 | 150±30 | |
| 77 | 101406-1 | 2.12 | 1.5 | 5.3 | 6.8 | 5.7 | 66±25 | |
| 78 | 101464-1 | 2.12 | 1.5 | 5.3 | 6.8 | 5.7 | 65±25 | |
| 79 | 101209-1 | 2.3 | 1 | 4.8 | 6.6 | 5.8 | 70±25 | |
| 80 | 101530-1 | 2 | 1 | 5.5 | 7.5 | 5.9 | 80±25 | |
| 81 | 101331-1 | 2 | 1 | 5 | 7 | 6 | 25±15 | |
| 82 | 101455-1 | 2 | 1 | 5 | 7 | 6 | 75±25 | |
| 83 | 101155-1 | 2 | 1 | 5.8 | 7.3 | 6.2 | 132±30 | |
| 84 | 101054-1 | 3 | 2 | 5.5 | 7.3 | 6.3 | 100 Min | |
| 85 | 101133-1 | 1.8 | 0.5 | 5 | 7.5 | 6.3 | 120±30 | |
| 86 | 101025-1 | 1.8 | 0.8 | 6.1 | 7.6 | 6.5 | 110±25 | |
| 87 | 101042-1 | 2.8 | 1.5 | 5.5 | 7.5 | 6.5 | 100+60/-20 | |
| 88 | 101048-1 | 3 | 2 | 5.5 | 8 | 6.5 | 150±30 | |
| 89 | 101057-1 | 2 | 1 | 5 | 7.3 | 6.5 | 190±30 | |
| 90 | 101063-1 | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 91 | 101066-1 | 2.5 | 2.5 | 5 | 7.5 | 6.5 | 130±30 | |
| 92 | 101166-1 | 1.8 | 0.5 | 5 | 7.5 | 6.5 | 70±20 | |
| 93 | 101325-1 | 2 | 0.5 | 5.6 | 8.1 | 6.6 | 70±25 | |
| 94 | 101069-1 | 1.8 | 0.8 | 6.1 | 7.9 | 6.7 | 100 Min | |
| 95 | 101102-1 | 2.12 | 1.5 | 5.9 | 7.9 | 6.7 | 90 Min | |
| 96 | 101036-1 | 2 | 1.5 | 6 | 8 | 6.9 | 110±30 | |
| 97 | 101067-1 | 2 | 1.5 | 6 | 8.5 | 7 | 140±30 | |
| 98 | 101230-1 | 2 | 1 | 5.8 | 7.8 | 7 | 120±30 | |
| 99 | 101740-1 | 2 | 0.5 | 5.5 | 8.5 | 7 | 80 Min | |
| 100 | 101020-1 | 2 | 1.9 | 6.5 | 8.5 | 7.15 | 168±25 | |
| 101 | 101146-1 | 1.8 | 0.8 | 6.1 | 8.6 | 7.2 | 90 Min | |
| 102 | 101125-1 | 2 | 1.5 | 6 | 8.8 | 7.45 | 100 Min | |
| 103 | 101043-1 | 2.8 | 1.5 | 6.6 | 8.6 | 7.5 | 110+60/-20 | |
| 104 | 101047-1 | 1.9 | 1.9 | 6.5 | 8.5 | 7.5 | 120+60/-20 | |
| 105 | 101268-1 | 2 | 1.9 | 6.5 | 8.5 | 7.5 | 90±35 | |
| 106 | 101148-1 | 2 | 1.9 | 6.5 | 9 | 7.6 | 115±30 | |
| 107 | 101147-1 | 2 | 1.6 | 7.2 | 9.2 | 7.8 | 125±25 | |
| 108 | 101041-1 | 2.8 | 1.5 | 7.3 | 9.3 | 8 | 120+60/-20 | |
| 109 | 101062-1 | 2 | 1.6 | 7.2 | 9 | 8 | 100±35 | |
| 110 | 101354-1 | 2 | 1.6 | 7.2 | 9.7 | 8.5 | 100 Min | |
| 111 | 101044-1 | 2.8 | 1.5 | 8 | 10 | 8.8 | 120+60/-20 | |
| 112 | 101014-1 | 2 | 1.6 | 7.2 | 10 | 9 | 100±25 | |
| 113 | 101045-1 | 2.8 | 1.5 | 8.5 | 10.5 | 9 | 120+60/-20 | |
| 114 | 101039-1 | 2.8 | 1.5 | 8.5 | 11.3 | 9.8 | 120 Min | |
| 115 | 101184-1 | 1.8 | 3 | 8 | 10.8 | 9.8 | 120 Min | |
| 116 | 101040-1 | 2.8 | 1.5 | 9.5 | 12.3 | 11.2 | 100 Min | |
| 117 | 20101011122 | 2 | 0.5 | 3.2 | 4.5 | 3.6 | 80 min | |
| 118 | 20101011180 | 2 | 0.6 | 3 | 4 | 3.2 | 100±30 | |
| 119 | 20101011506 | 1.8 | 0.4 | 6.1 | 7.8 | 6.8 | 70±15 | |
| 120 | 20101011424 | 1.9 | 0.4 | 2.4 | 3.2 | 2.75 | 50±10 | |
| 121 | 20101011608 | 1.9 | 0.5 | 3.6 | 4.9 | 3.9 | 110±25 | |
| 122 | 20101011800 | 2.6 | 1.8 | 5.25 | 6.55 | 5.8 | 80±15 | |
| 123 | 20101011801 | 2.6 | 1.8 | 5.25 | 6.55 | 5.8 | 110±20 | |
| 124 | 20101011257 | 2 | 0.4 | 1.85 | 2.5 | 2 | 50±10 | |
| 125 | 20101011258 | 2 | 0.4 | 2.2 | 3.2 | 2.35 | 50±10 | |
| 126 | 20101011274 | 1.5 | 0.4 | 2.4 | 3.2 | 2.8 | 70±20 | |
| 127 | 20101011345 | 1.9 | 0.5 | 3.4 | 4.8 | 4.1 | 150±30 | |
| 128 | 20101011346 | 1.9 | 0.5 | 4.2 | 5.6 | 5 | 80±20 | |
