3 pin arc pogo pin connector 5.2mm working height spring loaded pogo pins manufacturer

Description



3 pin pogo pin connector

3 pin arc pogo pin connector, working height 5.2mm, spring loaded pogo pins manufacturer.
Top-link Spring-Loaded pins provide a highly-reliable, precision made interconnect solution ideal for a number of demanding application requirements.



Drawing description

1 Materlal，Housing PA 4.6 (30% Glass Filled)
    Color Black.
    Contacti Brass
2 Mechanical demands
    Plating Plunger: Min 0.4Um Au over 1.4um Ni
    Plating Body: Min 0.1Um Au over 1.4um
3 Mechanical
    1)Total stroke : 1.0mm
    2)Durability: 10,000 cycle min.
4 Electrica
    1)Contact resistance: 30mOhm Max.
    2)Operating voltage: 36VDC

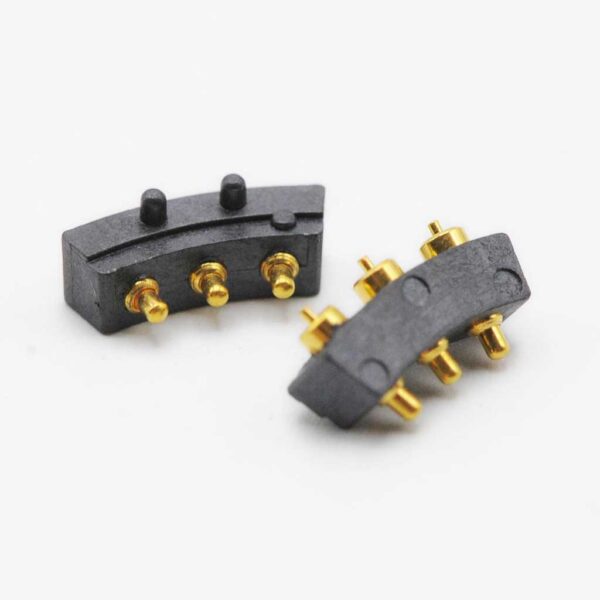

Product Image
