Pogo Pin Single Contact, 13.80mm Working height, Withstanding High Temperature: 260°C

high temperature pogo pin pogo pin contact pogo pin High voltage pogo pins

Pogo Pin Single Contact, 13.80mm Working height, Withstanding High Temperature: 260°C

$3.25

161686 in stock

  • Working Height
    13.80 mm
  • Operating Temperature
    -55°C ~ +125°C
  • Force
    800 gf Max

Description

Pogo Pin Single Contact

Notes:
1、Dimensions shall be interpreted per ASME Y14.5M
2、Mechanical performance(See the table 1)
  2.1, The force is the average of forces obtained when plunger goes downwards and upwards unless other specified.
  2.2, Warning: Working height is not permitted to be less than minimum working height.
3、Electrical performance
  3.1, Current rating: 1.0A
  3.2, Voltage rating: 335V vrms
  3.3, Dynamic Resistance: 10 Ohm Max
4、Environmental performance
  4.1, RoHS compliant
  4.2, Operating Temperature range:-55°C~+125°C
  4.3, Withstanding High Temperature: 260°C/10Sec 3 cycles.
5、Packaging: Bag



Table 1:
Mechanical performance(Limit compression height<13.70mm)
Minimum. Working Height (Downward Force) 13.8mm 800gf Max.
Minimum. Working Height (Upward Force) 13.8mm 600gf Max.
Max. Working Height (Upward force) 15.8mm 150gf Max.
Durability 500 Cycles Min.

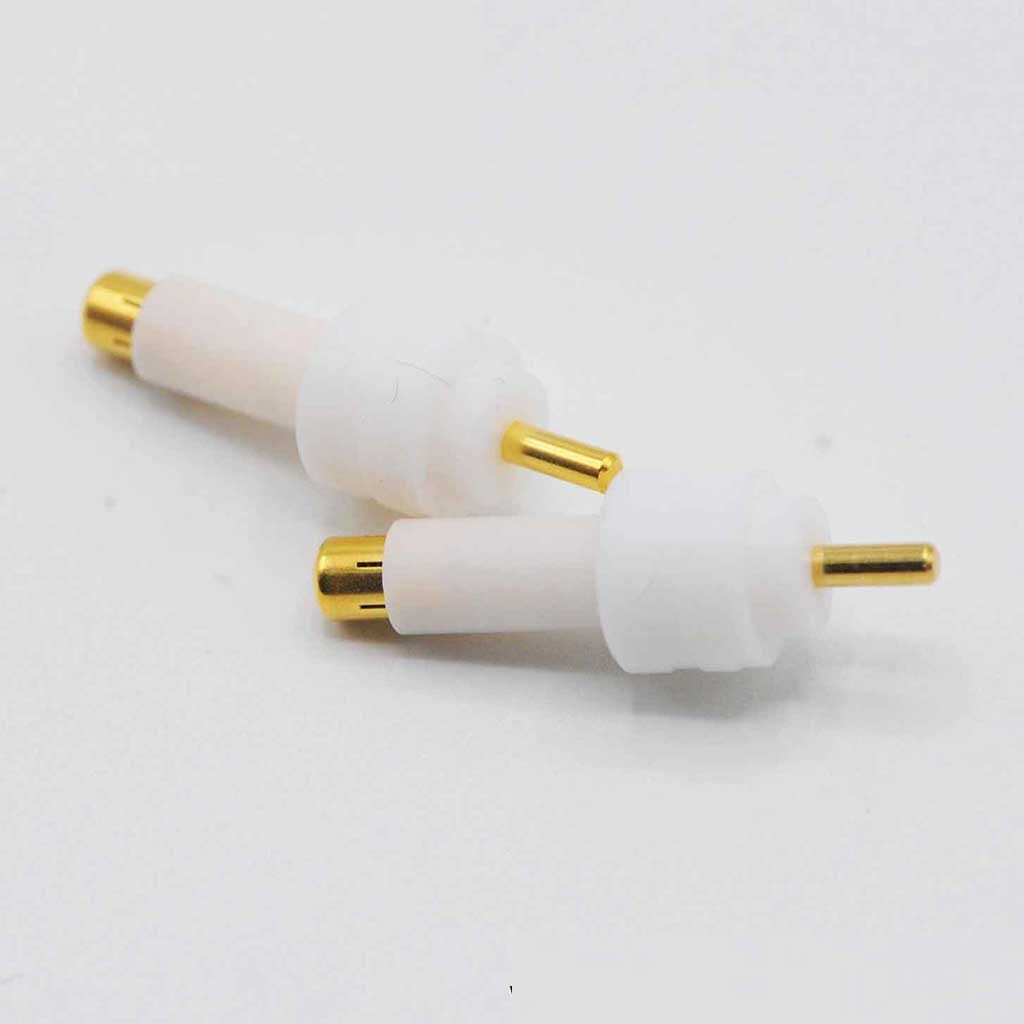

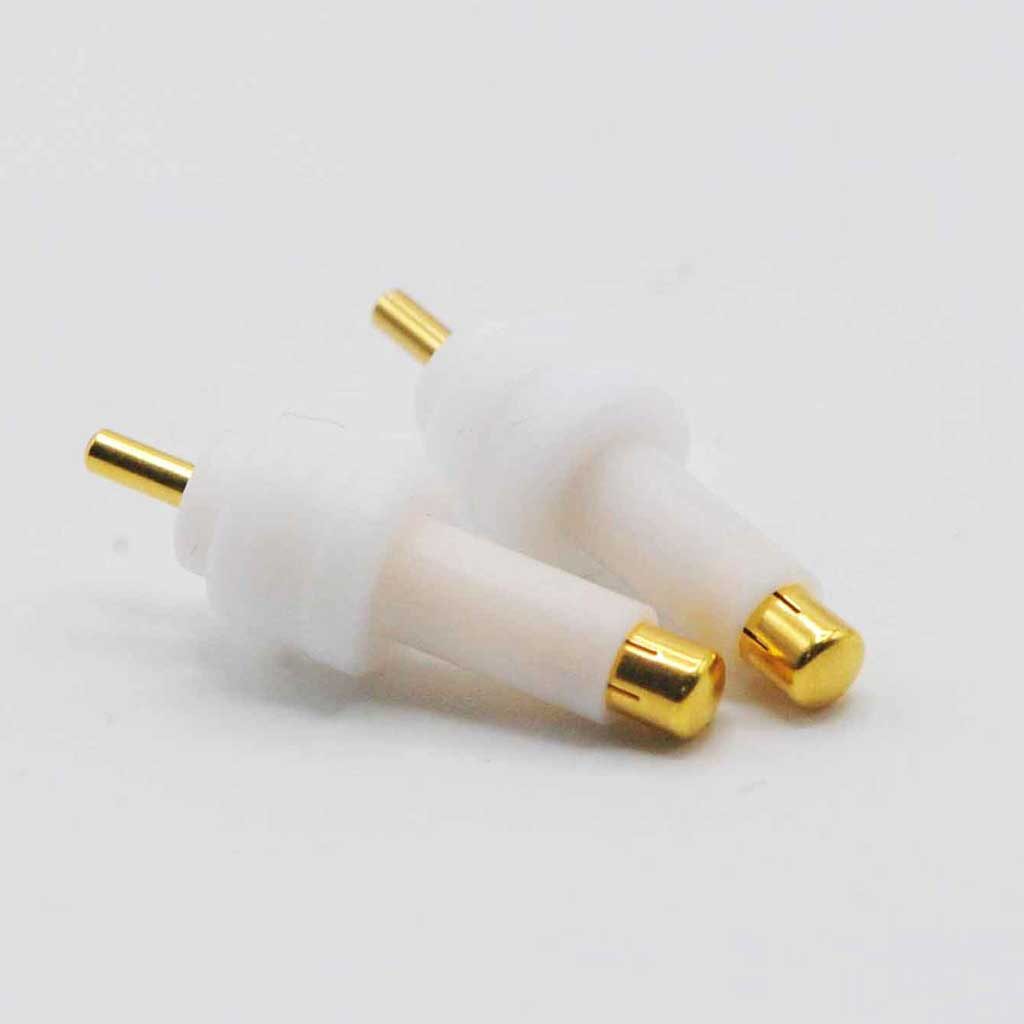

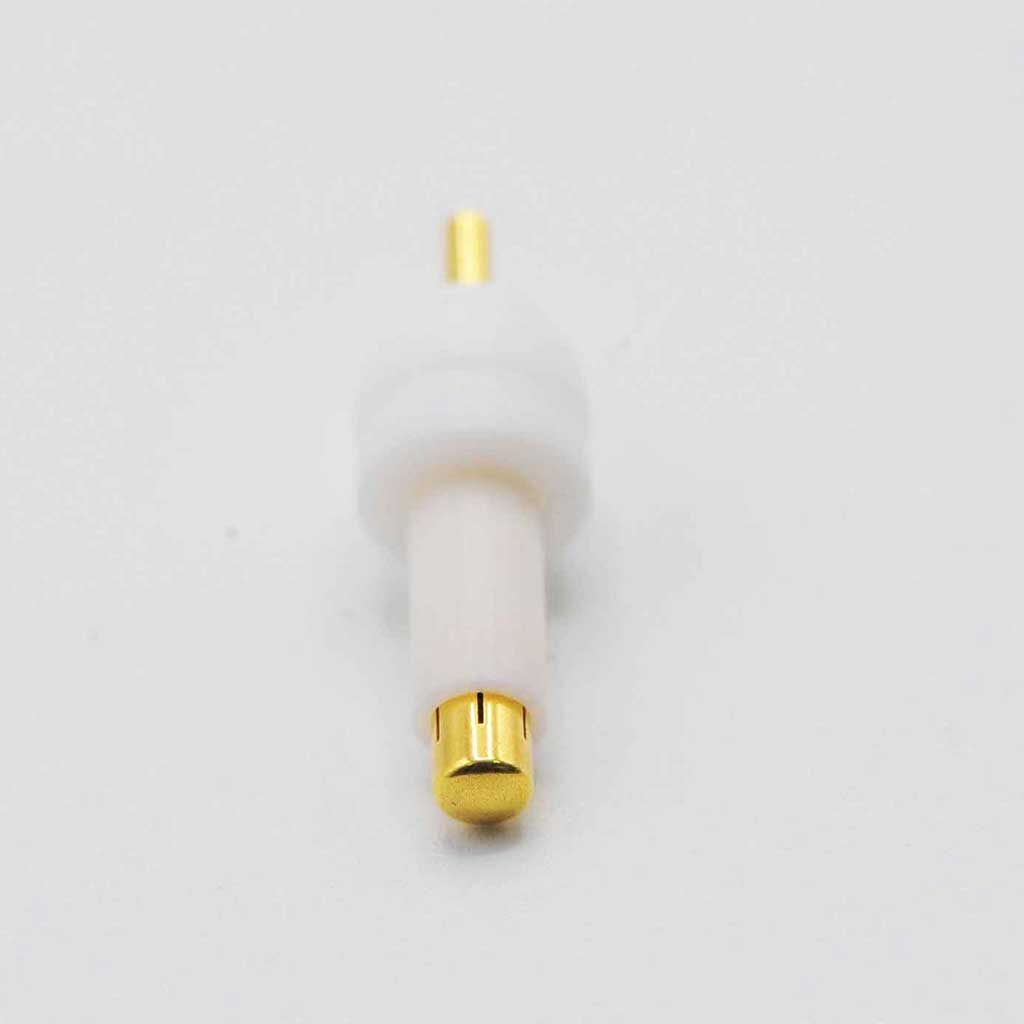

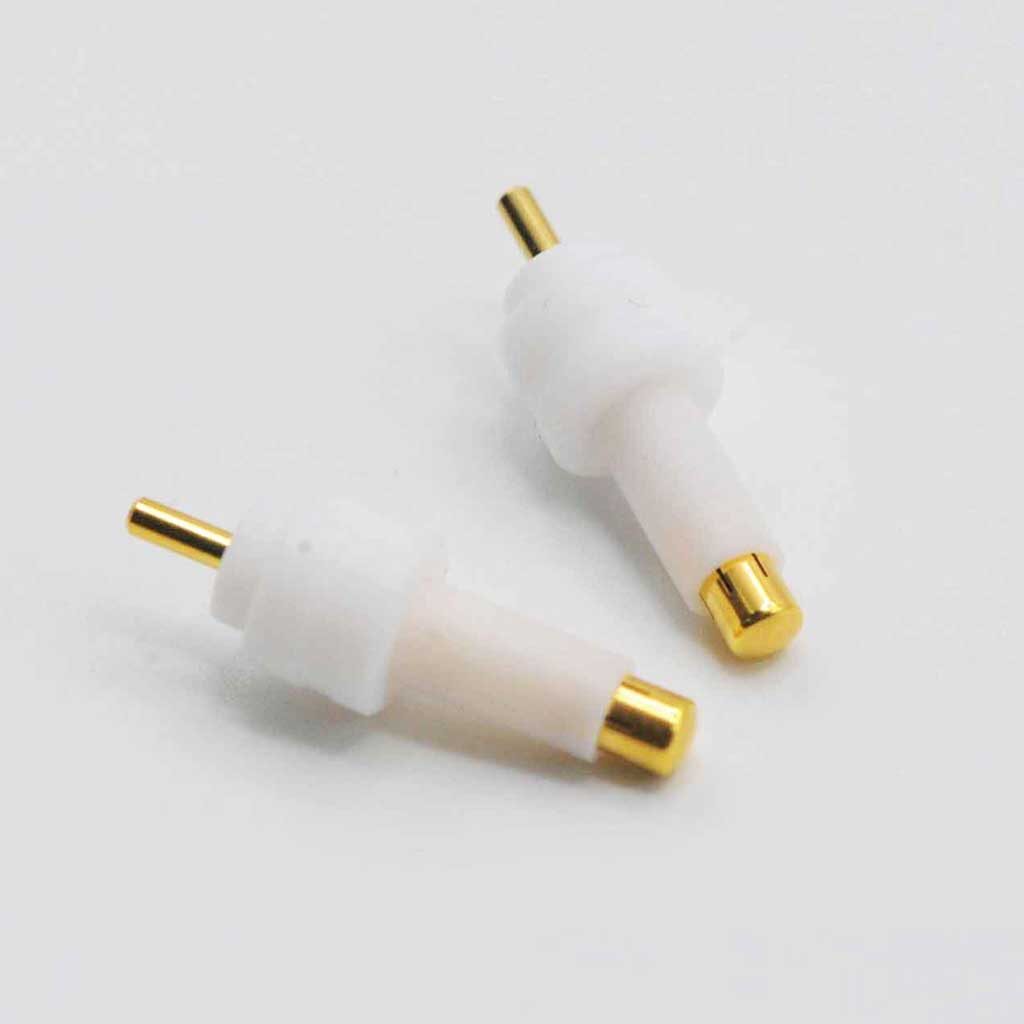

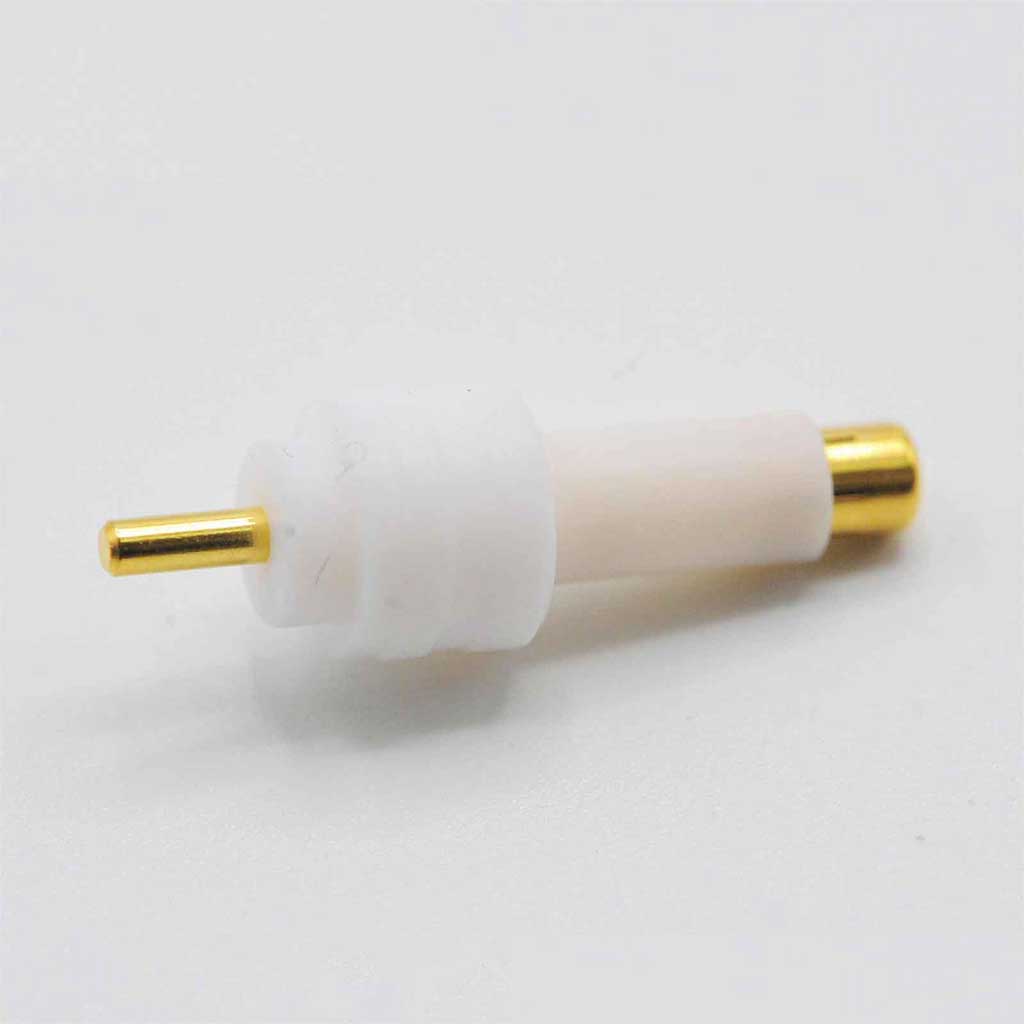

Product Photo:
pogo pin connector
pogo pin connector
pogo pin
pogo pin
pogo pin contact
pogo pin contact
high temperature pogo pin
high temperature pogo pin
High voltage pogo pins
High voltage pogo pins

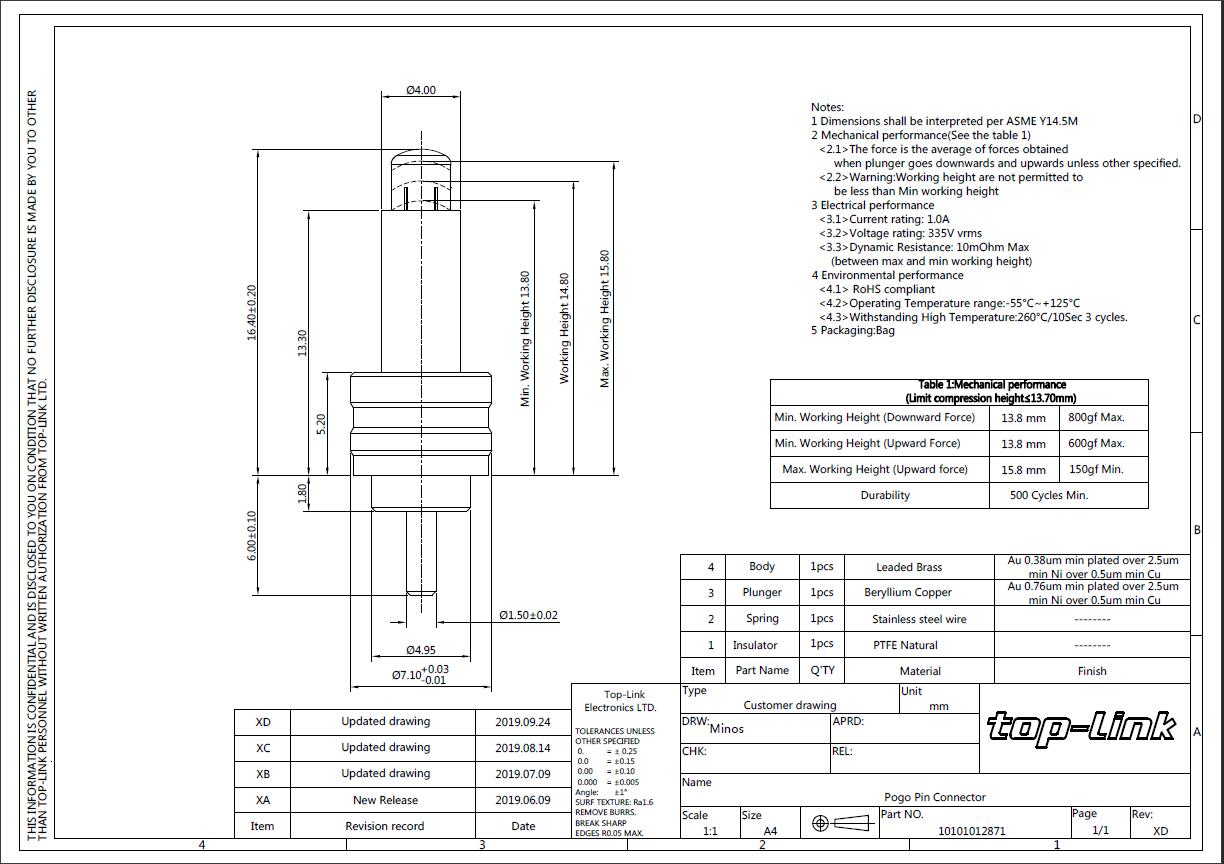

Drawings

high temperature pogo pin 23000124

Drawing download 110       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “Pogo Pin Single Contact, 13.80mm Working height, Withstanding High Temperature: 260°C”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Height, 13.80 mm, Operating Temperature, -55°C ~ +125°C, Withstanding High Temperature, 260°C/10 Sec 3 cycles, Durability, 500 Cycles min, Lead Time, 25 Days, Rated Current, 1 A, Rated Voltage, 335V, Force, 800 gf Max
