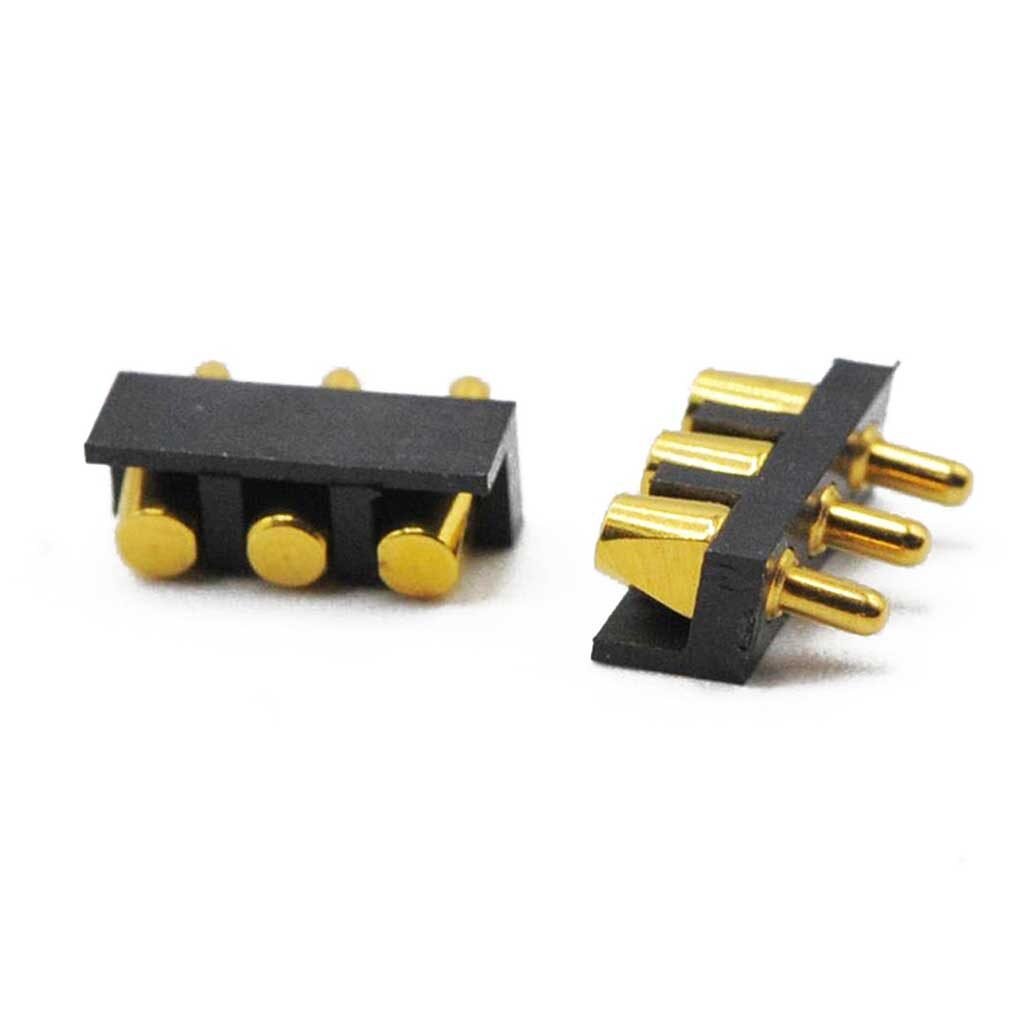

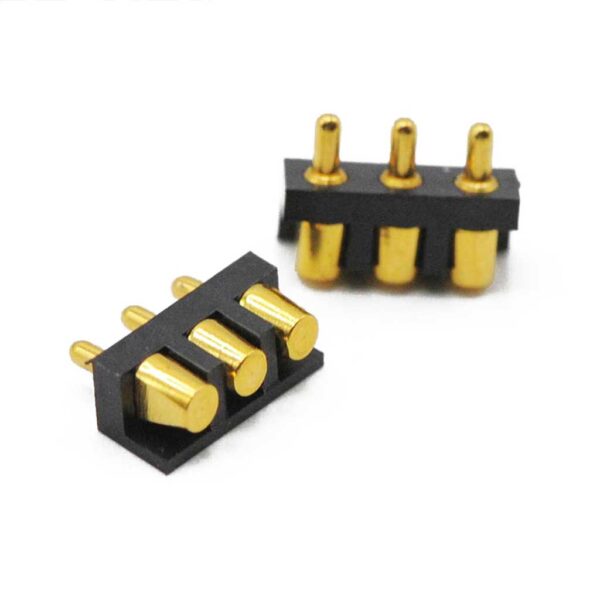

3 pin pogo pin connector, side mount, 1.0mm working height

3 pin pogo pin connector side mount pogo pin 3 pin pogo pin pogo pin connector side mount pogo pin connector

3 pin pogo pin connector, side mount, 1.0mm working height

$0.72

4978 in stock

  • Working Stroke
    1.00 mm
  • Pin Amount
    3 Pins
  • Force
    130 ±25 gf

Description

3 pin pogo pin connector

Notes:

1, Material,Housing: PA 4.6 (30% Glass Filled), Color Black.(UL94V-0)
    Contact: Brass

2, Mechanical demands:
    Spring force: 130 ±25 gf with 1.0mm stroke.
    Full stroke:1.5mm
    Plating plunger: Min 0.4um Au over 1.4um Ni
    Plating body: Min 0.1um Au over 1.4um

side mount pogo pin connector
side mount pogo pin connector

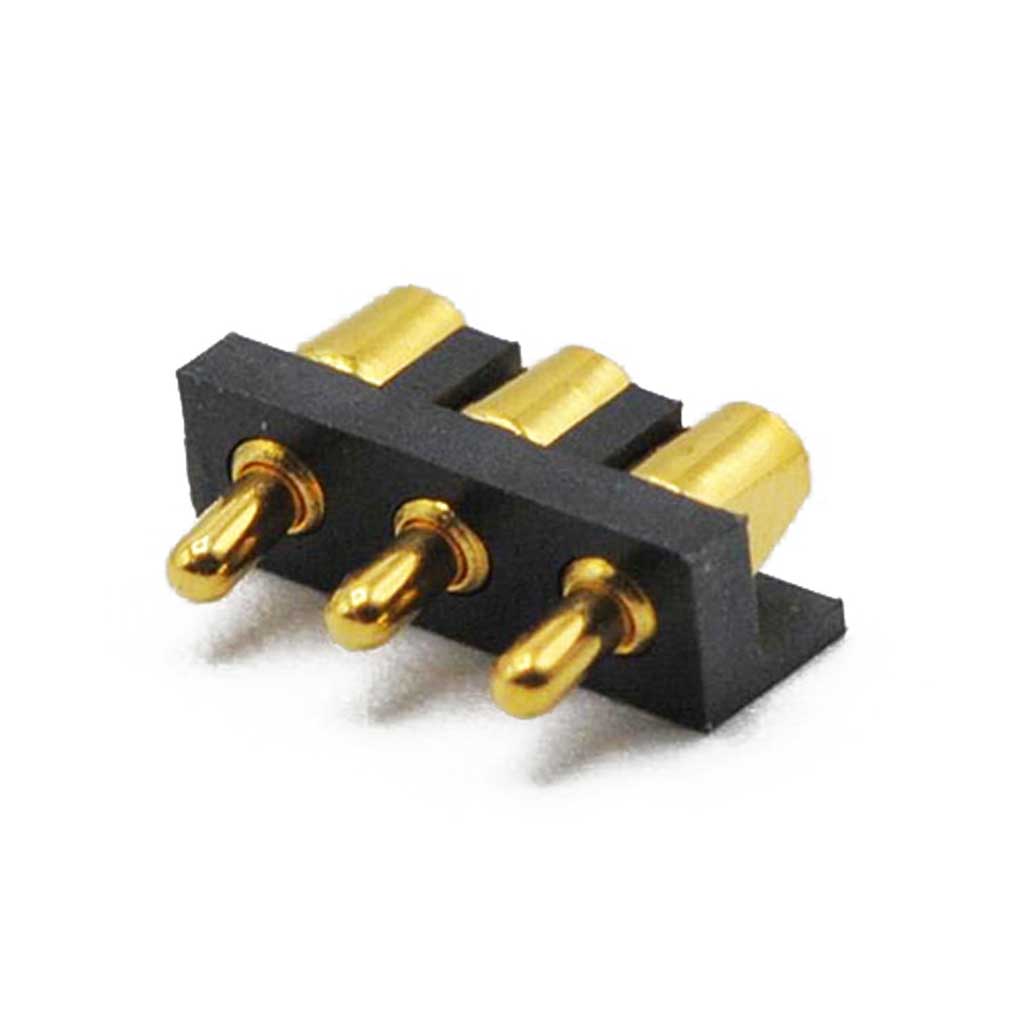

pogo pin connector
pogo pin connector
3 pin pogo pin connector
3 pin pogo pin connector

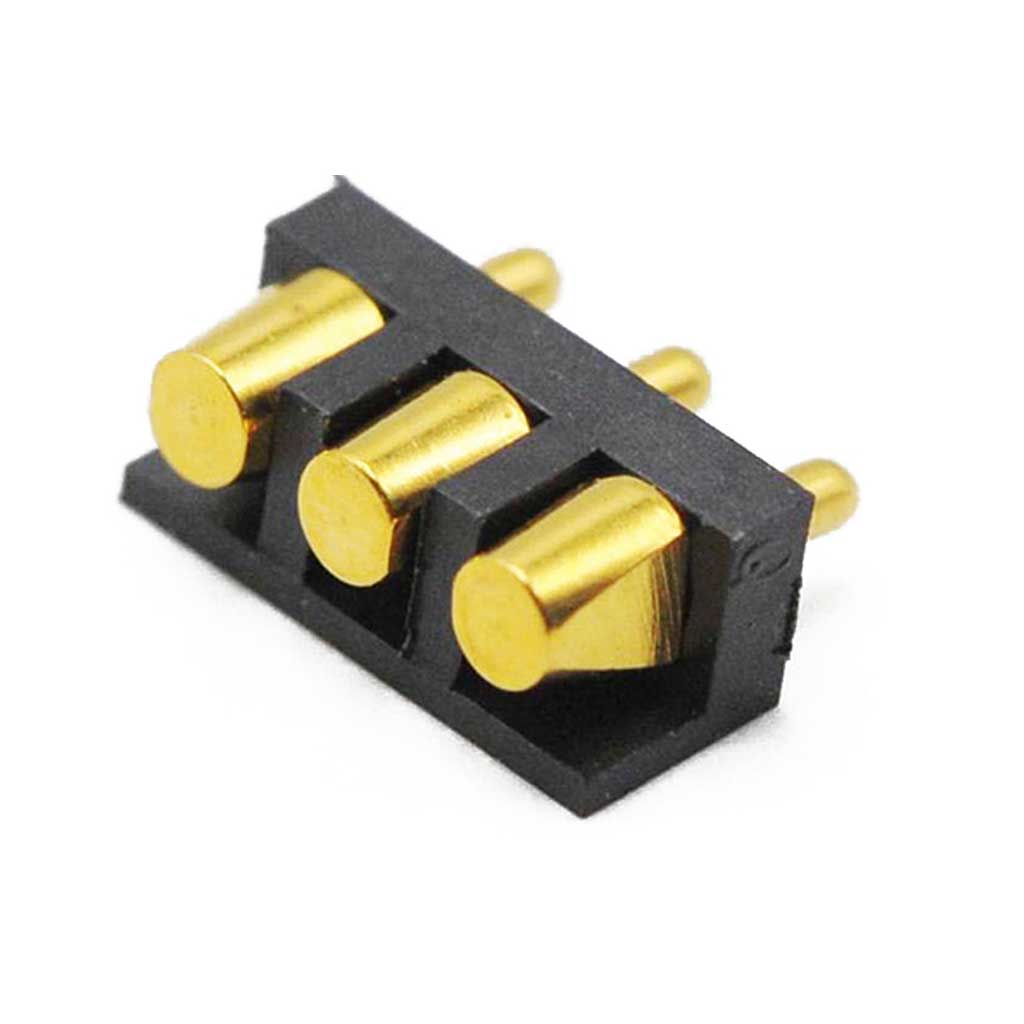

3 pin pogo pin
3 pin pogo pin
side mount pogo pin
side mount pogo pin

Drawings

3 pin pogo pin drawing
3 pin pogo pin drawing

Drawing download 85       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “3 pin pogo pin connector, side mount, 1.0mm working height”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 1.00 mm, Pin Amount, 3 Pins, Pitch, 2.50 mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2 A, Rated Voltage, 36 V, Force, 130 ±25 gf
