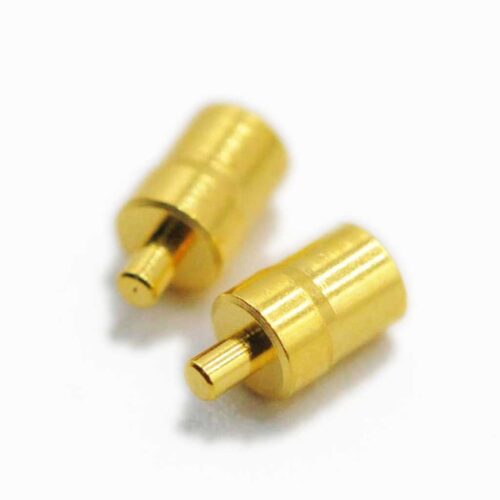

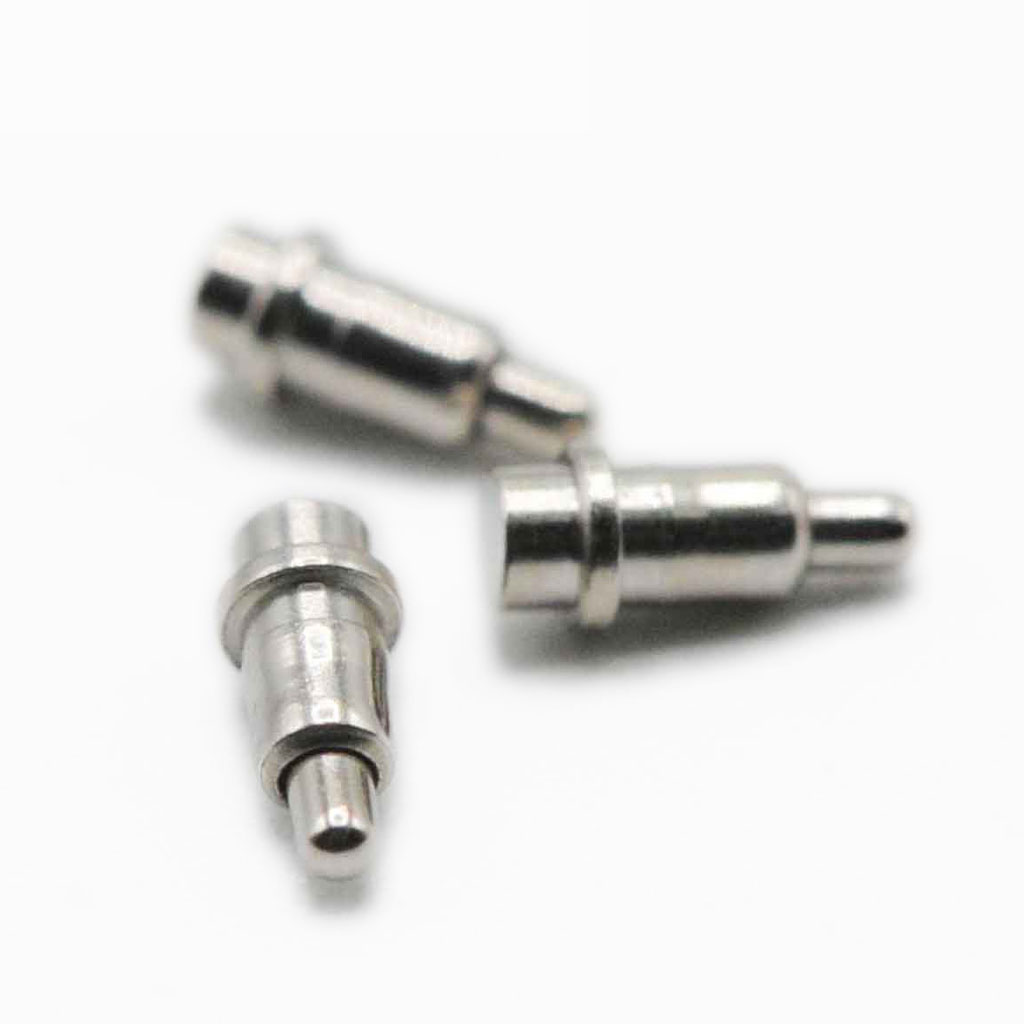

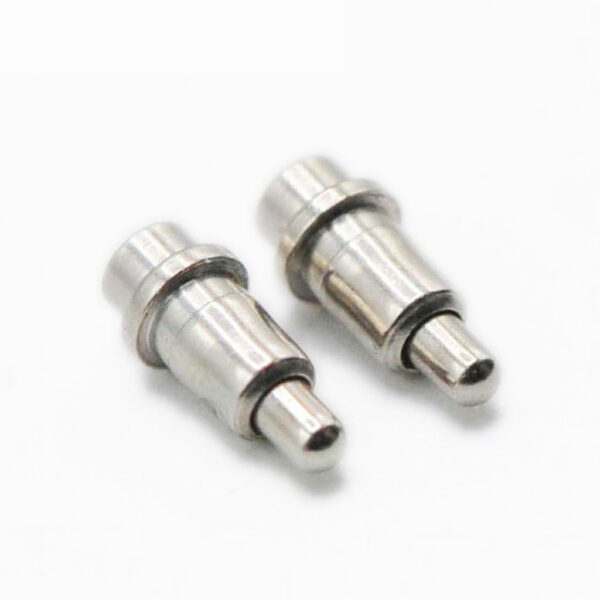

short pogo pins, Working Height 3.0mm, spring loaded probe

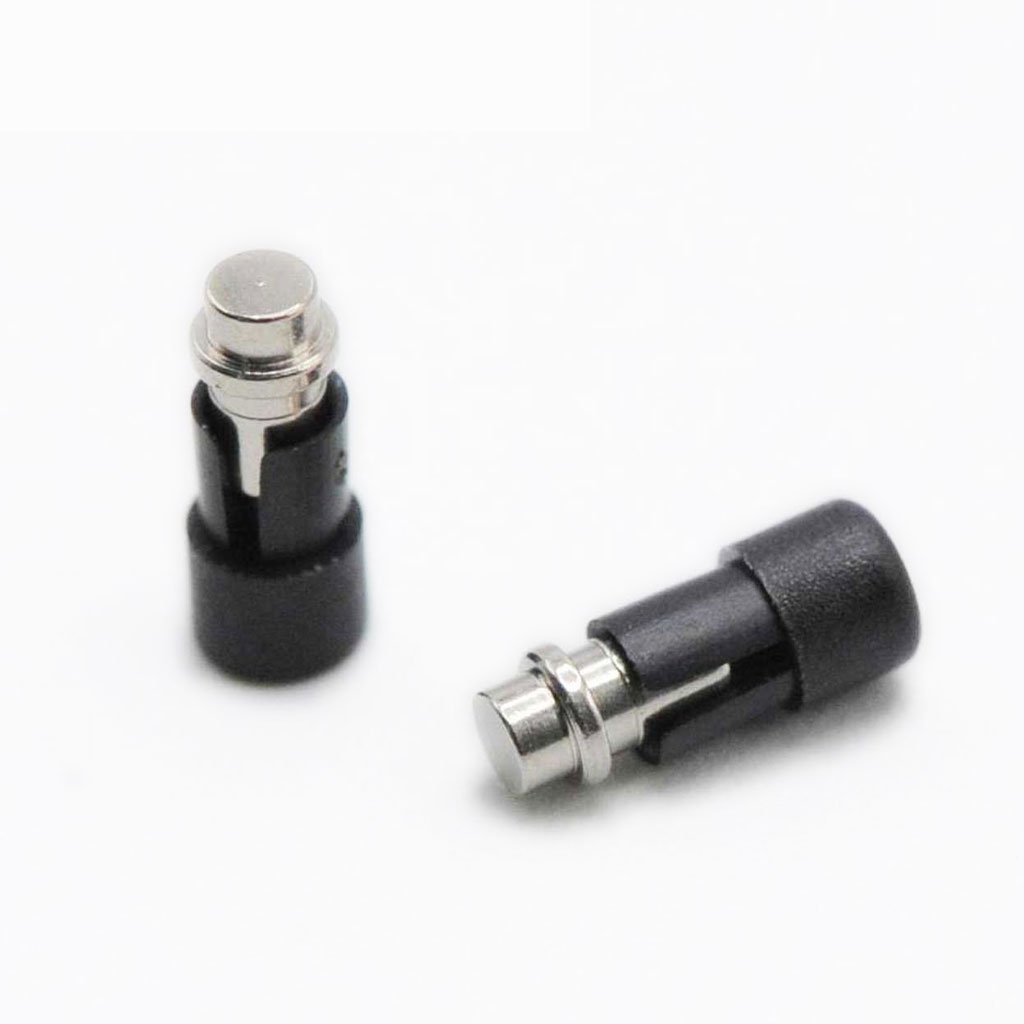

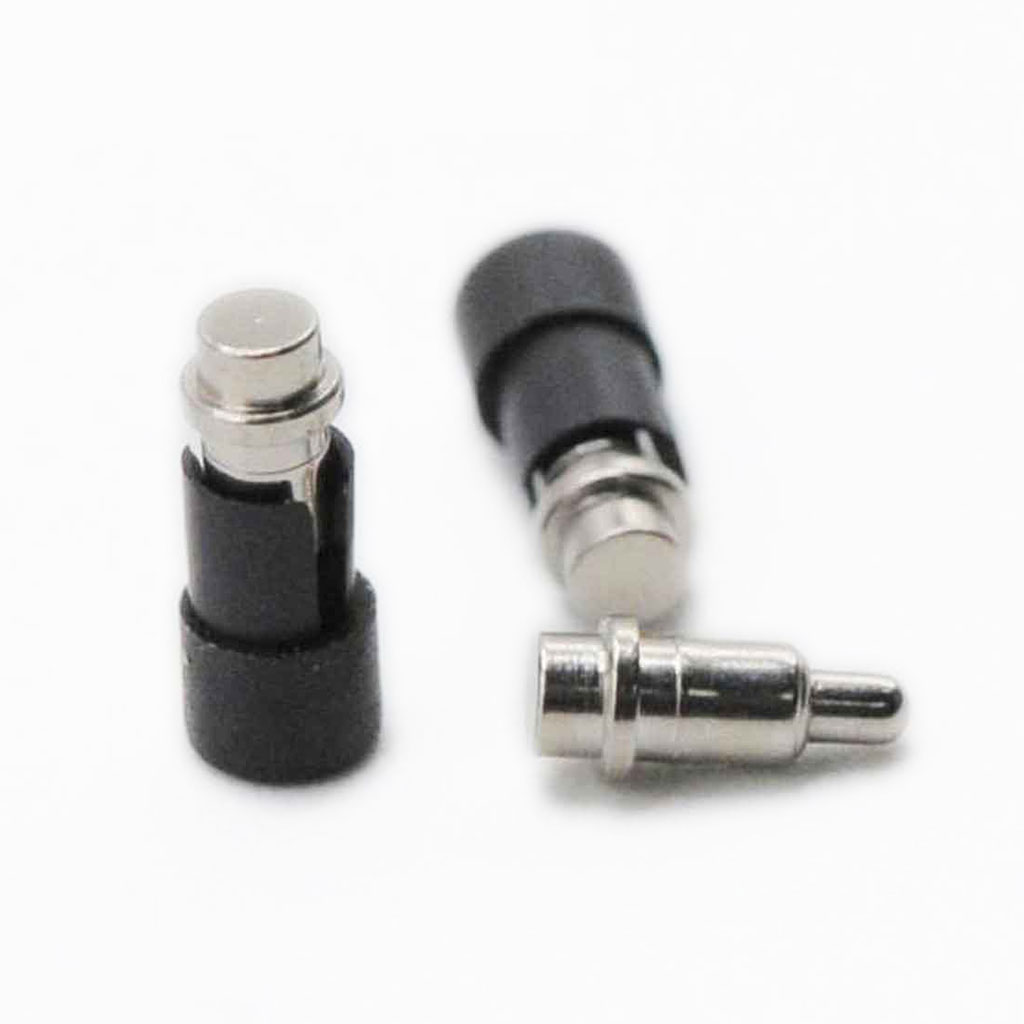

pogo pins short pogo pins pogo pins catalog pogo pin connector

short pogo pins, Working Height 3.0mm, spring loaded probe

$0.59

  • Working Stroke
    3.00 mm
  • Pin Amount
    1 Pins
  • Force
    60土20gf

Description


short pogo pins, Working Height 3.0mm, spring loaded probe


Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrica performance
    <3.1>Current rating:1.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Contact Resistance:50mOhm Max
4 Environmentaperformance
    <4.1>RoHS compliant
    <4.2>Operating Temperature range:-40C~+85°C
    <4.3>Withstanding Higt Temperature:260·C/10Sec
5 Packaging:Carrier tape

Drawings

pogo pins drawings
pogo pins drawings

Drawing download 109       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “short pogo pins, Working Height 3.0mm, spring loaded probe”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 3.00 mm, Pin Amount, 1 Pins, Pitch, 0 mm, Durability, 1000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 60土20gf
