5 pin pogo pin contacts, working height 3.50mm, pitch 2.54mm

5 pin pogo pin contacts 2.5mm pitch pogo pin connector pogo pin connector 5 pin pogo pin connector pogo pin contacts

5 pin pogo pin contacts, working height 3.50mm, pitch 2.54mm

$1.41

154 in stock

  • working height
    3.50mm
  • pitch
    2.54mm
  • Force
    80gf~180gf

Description


5 pin pogo pin contacts, working height 3.50mm, pitch 2.54mm

5 pin pogo pin contacts currently only have more than 100 samples in stock, the standard current is 2.5A, the voltage is 36V dc, customized higher current and voltage, waterproof design is available, welcome to contact us to customize products that meet your needs, and inquire now.
More specifications can be found in the 5 pin pogo pin contacts product selection table

Notes:
1 Dimensions shall be interpreted per ASME Y14.5M.
2 Mechanical performance(See the table 1)
    <2.1> The force is the average of forces obtained when plunger goes downwards and upwards.
    <2.2> Warning:Working height are not permitted to be lessthan Min working height.
3 Electrical performance
    <3.1> Insulation Resistance:1,000MOhm minimum
    <3.2> Dielectric Withstand Voltage:500VAC/minute
    <3.3> Dynamic Resistance:30mOhm Max.(between max and min working height)
    <3.4> Current rating: 2.5A
4 Packaging specification conforms to EIA 4814
5 Working temperature
    <5.1> Withstanding Higt Temperature: 270C
    <5.2> Operationa Temperature:-40C~+85C
6 RoHS compliant.

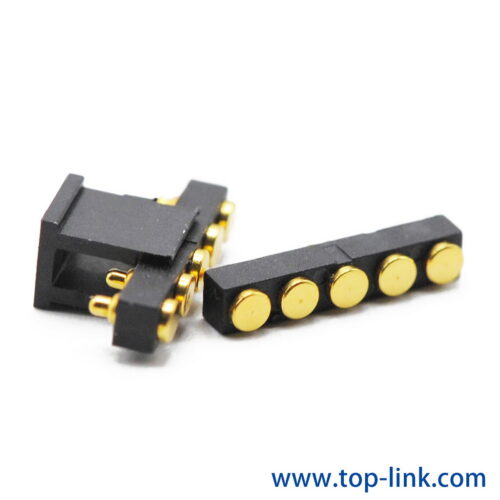

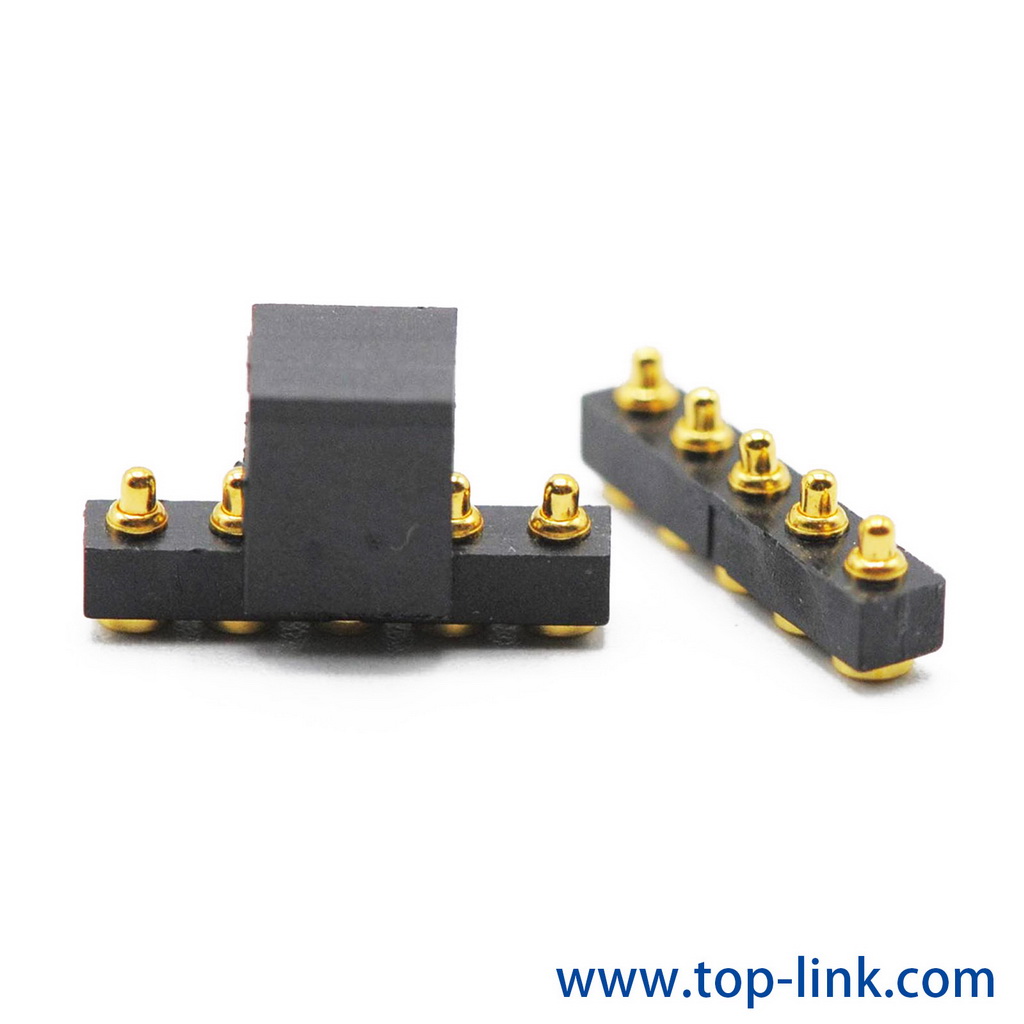

physical photos:
2.5mm pitch pogo pin connector
2.5mm pitch pogo pin connector
pogo pin connector
pogo pin connector
5 pin pogo pin contacts
5 pin pogo pin contacts
5 pin pogo pin connector
5 pin pogo pin connector
pogo pin contacts
pogo pin contacts

Drawings

5 pin pogo pin contacts drawing
5 pin pogo pin contacts drawing

Drawing download 133       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “5 pin pogo pin contacts, working height 3.50mm, pitch 2.54mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 3.50mm, pitch, 2.54mm, Pin Amount, 5 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 80gf~180gf
