ultra-thin 4-pin micro pogo pin connector, side-entry connector

ultra-thin 4-pin micro pogo pin connector 4-pin micro pogo pin connector micro pogo pin connector pogo-pin connector 4-pin pogo-pin connector

ultra-thin 4-pin micro pogo pin connector, side-entry connector

$0.89

100 in stock

  • Working stroke
    0.7 mm
  • Pitch
    2.5 mm
  • Force
    100 ±35gf

Description

4-pin micro pogo pin connector Manufacturer’s stock



ultra-thin side-entry connector, 4-pin micro pogo pin connector. High power and high current connectors can be customized. Pogo pin connection modules can be designed to reduce product verification time, shorten your product development cycle, and reduce product development risks.contact us now



Drawing description


1 Demensions shall be interpreted per ASME Y14.5M-1994
2 Mechanical performance(See the table 2)
    <2.1>The force is the average of forces obtained when plungergoes aownwards and upwards.
    <2.2>Warning:Working height are not permitted to be lessthan Min working height.
3 Electrica performance
    Resistance:30mOhm Max.
    Current:2A DC
4 Packaging Spec
5 RoHS compliant.

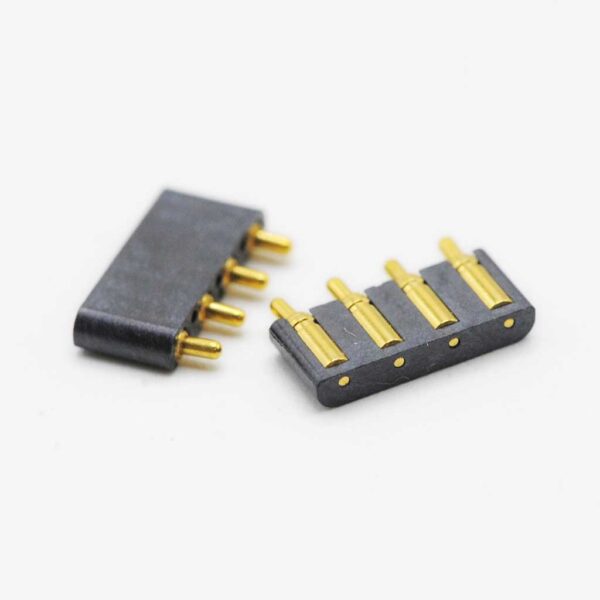

Product Image


ultra-thin 4-pin micro pogo pin connector,
ultra-thin 4-pin micro pogo pin connector,
4-pin pogo-pin connector
4-pin pogo-pin connector
pogo-pin connector
pogo-pin connector
micro pogo pin connector
micro pogo pin connector
4-pin micro pogo pin connector
4-pin micro pogo pin connector

Drawings

ultra-thin 4-pin micro pogo pin connector drawing
ultra-thin 4-pin micro pogo pin connector drawing

Drawing download 80       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “ultra-thin 4-pin micro pogo pin connector, side-entry connector”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working stroke, 0.7 mm, Pitch, 2.5 mm, Pin Amount, 4 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, 100 ±35gf
