smt pogo pin connector 2 point pitch 3.0mm working height 2.5mm

smt pogo pin connector 2 point smt pogo pin connector 2 point pogo pin connector pogo pin connector

smt pogo pin connector 2 point pitch 3.0mm working height 2.5mm

$0.62

461 in stock

  • working height
    2.5mm
  • DiameterΦ
    1.50mm
  • Force
    90 ±10gf

Description



2 points smt pogo pin connector working height 2.5mm, pitch 3.0mm, Durability 10000cycle.
It is suitable for products with relatively limited space and can be customized for waterproof, high current (standard current is 2A), or special electroplating treatment, such as anti-electrolysis, and salt spray resistance, and meets environmental protection requirements. Contact us for product brochures or samples.



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
<2.1>The force is the average of forces obtained when the plunger goes downwards and upwards.
<2.2>Tota stroke:0.7mm
3 Electrical performanceResistance:30mOhm Max.Current rating: 2.0A
4 Packaging Spec.Conformance to ElA 481
5 RoHS compliant.

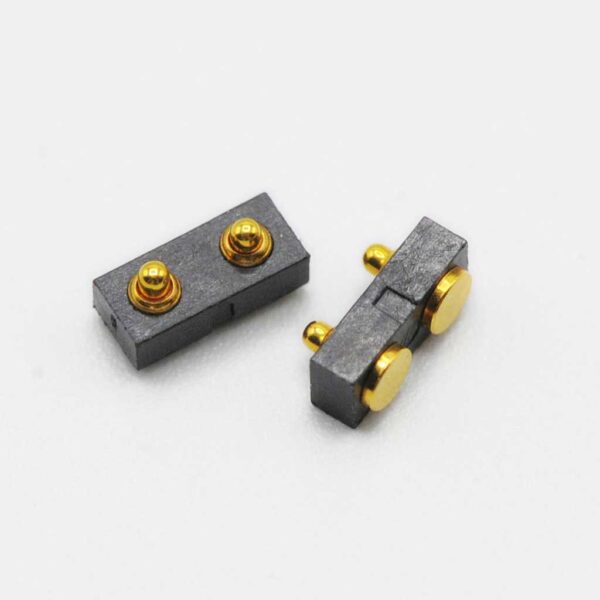

Product Image

waterproof pogo pin connector
waterproof pogo pin connector
pogo pin connector
pogo pin connector
smt pogo pin connector
smt pogo pin connector
smt pogo pin connector 2 point
smt pogo pin connector 2 point
2 point pogo pin connector
2 point pogo pin connector

Drawings

2 point pogo pin connector drawing
2 point pogo pin connector drawing

Drawing download 111       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “smt pogo pin connector 2 point pitch 3.0mm working height 2.5mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 2.5mm, DiameterΦ, 1.50mm, Pin Amount, 2 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 90 ±10gf
