pogo pin, 2.15mm spring probe , 9.5mm working height

spring probe Spring Probe 2.15mm Pogo Pin Connector

pogo pin, 2.15mm spring probe , 9.5mm working height

$0.24

  • Working Stroke
    9.50 mm
  • Pin Amount
    1 Pins
  • Force
    50gf ~ 410gf
SKU: 20101013015 Category: , Tags: 9.5mm working height,pogo pin,spring probe,

Description

pogo pin, 2.15mm spring probe , 9.5mm working height

Notes:

1, Dimensions shall be interpreted per ASME Y14.5M

2, Mechanical demands:
    Max Working Height: 11.5mm. 50gf Min.(Upward)
    Min. Working Height: 9.50mm. 410gf Max.(Downward)
    Durability: 500 Cycles Min.

3, Electrical pertormance     Current rating: 1.0A
    sVoltage rating: 36VAC/DC
    Static Resistance:6mOhm Max, AR<10mOhm;

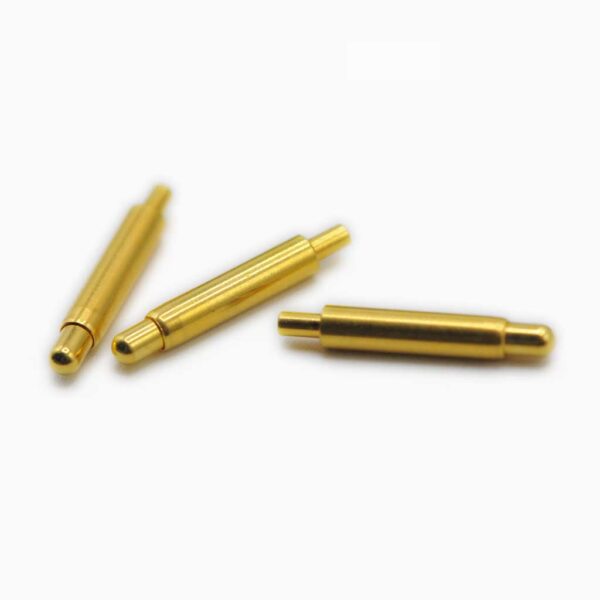

spring probe
spring probe

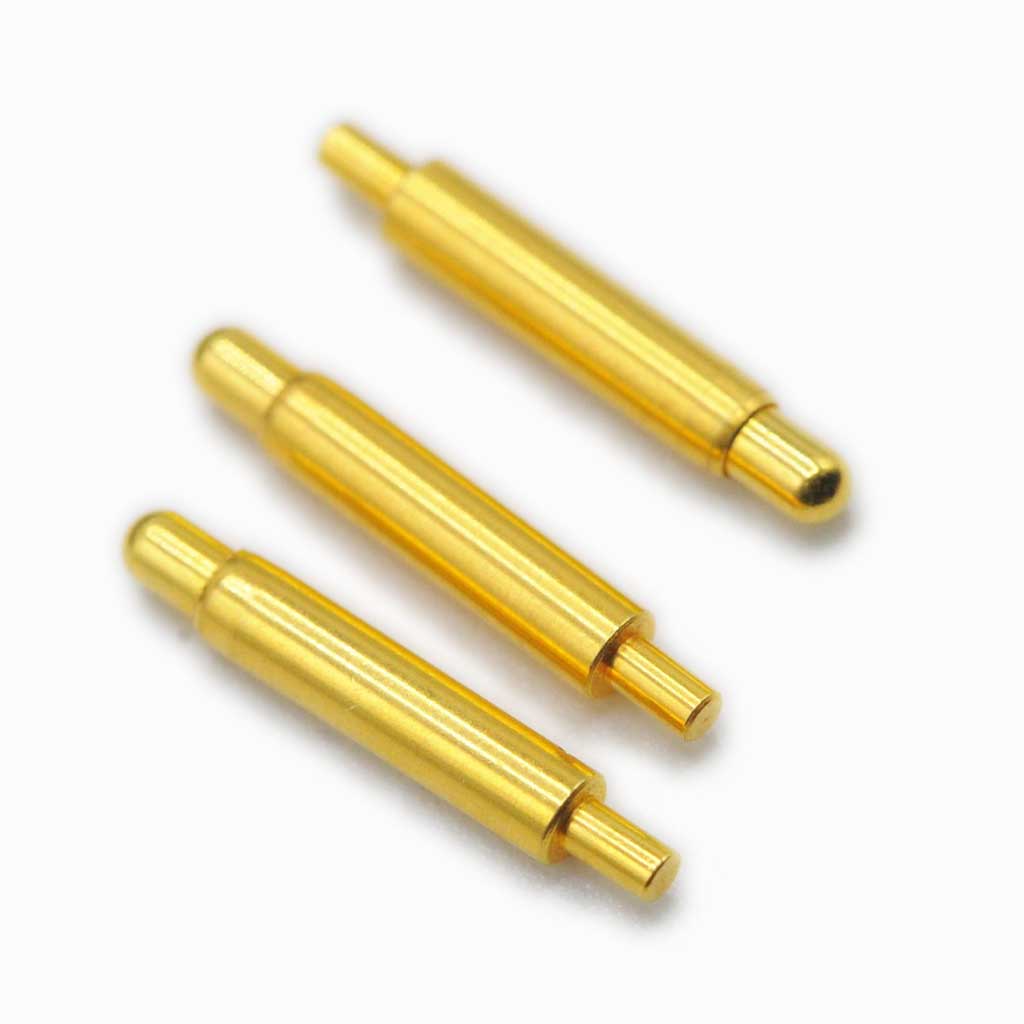

Spring Probe
Spring Probe
2.15mm Pogo Pin Connector
2.15mm Pogo Pin Connector

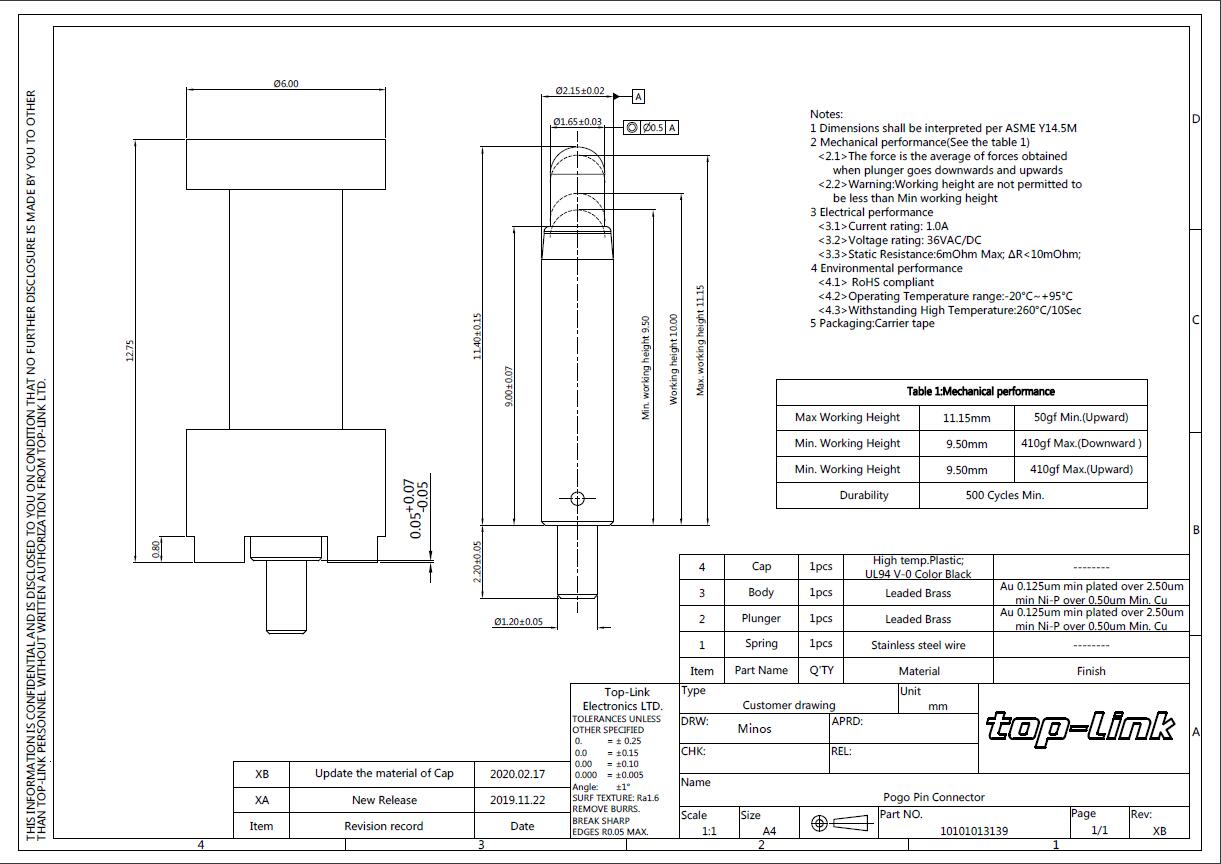

Drawings

Pogo Pin Spring Probe
Pogo Pin Spring Probe

Drawing download 78       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “pogo pin, 2.15mm spring probe , 9.5mm working height”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 9.50 mm, Pin Amount, 1 Pins, Pitch, 0 mm, Durability, 500 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, 50gf ~ 410gf
