Plug-in Pogo Pins, Spring Loaded Contacts, Work height 6.8mm

$0.43

  • Working Stroke
    6.70 mm
  • Pin Amount
    1 Pins
  • Force
    50 ±10 gf

Description


Plug-in Pogo Pins, Spring Loaded Contacts, Work height 6.8mm


Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the qverage of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Salt Spray: 48h Min
    <4.3>Operating Temperature range:-40C~+85C
    <4.4>Withstanding High Temperature:260C/10Sec
5 Packaging:Carrier tape



Product Photo
Plug-in Pogo Pins
Plug-in Pogo Pins

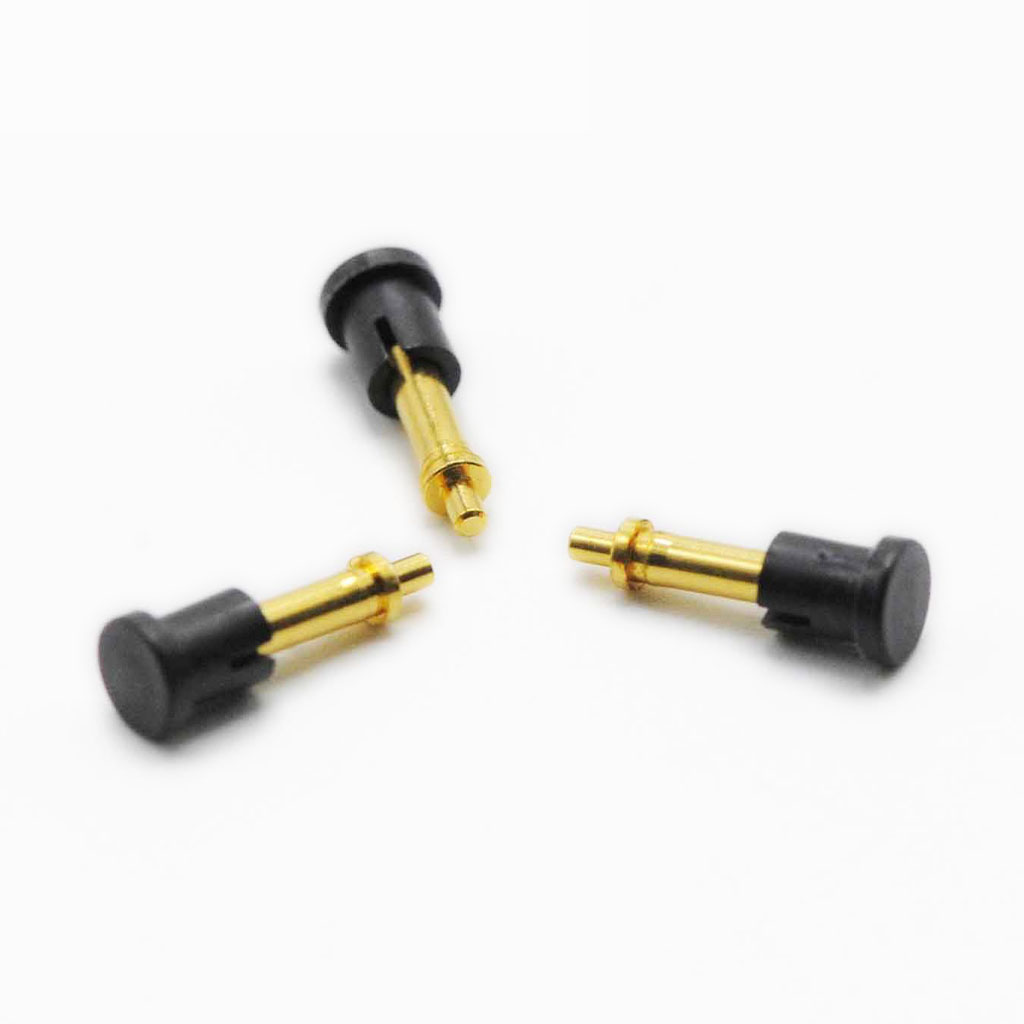

high current pogo pins
high current pogo pins

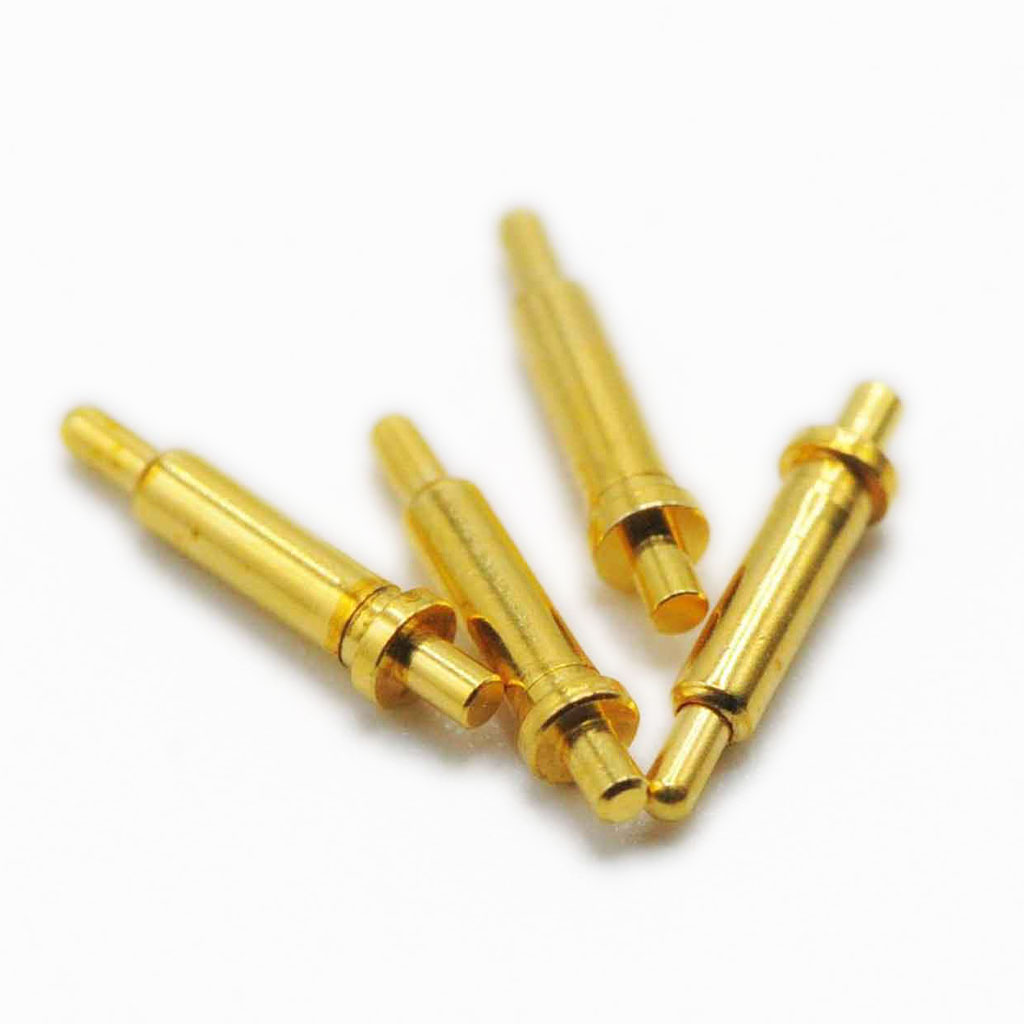

pogo pin current rating
pogo pin current rating
pogo pin
pogo pin

Drawings

pogo pin 10101012059
pogo pin 10101012059

Drawing download 97       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “Plug-in Pogo Pins, Spring Loaded Contacts, Work height 6.8mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 6.70 mm, Pin Amount, 1 Pins, Pitch, 0 mm, Durability, 1000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 50 ±10 gf
