Micro Pogo Pins, DiameterΦ 1.25mm, Working Height 3.30mm

Description

Micro Pogo Pins, DiameterΦ 1.25mm, Working Height 3.30mm

Notes:

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 1.0A
    <3.2>Voltage rating: 12VAC/DC
    <3.3>Contact Resistance:50mOhm MaxAt working Height for 3.30mm
4 Environmental performance
    <4.1> ROHS/Reach/CP65 compliant
    <4.2> Salt Spray: 96H Min
    <4.3> Artificial Sweat: 96H Min
    <4.4>Operating Temperature range:-40°C~+85°C
    <4.5>Withstanding High Temperature:260°C/10Sec
5 Packaging:Carrier tape

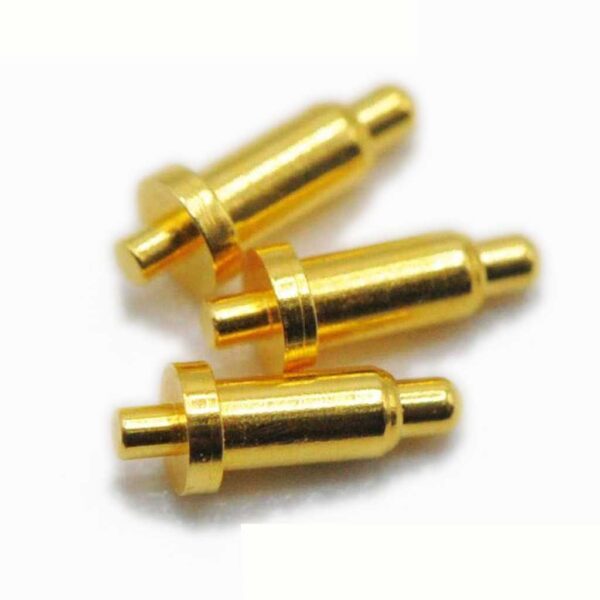

physical photos
