female pogo pins 4 pin 2.5 mm pitch

female pogo pins 4 pin female pogo pins female pogo pin female pogo pin connector pogo pin female contact

female pogo pins 4 pin 2.5 mm pitch

$0.97

100 in stock

  • Work Height
    none
  • Outer Diameter
    1.5 mm
  • Force
    none
SKU: 23000776 Category: , Tags: female pogo pins,pogo pins,

Description



female pogo pins 4 pin
4 pin female pogo pin connector pitch 2.5 mm
Spring-Loaded pins provide a highly-reliable, precision made interconnect solution ideal for a number of demanding application requirements.

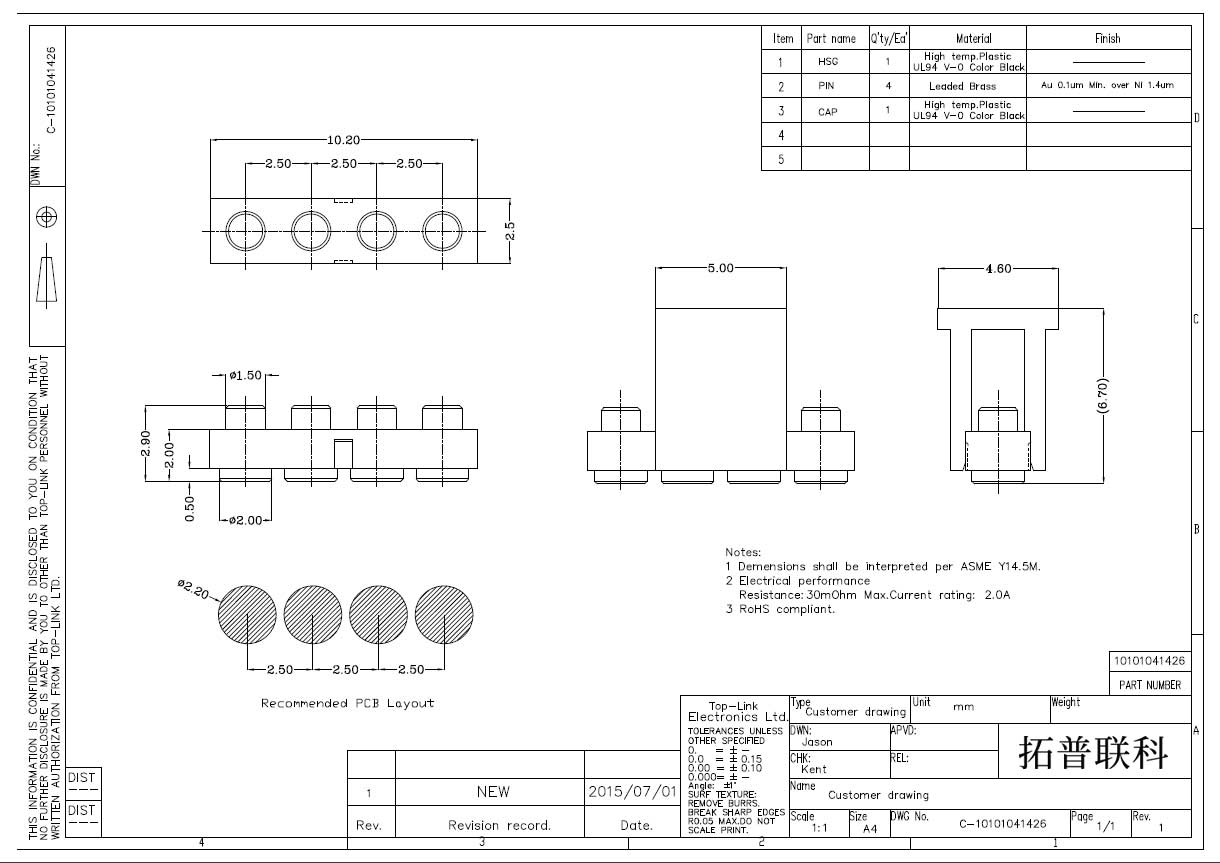

Drawing description

1 Demensions shall be interpreted per ASME Y14.5M.
2 Electrical performance
    Resistance:30mOhm Max.Current rating: 2.0A
3 RoHS compliant.

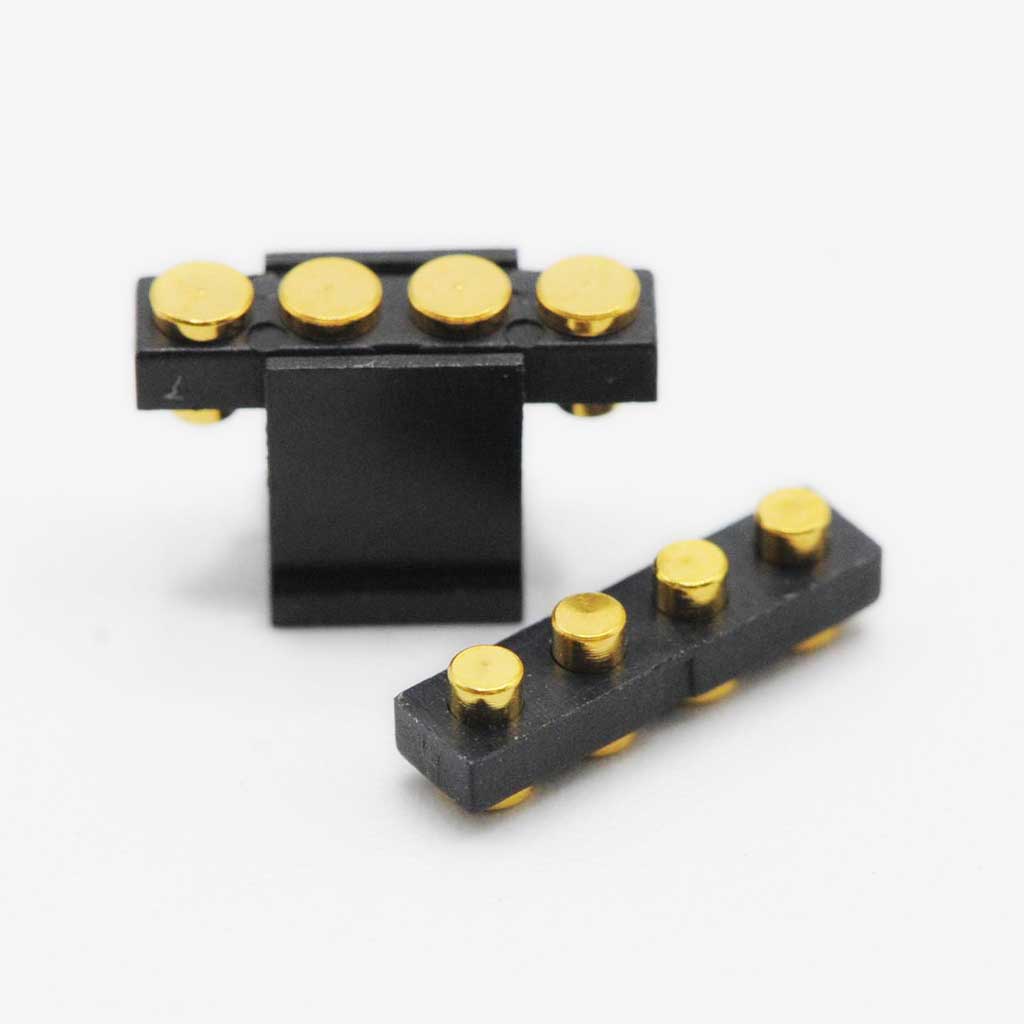

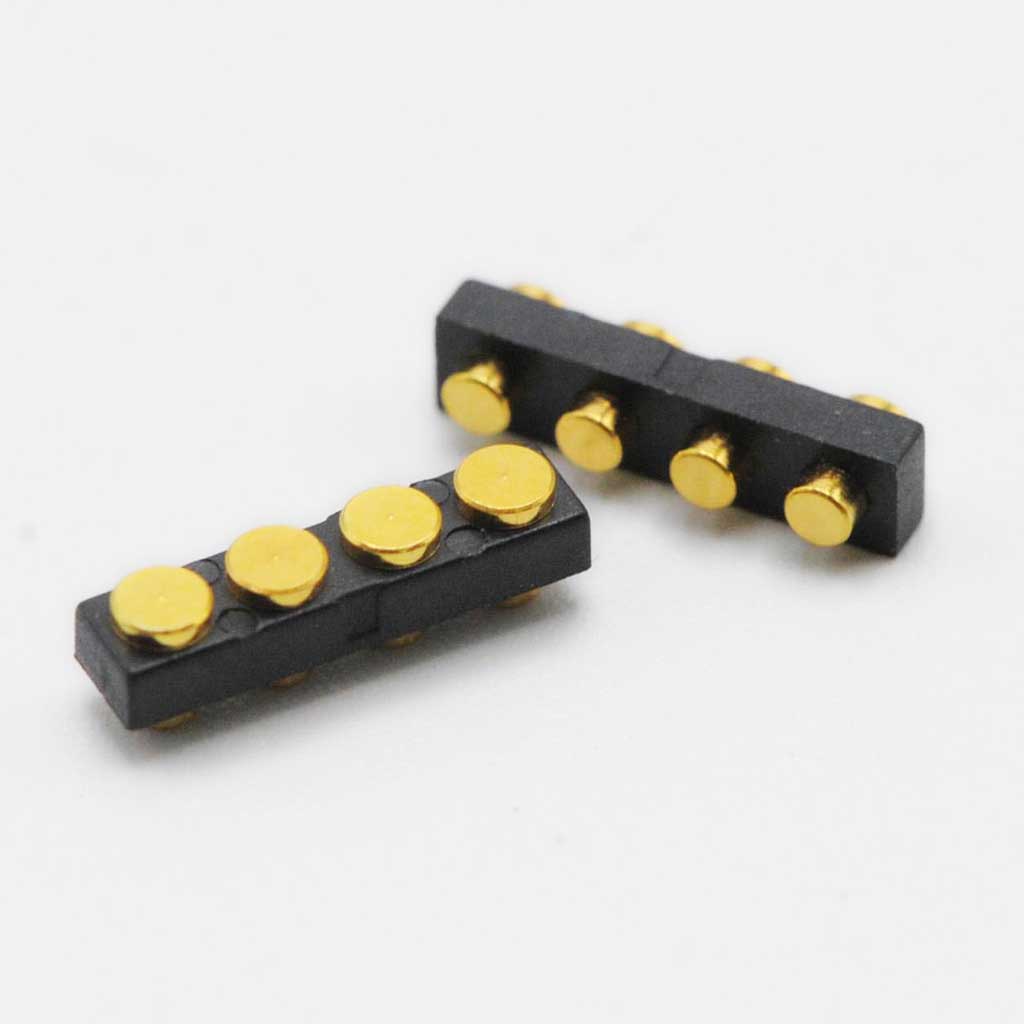

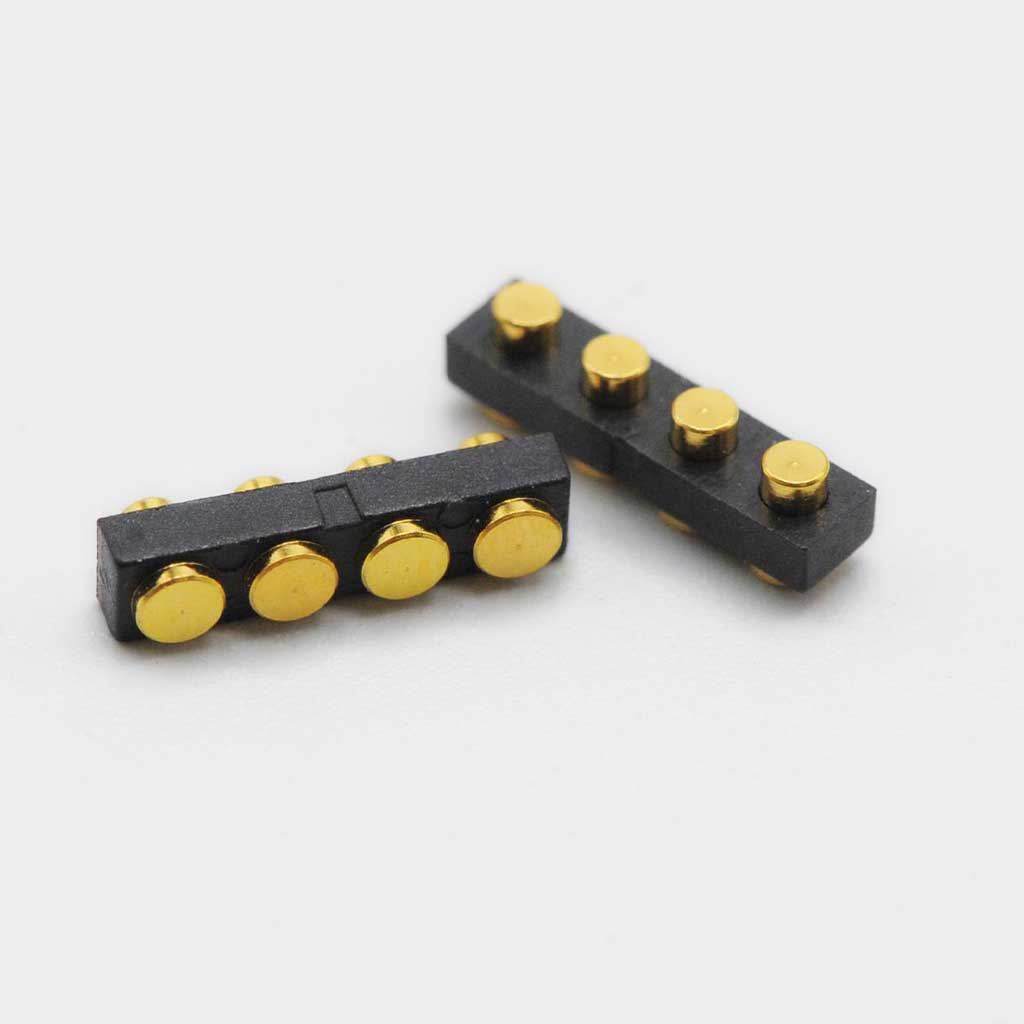

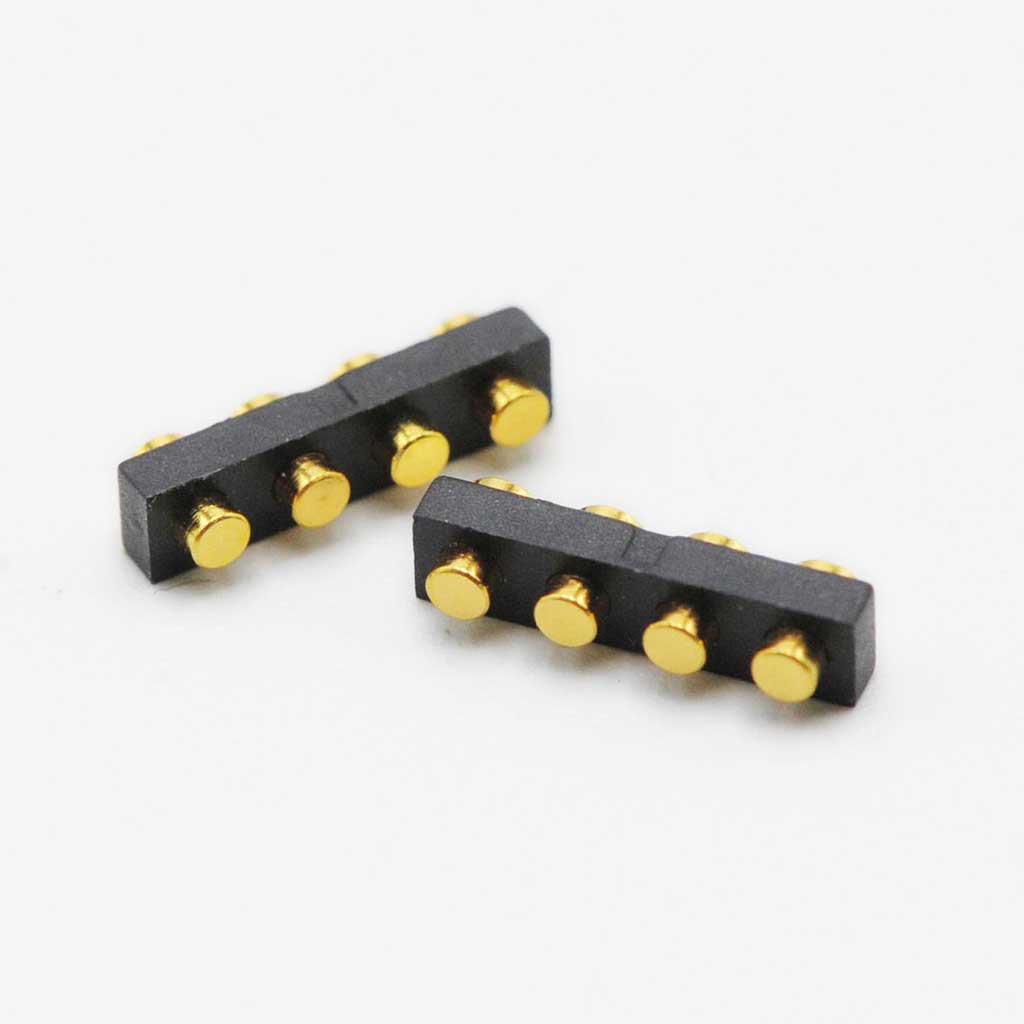

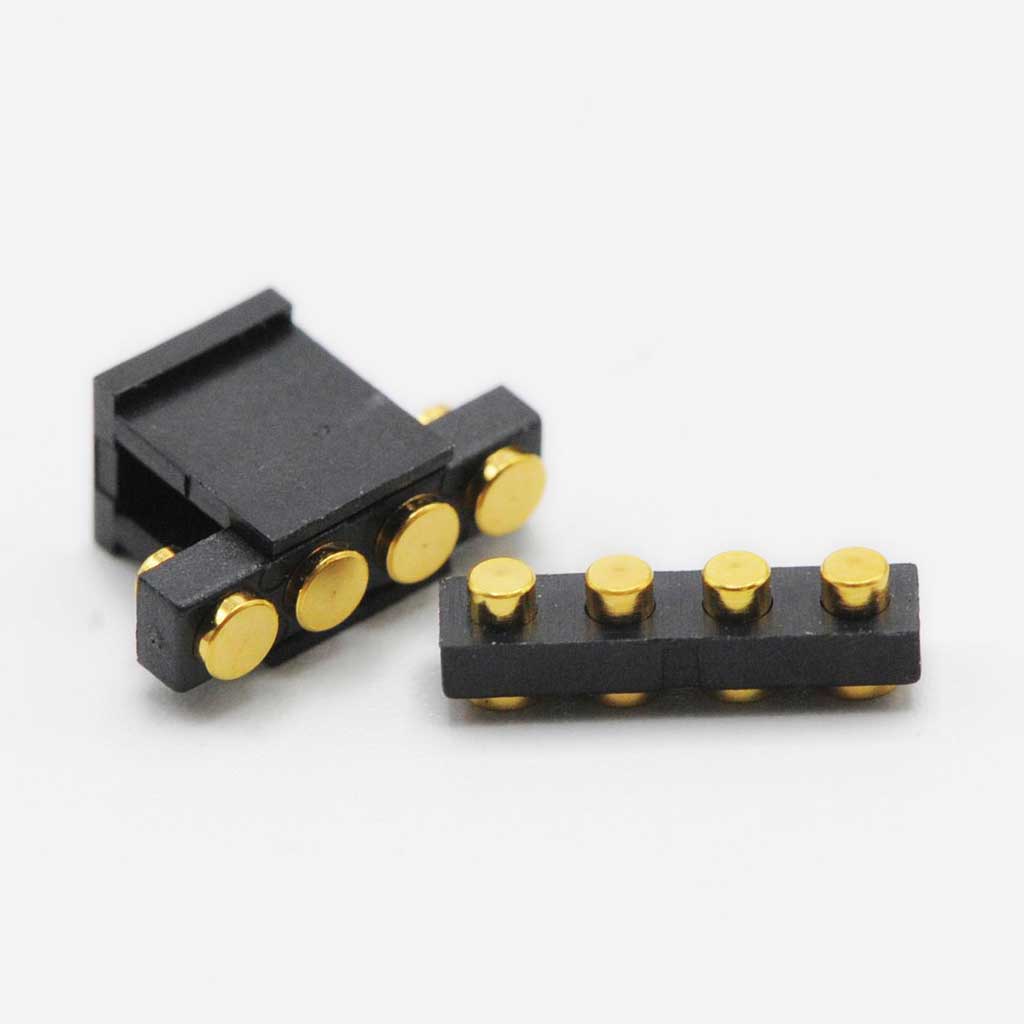

Product Image

pogo pin female contact
pogo pin female contact
female pogo pin connector
female pogo pin connector
female pogo pin
female pogo pin
female pogo pins
female pogo pins 4 pin
female pogo pins 4 pin

Drawings

female pogo pins 4 pin
female pogo pins 4 pin

Drawing download 19       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “female pogo pins 4 pin 2.5 mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, none, Outer Diameter, 1.5 mm, Pin Amount, 4 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, none
