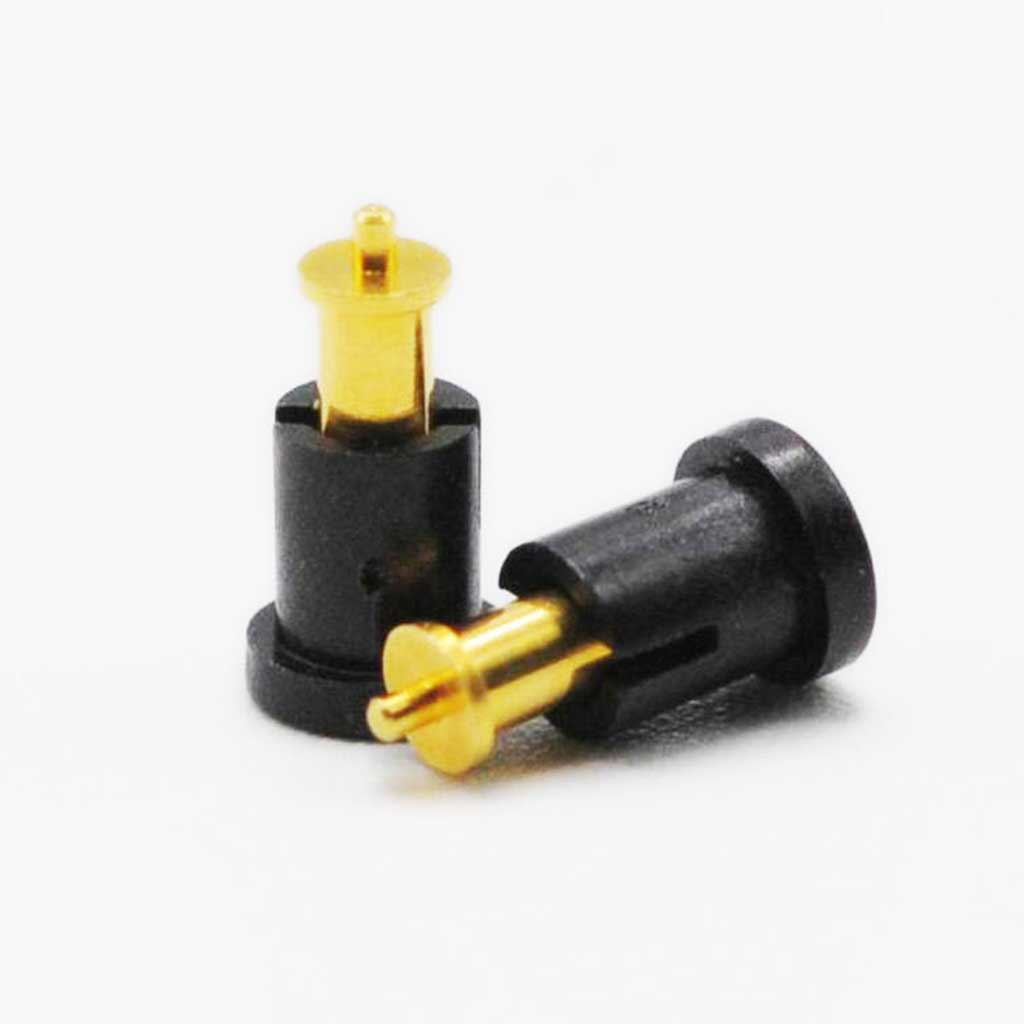

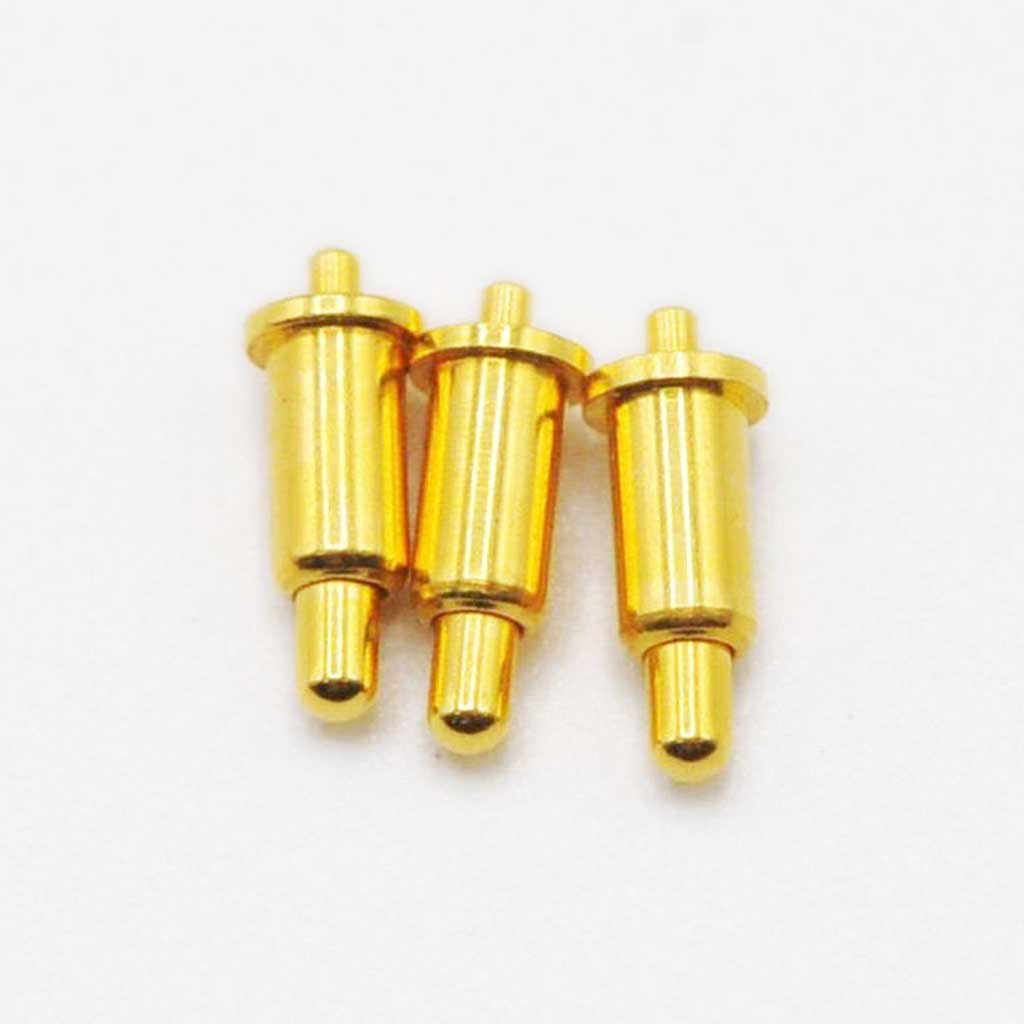

DIP pogo pin working height 3.8mm. Customizable products. Please contact us for a free catalog request。

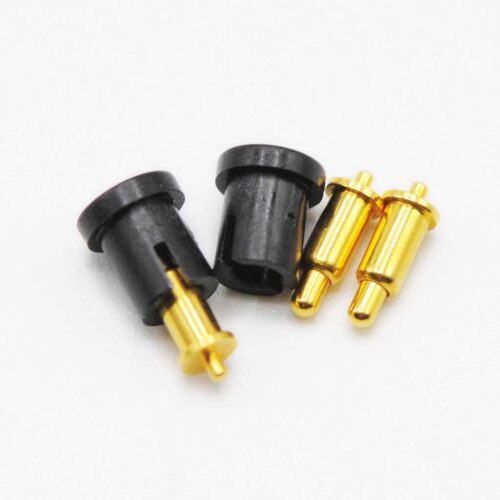

A Dip Pogo Pin Connector is a type of electrical connector that is widely used in the electronics industry. It consists of a housing, contacts, and a spring mechanism. The spring mechanism is designed to provide a reliable connection between the two mating surfaces.

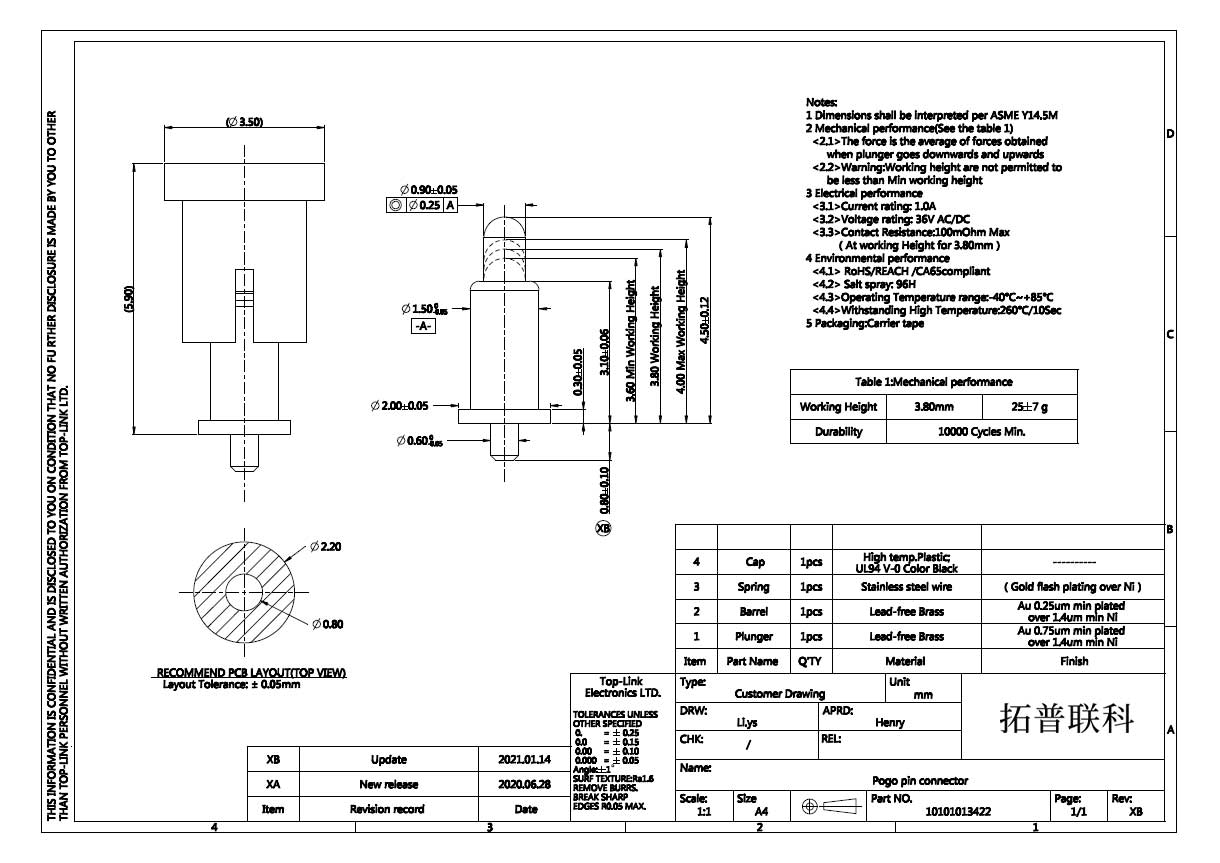

Drawing description
1 Dimensions shall be interpreted per ASME Y14.5M2 Mechanical performance(See the table 1)
<2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
<2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
<3.1>Current rating:1.0A
<3.2>Voltage rating: 36V AC/DC
<3.3>Contact Resistance:100mOhm Max( At working Height for 3.80mm )
4 Environmental performance
<4.1>RoHS/REACH /CA65compliant
<4.2> Salt spray: 96H
<4.3>Operating Temperature range:-40°C~+85°C
<4.4>Withstanding High Temperature:260°C/10Sec
5 Packaging:Carrier tape
