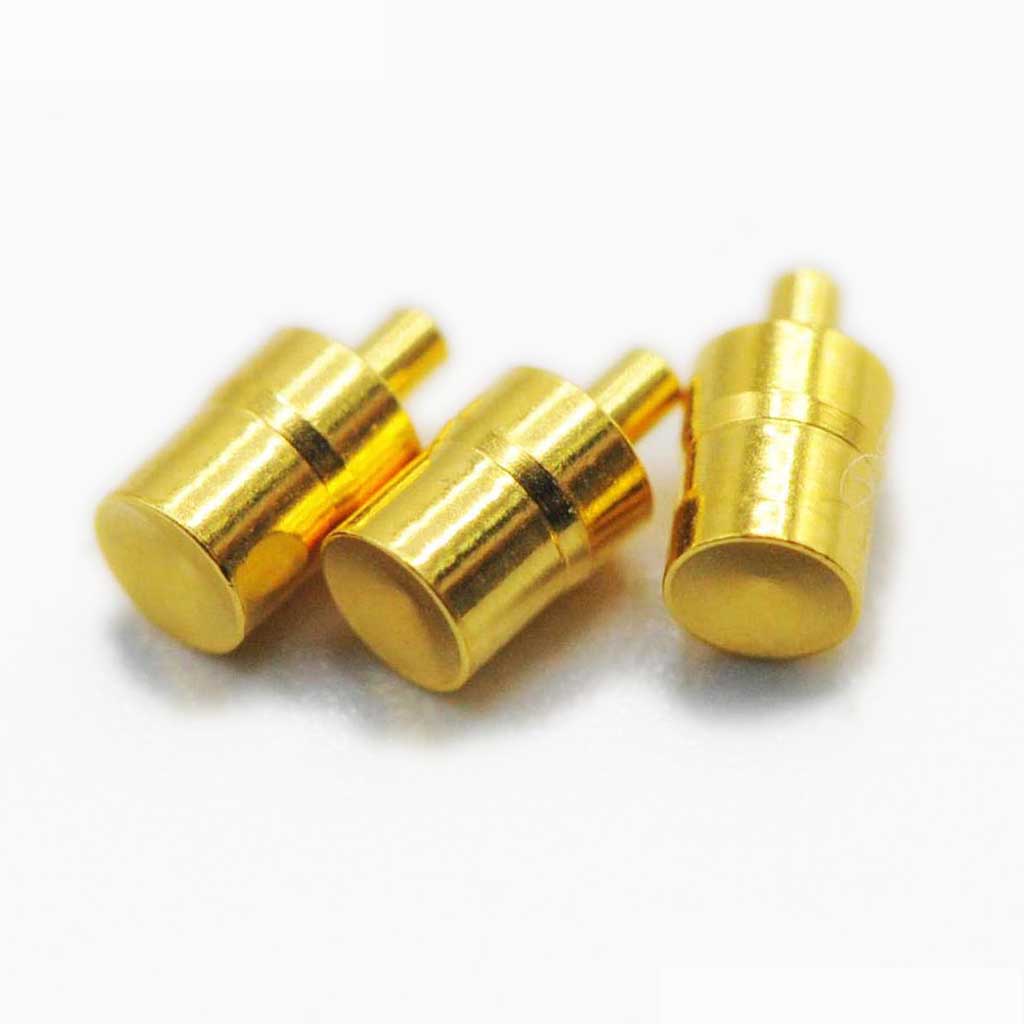

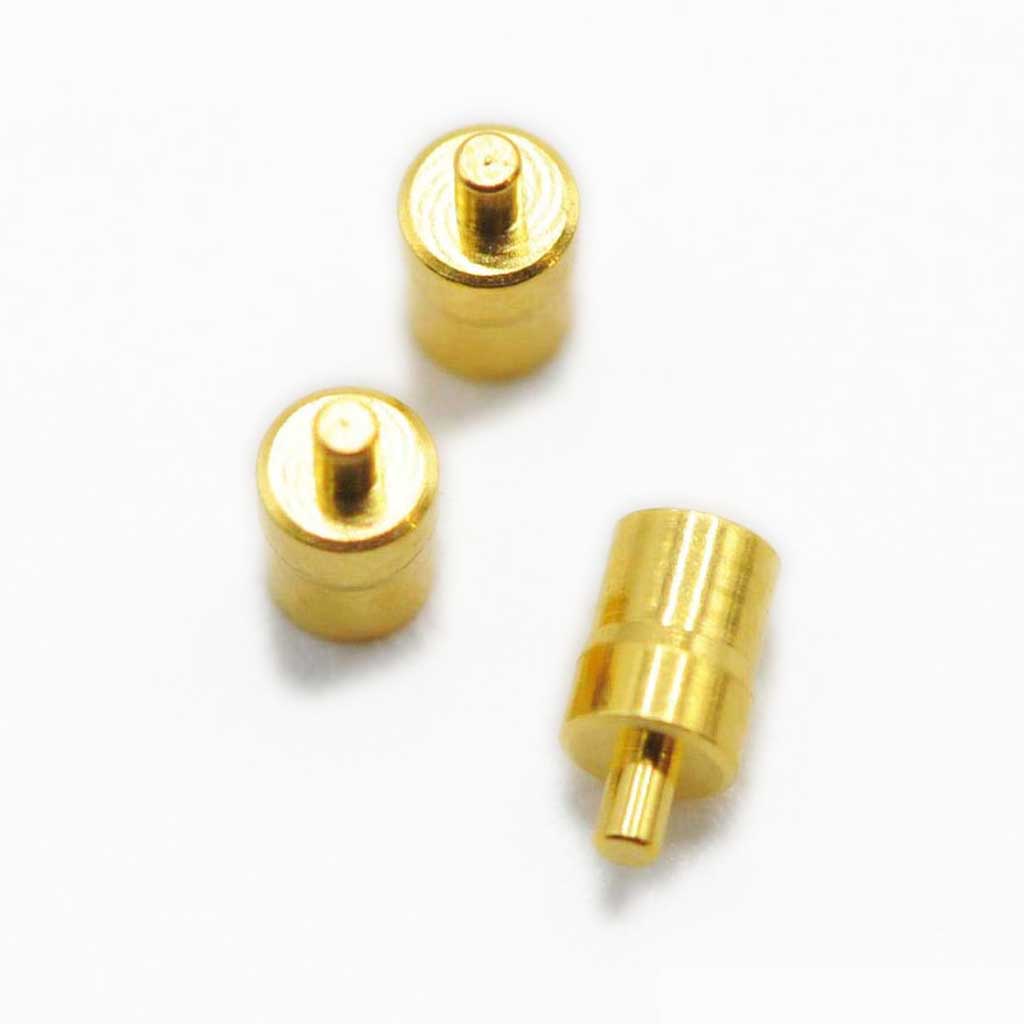

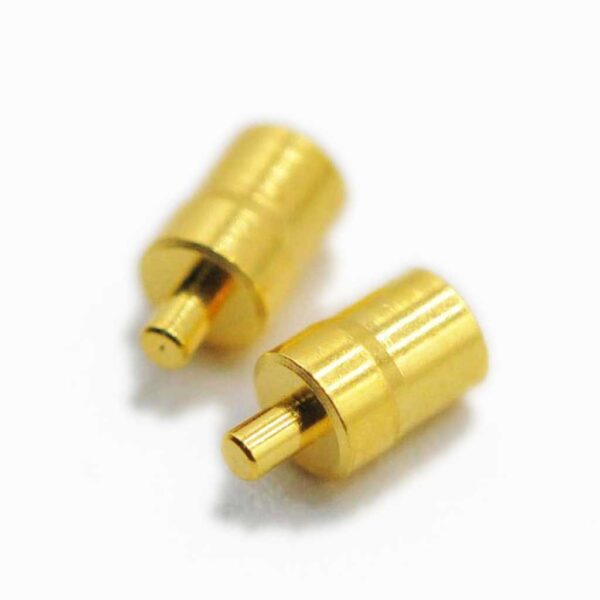

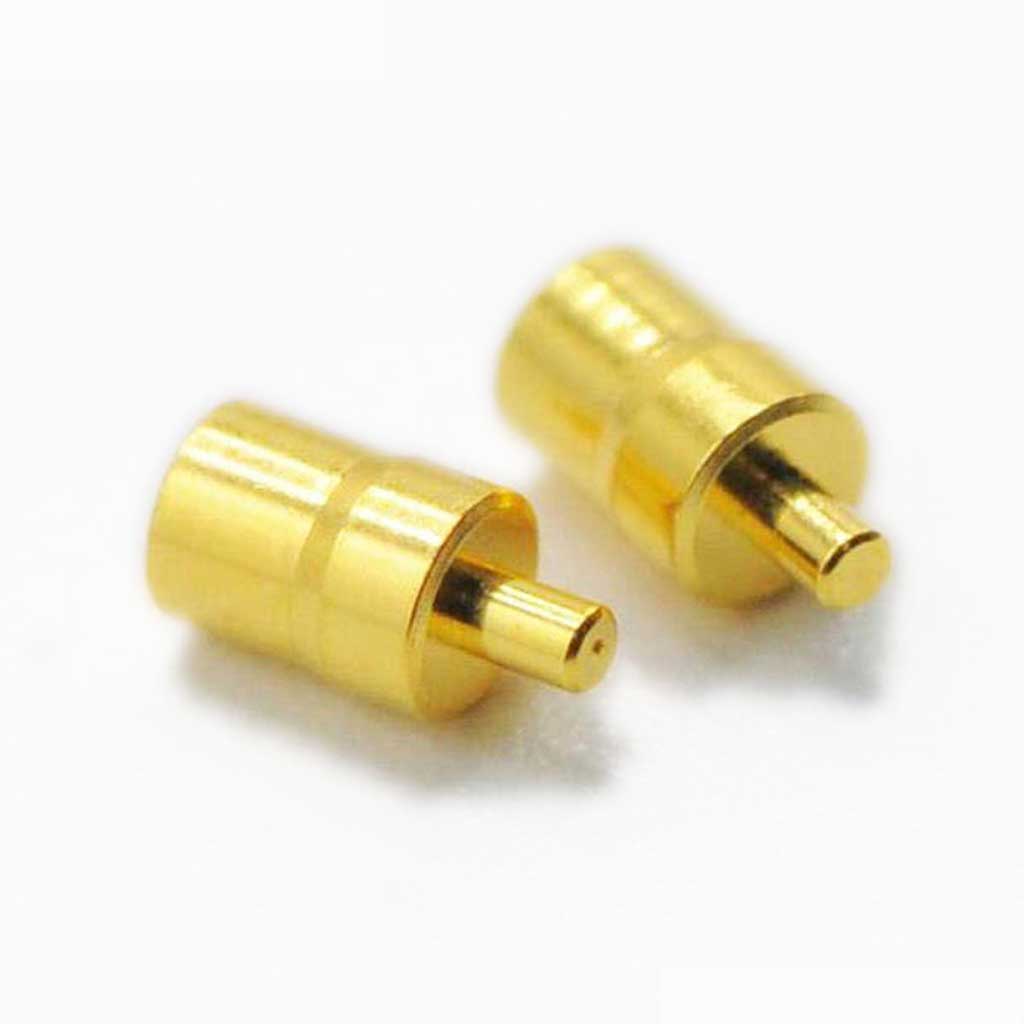

Copper solid pin contact, Contact rivet, DiameterΦ 1.5mm

Pogo pin female pin contact Copper solid pin contact Contact rivet Solid pin contact

Copper solid pin contact, Contact rivet, DiameterΦ 1.5mm

$0.21

581980 in stock

  • Total height
    1.98 mm
  • DiameterΦ
    1.5mm
  • Force
    none

Description


Copper solid pin contact, Contact rivet, DiameterΦ 1.5mm

Copper solid pin contact is a connection contact used with pogo pins; it is widely used in TWS Bluetooth headsets, sports bracelets, etc. Generally used as the mating contact point of the board end, it is used together with the pogo pin magnetic connector on the line end to meet the charging connection or signal transmission.

Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Electrical performance
    <2.1>Current rating: 2.0A MAX
    <2.2>Voltage rating: 36VAC/DC
    <2.3>Contact Resistance:30mOhm Max.
3 Environmental performance
    <3.1>RoHS2.0/CA65/REACH compliant
    <3.2> Salt Spray:96h MinArtificial Sweat test:96H Min
    <3.3>Operating Temperature range:-40°C~+85°C
    <3.4>Withstanding High Temperature:260°C/10Sec
4 Packaging:Carrier tape

Drawings

23000271 drawing
23000271 drawing

Drawing download 108       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “Copper solid pin contact, Contact rivet, DiameterΦ 1.5mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Total height, 1.98 mm, DiameterΦ, 1.5mm, Pitch, 0, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, none
