dip pogo pin connector

what are pogo pins used for?

Pogo pin is a precision connector used in electronic products such as mobile phones. It is widely used in semiconductor devices and plays the role of connecting current or electrical signals.

More pogo pin specifications



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rqting: 1.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Contact Resistance:100mOhm Max(At working height for 3.40mm)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Operating Temperature range:-40C~+85C
    <4.3>Withstanding High Temperature:260C/10Sec
5 Pqckaging:Carrier tape

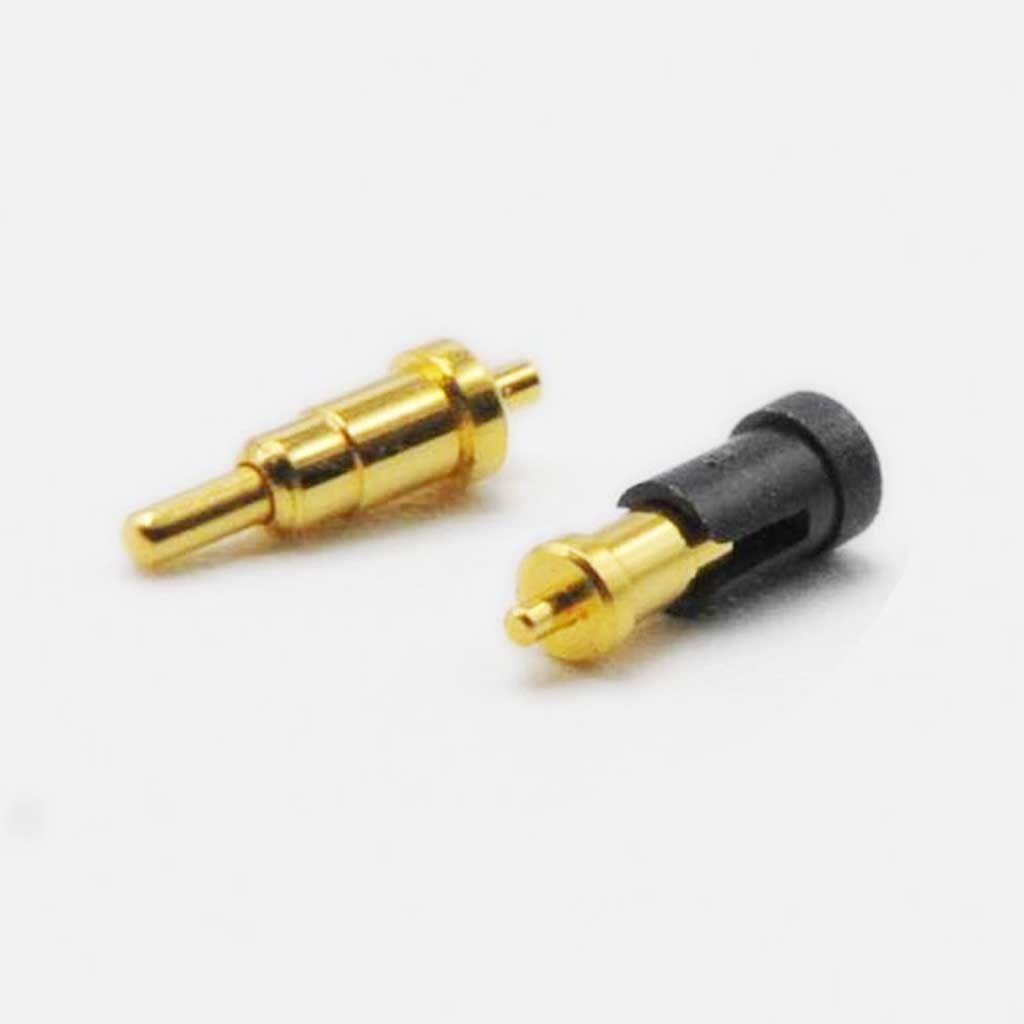

Product Image
