long tail dip pogo pin working height 1.4mm diameter 1.5mm

dip pogo pin long tail dip pogo pin dip pogo pin pogo pins pogo pin connector

long tail dip pogo pin working height 1.4mm diameter 1.5mm

Original price was: $0.56.Current price is: $0.52.

25000 in stock

  • working height
    1.4mm
  • height
    8.94mm
  • Force
    45 ±10gf

Description

long tail dip pogo pin

&nbsp



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning: Warning: The working stroke mustnot exceed the max working stroke
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working stroke)
4 Environmentalperformance
    <4.1> RoHS2.0 compliant
    <4.2>Operating Temperature range:-40°C~+85°C
    <4.3>Withstanding High Temperature:260°C/10Sec
5 Packaging:Bag

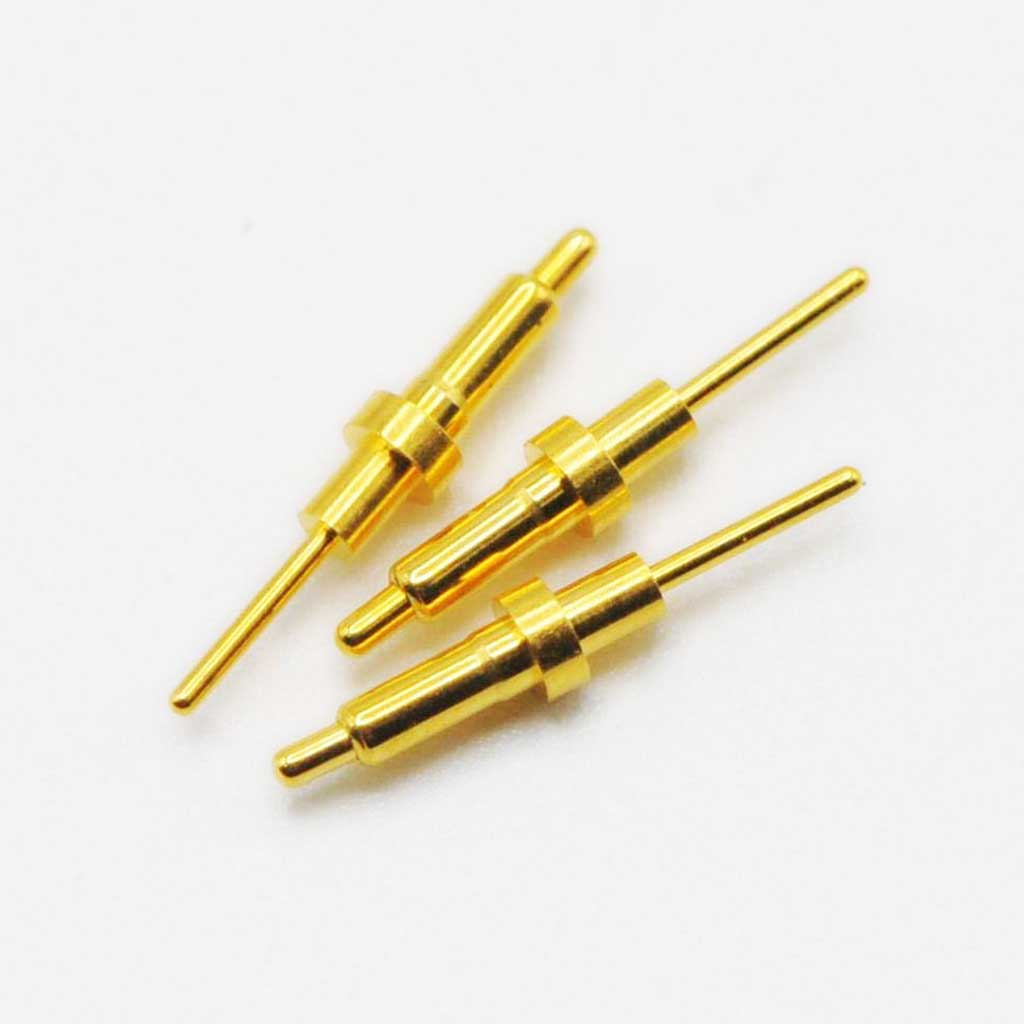

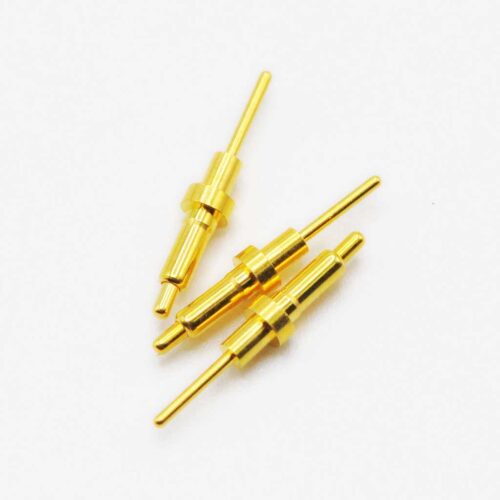

Product Image

pogo pin connector
pogo pin connector
pogo pins
pogo pins
dip pogo pin
dip pogo pin
long tail dip pogo pin
long tail dip pogo pin
dip pogo pin connector
dip pogo pin connector

Drawings

pogo pin connector drawing
pogo pin connector drawing

Drawing download 158       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “long tail dip pogo pin working height 1.4mm diameter 1.5mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 1.4mm, height, 8.94mm, diameter, 1.5mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, 45 ±10gf
