3-pin pogo-pin connector 5.1mm working stroke 4.0mm pitch

3-pin pogo-pin connector 3pin pogo pins 3-pin pogo pin connector pogo pin connector pogo-pin connector

3-pin pogo-pin connector 5.1mm working stroke 4.0mm pitch

$0.91

280 in stock

  • working height
    5.1 mm
  • pitch
    4.0 mm
  • Force
    90 ±20gf

Description

3-pin pogo-pin connector

&nbsp

5.1mm working stroke, 4.0mm pitch, 3-pin pogo-pin connector. Can be customized with different dimensions, current size, working stroke, working height, waterproof, pogo-pin factory direct supply. contact us now.



Drawing description


1 Demensions shall be interpreted per ASME Y14.5M-1994.
2 Mechanica performance(See the table 2)
    <2.1>The force is the average of forces obtained when plungergoes aownwaras ana upwaras.
    <2.2>Warning:Working height are not permitted to be essthan Min working height
3 Electrica performance
    Resistance:30mOhm Max.
    Current:2A DC
4 Packaging Spec
5 RoHS compliant

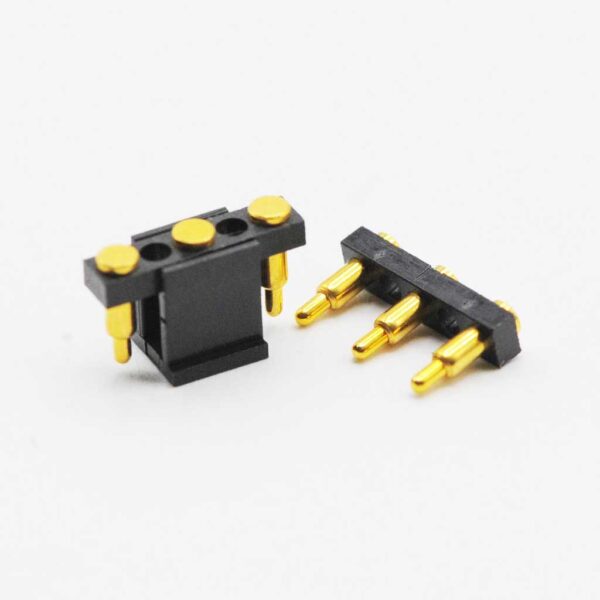

Product Image

3-pin pogo-pin connector
3-pin pogo-pin connector
pogo-pin connector
pogo-pin connector
pogo pin connector
pogo pin connector
3-pin pogo pin connector
3-pin pogo pin connector
3pin pogo pins
3pin pogo pins

Drawings

3-pin pogo-pin connector drawing
3-pin pogo-pin connector drawing

Drawing download 74       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “3-pin pogo-pin connector 5.1mm working stroke 4.0mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 5.1 mm, pitch, 4.0 mm, Pin Amount, 3 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, 90 ±20gf
