pogo pin connector (2-point) pitch 2.7mm working height 3.5mm, Factory stock supply

pogo pin connector (2-point) pogo connector pins 2 pin pogo pin connector 2 pin pogo connector pogo pin connector

pogo pin connector (2-point) pitch 2.7mm working height 3.5mm, Factory stock supply

$0.48

  • working height
    3.5mm
  • pitch
    2.7mm
  • Force
    100 ±30gf

Description

pogo pin connector (2-point)

&nbsp

pitch 2.7mm working height 3.5mm, Factory stock supply
2pin board-through pogo pin connector, gold-plated surface, available from stock. Different specifications can be customized, waterproof, corrosion resistance, high current (20A), can provide connector components (modules) for your products, and provide design support, so that your products can be produced with lower design risks and less input costs. win. Welcome to contact us.



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 12VAC/DC
    <3.3>Contact Resistance:100mOhm Max(At working height for 3.5mm)
4 Environmental performance
    <4.1> RoHS2.0/HF/Reach/CA65 compliant
    <4.2>Salt Spray: 48h Min
    <4.3>Operating Temperature range:-40°C~+85°C
    <4.4>Withstanding High Temperature:260°C/10Sec
5 Packaging:Carrier tape

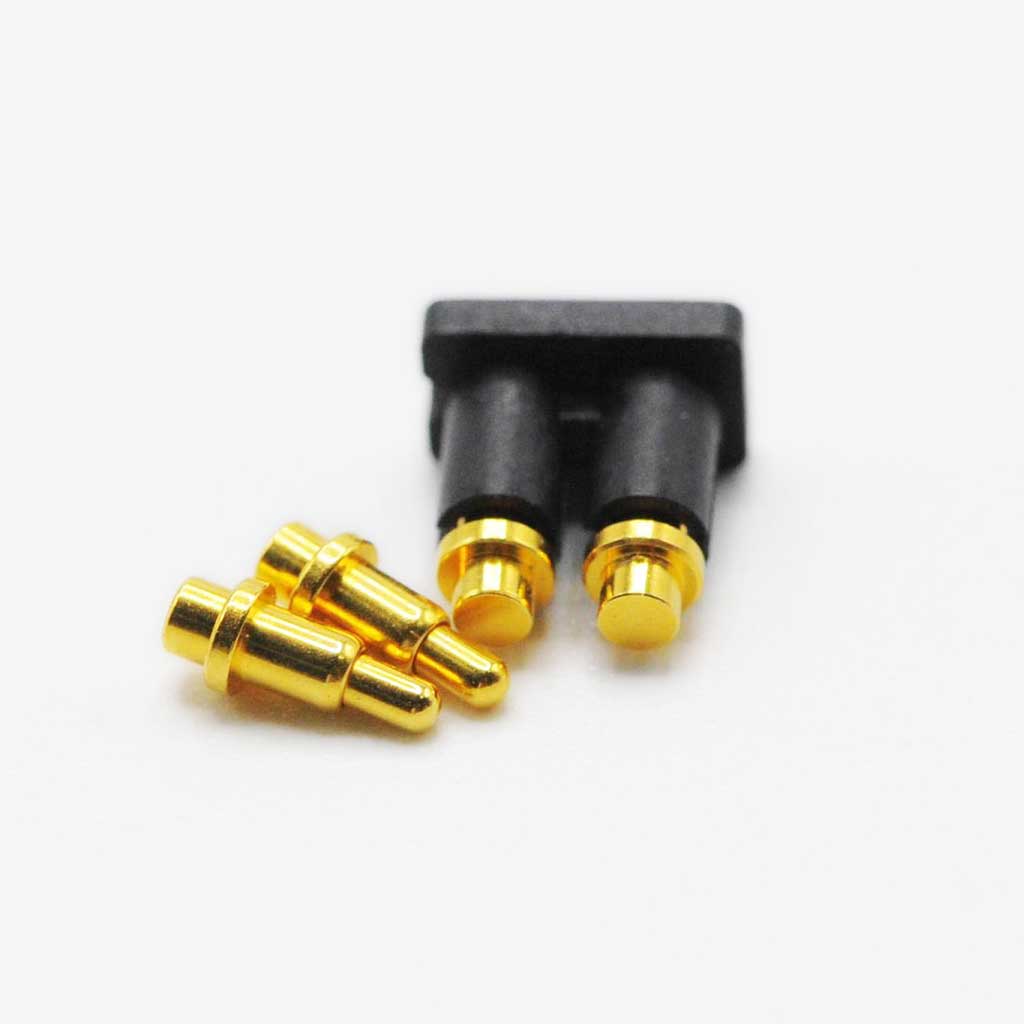

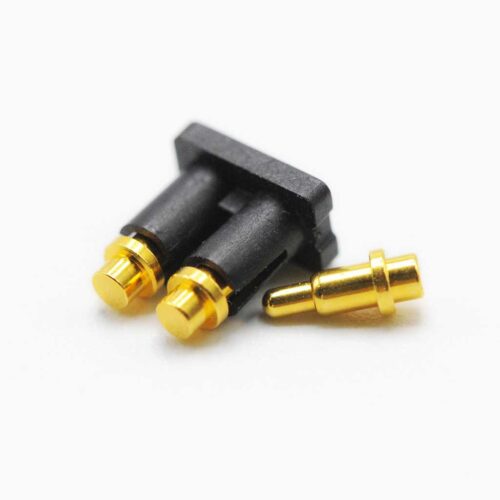

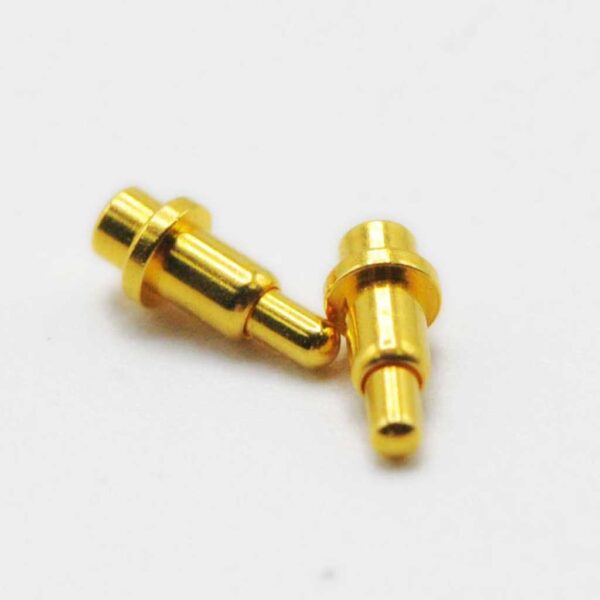

Product Image

pogo pin connector
pogo pin connector
pogo pin connector (2-point)
pogo pin connector (2-point)
2 pin pogo connector
2 pin pogo connector
2 pin pogo pin connector
2 pin pogo pin connector
pogo connector pins
pogo connector pins

Drawings

2 pin pogo connector pins drawing
2 pin pogo connector pins drawing

Drawing download 73       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “pogo pin connector (2-point) pitch 2.7mm working height 3.5mm, Factory stock supply”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 3.5mm, pitch, 2.7mm, Pin Amount, 2 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 100 ±30gf
