pogo pin contacts, Working Height 2.25mm, DiameterΦ 1.03mm

pogo pin contacts pogo pins 10101013346 pogo pin contacts pogo pin

pogo pin contacts, Working Height 2.25mm, DiameterΦ 1.03mm

$0.64

267600 in stock

  • Working Stroke
    2.25 mm
  • Pin Amount
    1 Pins
  • Force
    40土12gf

Description


pogo pin contacts, Working Height 2.25mm, DiameterΦ 1.03mm

It can be customized according to the application requirements of pogo pin. Our products have passed the medical safety standard certification ISO13485, which can be used in beauty instrument products, medical equipment, and can directly contact the skin

Notes:
1 Dimensions shall be interpreted per ASMEY14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 1.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Contact Resistance:50mOhm Max(At working height for 2.25mm)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Operating Temperature range:-40C~+85’C
    <4.3>Withstanding High Temperature:260C/10Sec
    <4.4> Salt spary test: 96H5
5 Packaging:Carrier tape

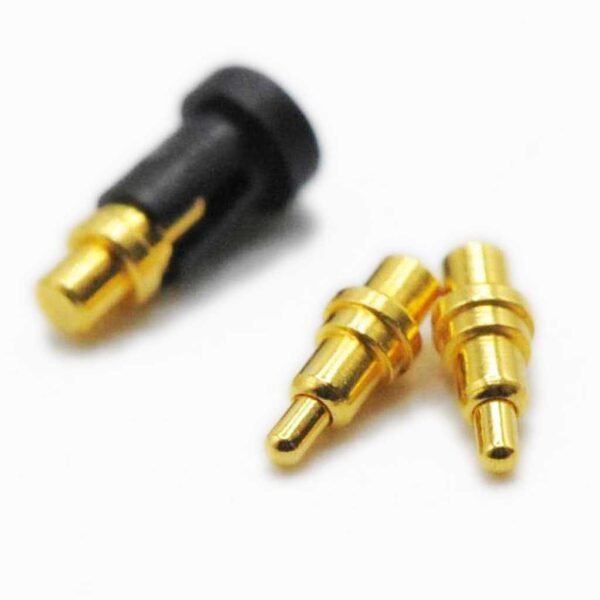

physical photos
pogo pin contacts
pogo pin contacts
pogo pin
pogo pin

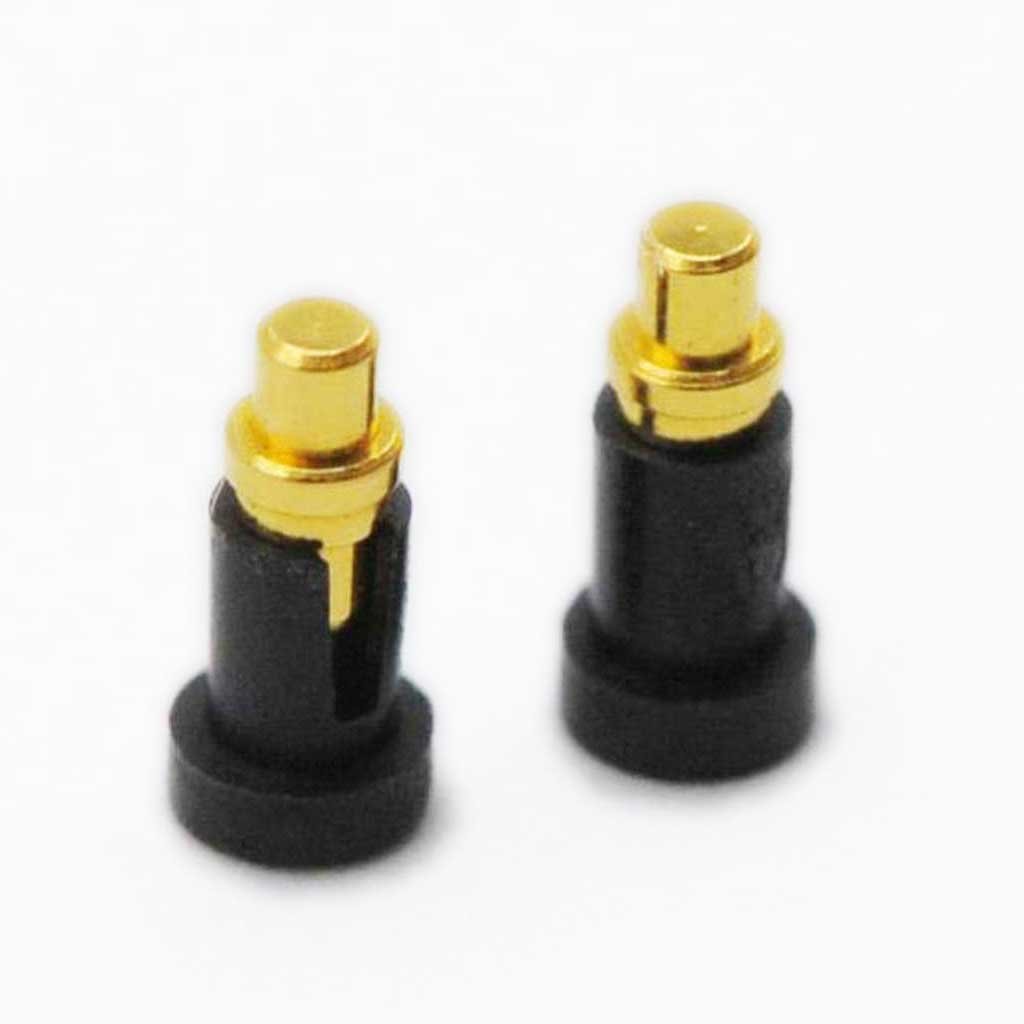

10101013346 pogo pin contacts
10101013346 pogo pin contacts

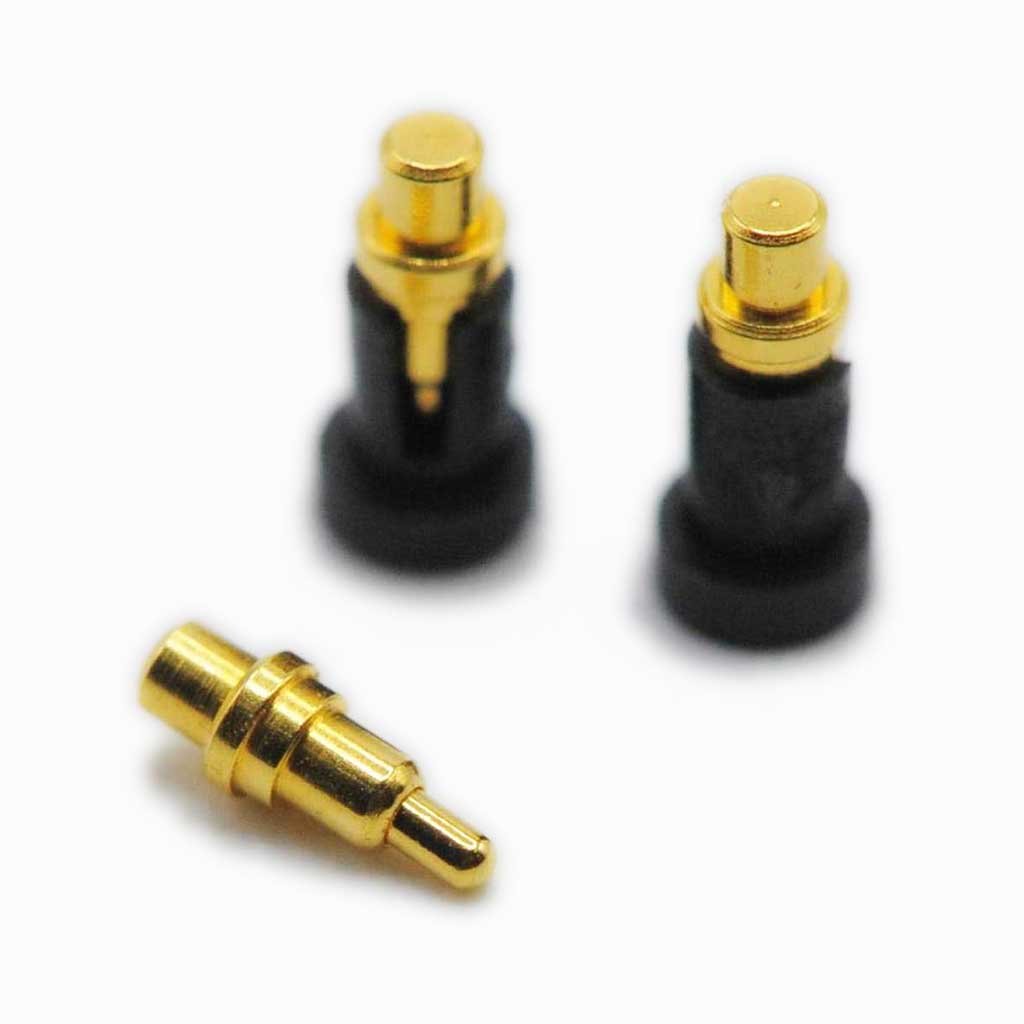

pogo pins
pogo pins

Drawings

10101013346 pogo pin contacts drawing
10101013346 pogo pin contacts drawing

Drawing download 122       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “pogo pin contacts, Working Height 2.25mm, DiameterΦ 1.03mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 2.25 mm, Pin Amount, 1 Pins, Pitch, 0, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 40土12gf
