pogo pin connecotr side contact 2.2mm working heiht

pogo pin connecotr side contact spring contact pin spring pogo pins pogo pins

pogo pin connecotr side contact 2.2mm working heiht

$1.07

100 in stock

  • Work Height
    2.2 mm
  • Pitch
    0
  • Force
    60 ±15gf

Description



pogo pin connecotr
2.2mm working heiht side contact pogo pin connecotr. 18-year-old Spring Loaded Pogo Connectors Manufacturer, welcome to learn about our pogo pin connectors.



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrica performance
    <3.1>Current rating: 1.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmenta performance
    <4.1>RoHS compliant
    <4.2>Salt Spray: 48h Min
    <4.3>Operating Temperature range:-40C~+85’C
    <4.4>Withstanding Higt Temperature: 260C/10Sec
5 The initial contact retention:200gf min
6 Packaging:Carrier tape

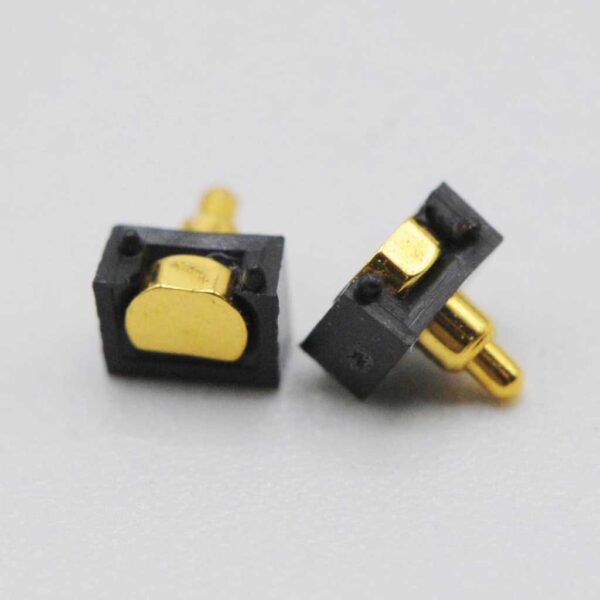

Product Image

pogo pins
pogo pins
pogo pin connecotr side contact
pogo pin connecotr side contact
pogo pin connecotr
pogo pin connecotr
spring pogo pins
spring pogo pins
spring contact pin
spring contact pin

Drawings

spring contact pins drawing images
spring contact pins drawing images

Drawing download 64       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “pogo pin connecotr side contact 2.2mm working heiht”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 2.2 mm, Pitch, 0, Pin Amount, 1 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 60 ±15gf
