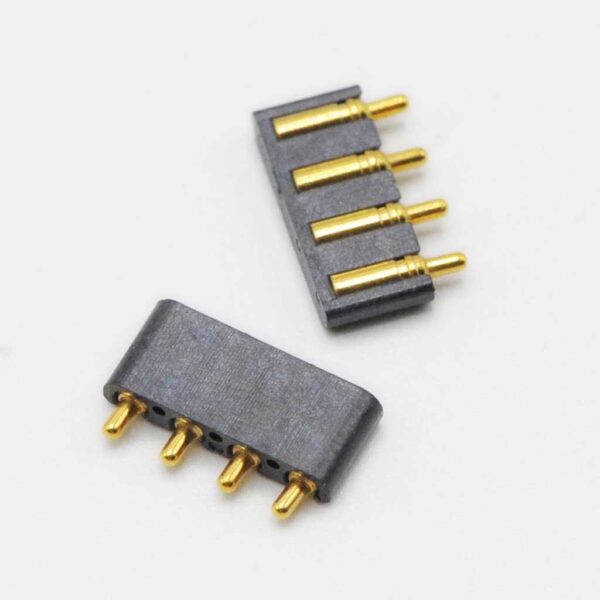

side mounted pogo pin connector, 4 pin pogo connector 2.5mm pitch

side mounted pogo pin connector 4 pin pogo connector 4 pin pogo pin connector pogo pin connector 4-pin pogo connector

side mounted pogo pin connector, 4 pin pogo connector 2.5mm pitch

Original price was: $0.88.Current price is: $0.81.

5327 in stock

  • Work Height
    0.7 mm
  • Pitch
    2.5 mm
  • Force
    160 ±35gf

Description



side mounted pogo pin connector
4 pin pogo connector, Pitch: 2.5mm , Working Height: 0.7 , Number of Pin: 4 Pin , Current: 2A .
There are over 18 years of experience in R&D.Extensive product range with highest quality. Professional custom service. Leading custom design. Free samples. Competitive Pricing.



Drawing description

1 Demensions shall be interpreted per ASME Y14.5M-1994. 2 Mechanical performance(See the table 2)<2.1>The force is the average of forces obtained when plungergoes aownwaras ana upwaras.<2.2>Warning:Working height are not permitted to be lessthan Min working height. 3 Electrica performance Resistance:30mOhm Max.; Current:2A DO 4 Packaging Spec 5 RoHS compliant



Product Image

4-pin pogo connector
4-pin pogo connector
pogo pin connector
pogo pin connector
4 pin pogo pin connector
4 pin pogo pin connector
4 pin pogo connector
4 pin pogo connector
side mounted pogo pin connector
side mounted pogo pin connector

Drawings

4 pin pogo connector drawing
4 pin pogo connector drawing

Drawing download 113       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “side mounted pogo pin connector, 4 pin pogo connector 2.5mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 0.7 mm, Pitch, 2.5 mm, Pin Amount, 4 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 160 ±35gf
