2 pin spring loaded pogo pins 3.3mm Working height 5.08mm pitch

pogo pin connector (2-point) 2 pin spring loaded pogo pins spring loaded pogo pins 2-point pogo-pin connector pogo pin connector

2 pin spring loaded pogo pins 3.3mm Working height 5.08mm pitch

$1.24

41860 in stock

  • Work Height
    3.3 mm
  • Pitch
    5.08 mm
  • Force
    85 ±25gf

Description



2 pin spring loaded pogo pins
2-point pogo-pin connector, 3.3mm Working height 5.08mm pitch,
Professional Pogo Pin Connector Manufacturer, 18+ Yrs Exp, Monthly Output 30+ Million



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanica performance(See the table 1)
<2.1> The force is the average of forces obtainedwhen plunger goes downwards and upwards
<2.2> Warning:Working height are not permitted tobe less than Min working height
3 Electrica performance
<3.1> Current rating: 2.0A
<3.2> Voltage rating:36VAC/DC
<3.3> Dynamic Resistance:30mOhm Max(between max and min working height)
<3.4> Insulation Resistance:100MOhm minimum
4 Environmenta performance
<4.1> RoHS compliant<4.2>Salt Spray:48h Min
<4.3> Operating Temperature range:-40C~+85C
<4.4> Withstanding Higt Temperature:260C/10Sec
5 Packaging:Carrier tape

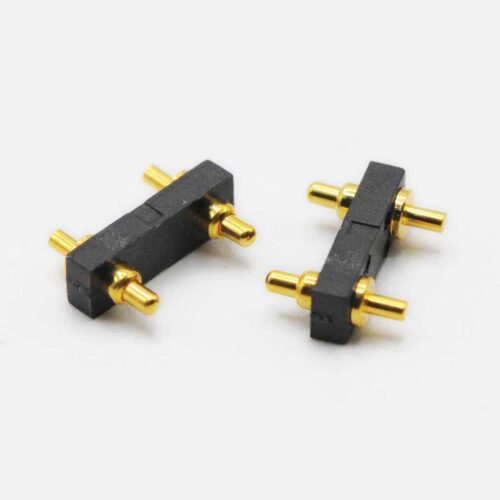

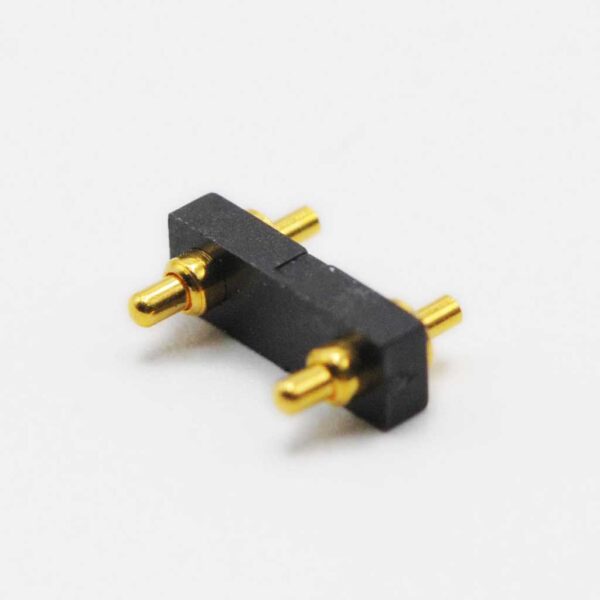

Product Image

pogo pin connector
pogo pin connector
pogo pin connector (2-point)
pogo pin connector (2-point)
2-point pogo-pin connector
2-point pogo-pin connector
spring loaded pogo pins
spring loaded pogo pins
2 pin spring loaded pogo pins
2 pin spring loaded pogo pins

Drawings

2-point pogo-pin connector drawing
2-point pogo-pin connector drawing

Drawing download 74       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “2 pin spring loaded pogo pins 3.3mm Working height 5.08mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 3.3 mm, Pitch, 5.08 mm, Pin Amount, 2 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 85 ±25gf
