pogo pin connector, Working Height 2.85mm, DiameterΦ 1.5mm

pogo pin connector pogo pin pogo pin contacts pogo pins

pogo pin connector, Working Height 2.85mm, DiameterΦ 1.5mm

$0.54

120813 in stock

  • Working Stroke
    2.85 mm
  • Pin Amount
    1 Pins
  • Force
    150土35gf

Description


pogo pin connector, Working Height 2.85mm, DiameterΦ 1.5mm


Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Salt Spray: 48h Min
    <4.3>Operating Temperature range:-40°C~+85°C
    <4.4>Withstanding High Temperature:260°C/10Sec
5 Packaging:Carrier tape.

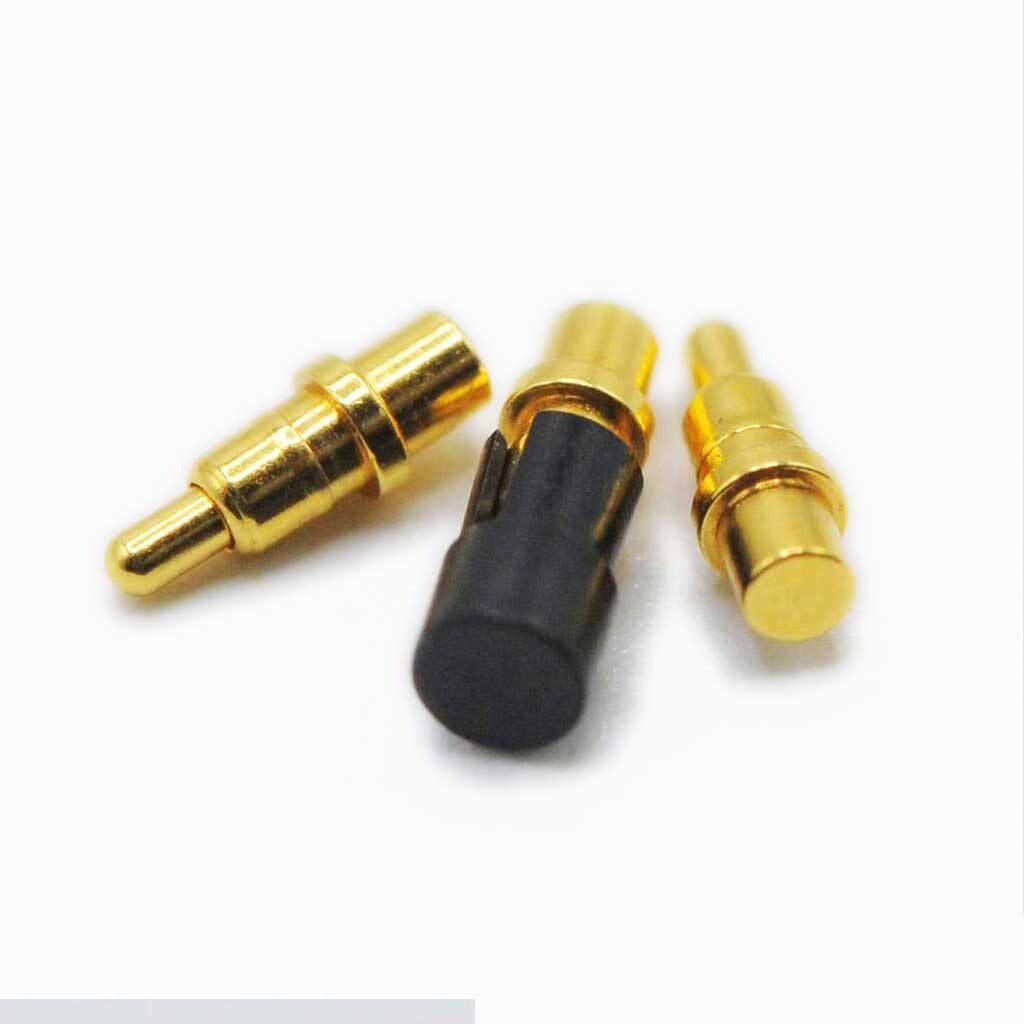

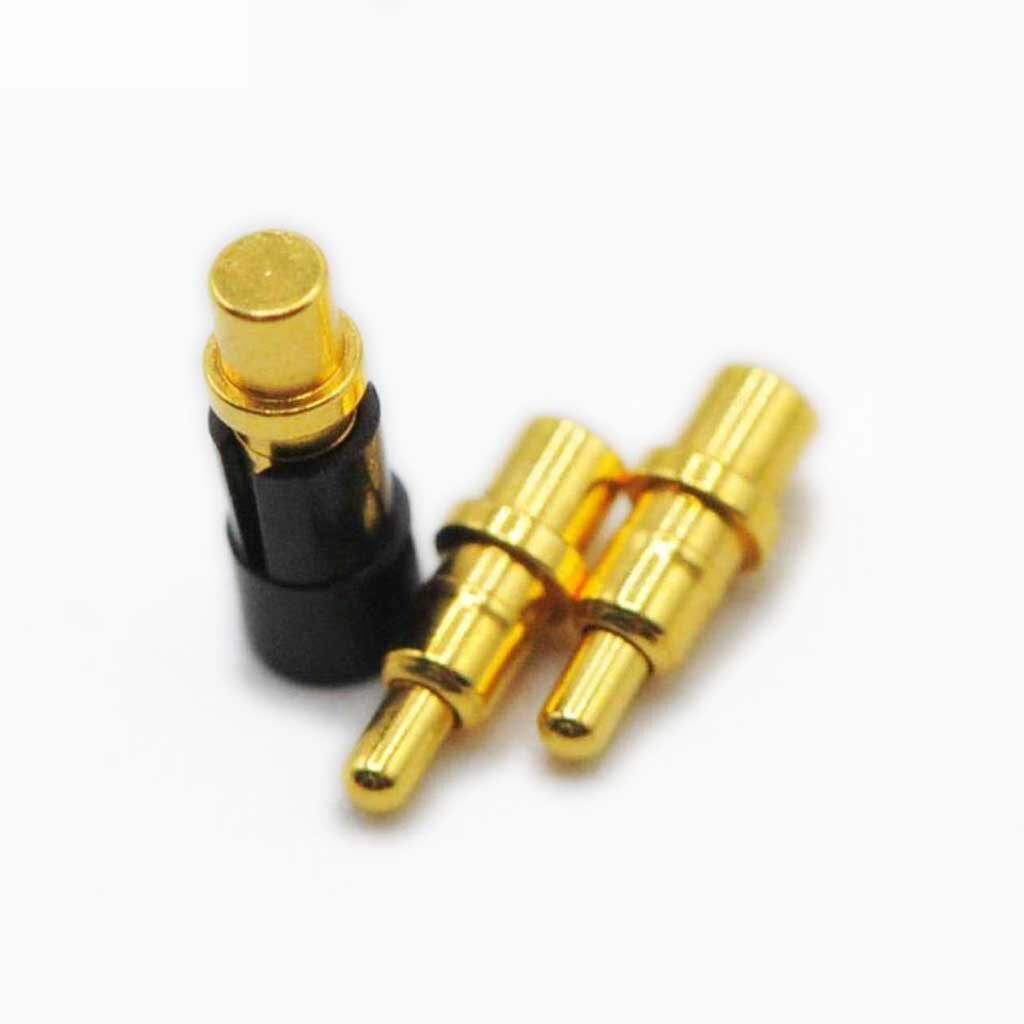

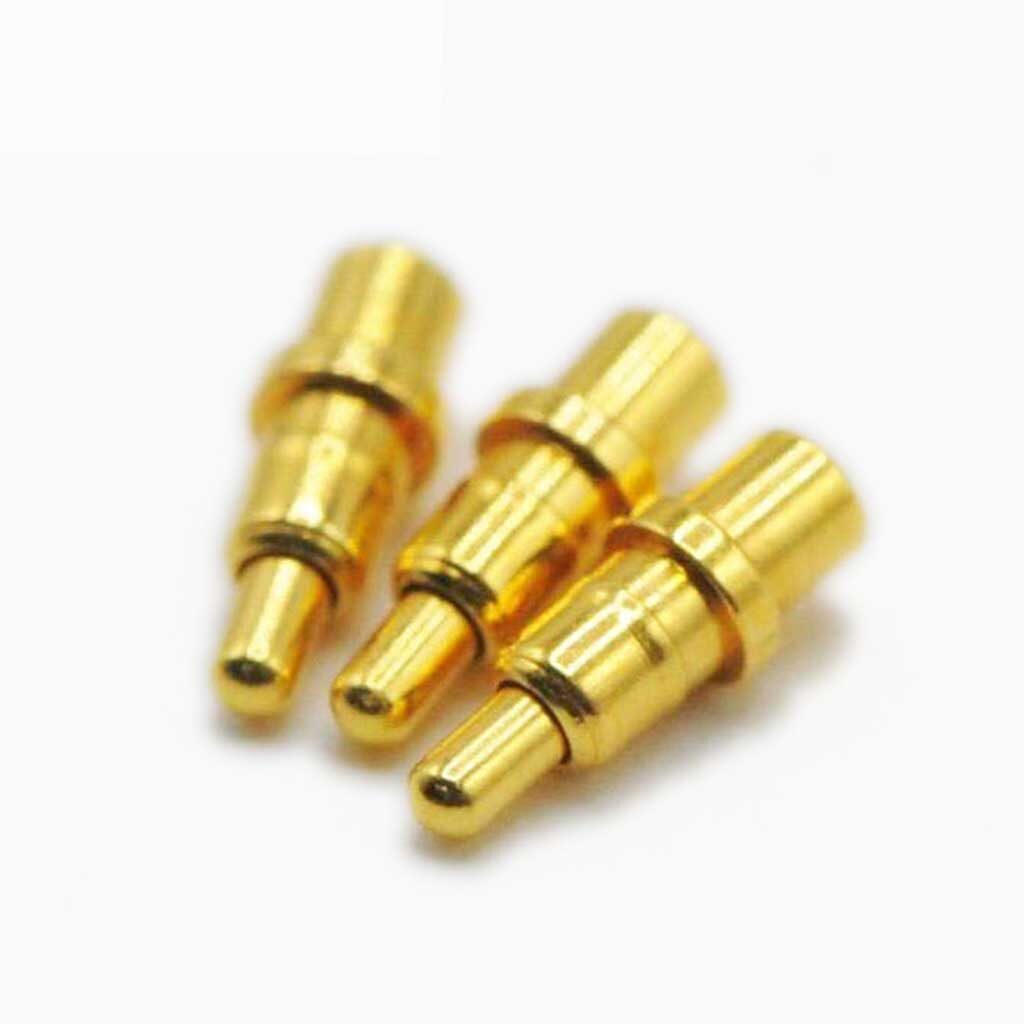

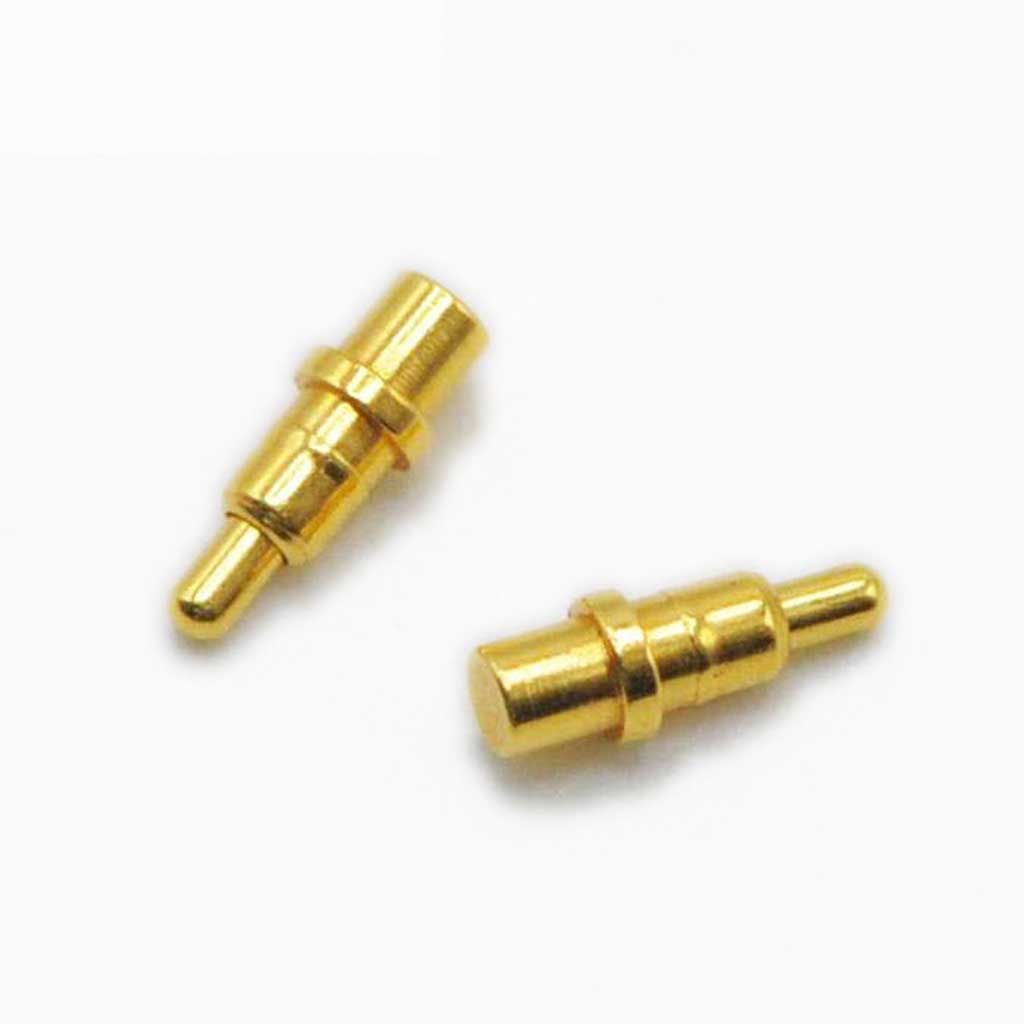

physical photos
pogo pins
pogo pins
pogo pin
pogo pin
pogo pin connector
pogo pin connector
pogo pin contacts
pogo pin contacts

Drawings

pogo pin drawing
pogo pin drawing

Drawing download 170       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “pogo pin connector, Working Height 2.85mm, DiameterΦ 1.5mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 2.85 mm, Pin Amount, 1 Pins, Pitch, 0, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 150土35gf
