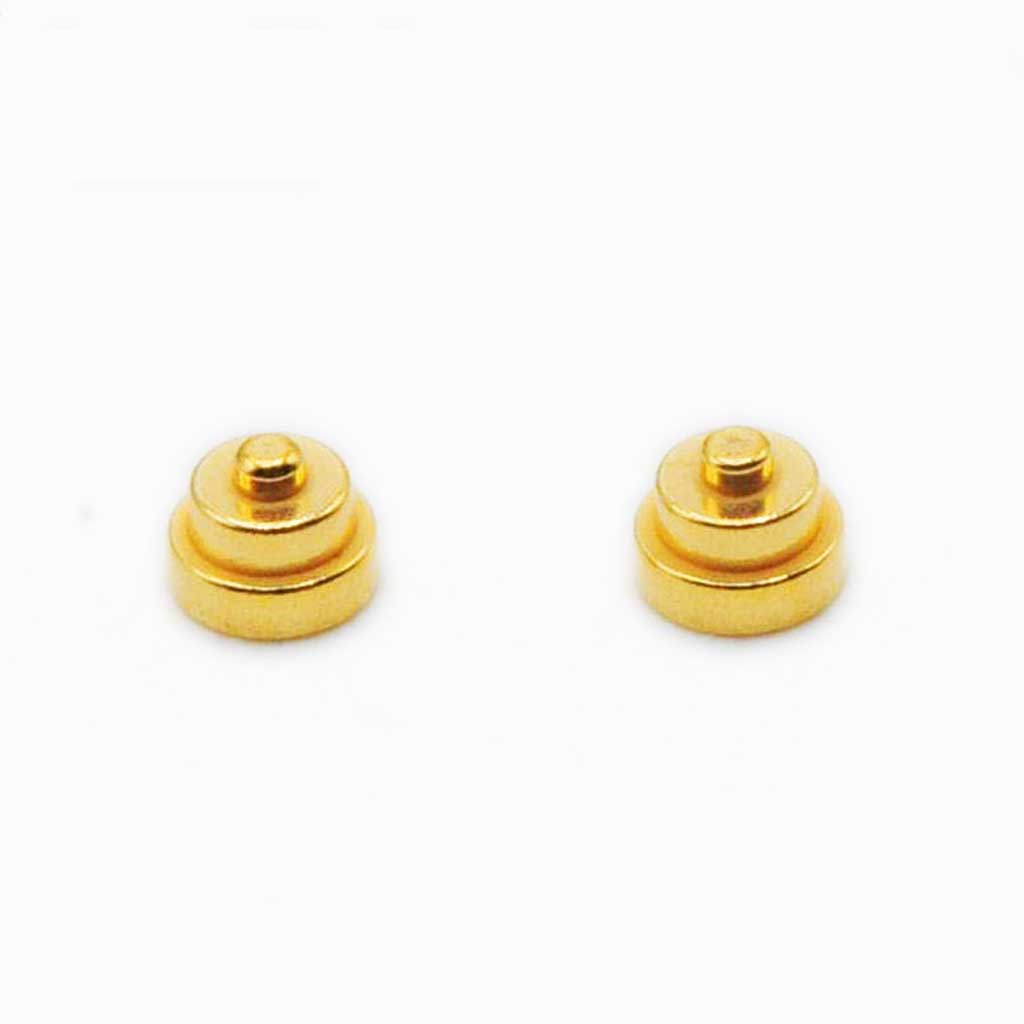

micro pogo pin connector, DiameterΦ 1.2mm

micro pogo pin connector pogo pin pogo pin connector pogo pins

micro pogo pin connector, DiameterΦ 1.2mm

$0.12

8240 in stock

  • Working Stroke
    1.05 mm
  • DiameterΦ
    1.2mm
  • Force
    40土12gf

Description


micro pogo pin connector, DiameterΦ 1.2mm

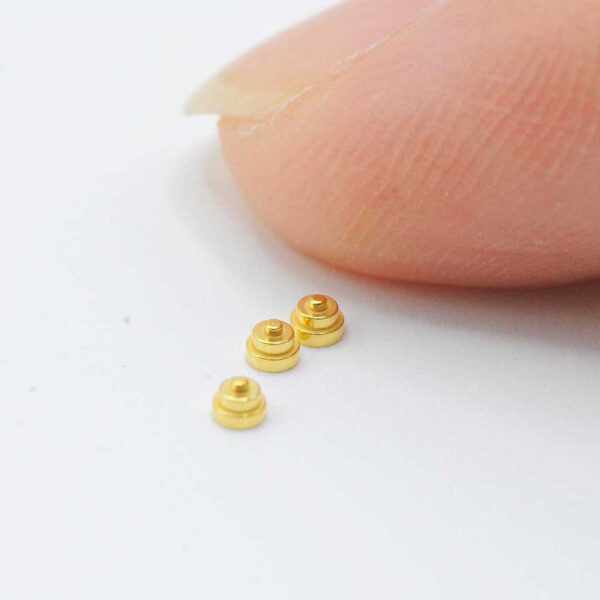

Very small size, but does not take up too much structural space, can save space for other parts, easy to layout, long service life, easy to install, very widely used, support customization, welcome to contact us to order or buy off-the-shelf.

Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Electrical performance
    <2.1>Current rating: 0.8A.
    <2.2>Voltagerating: 36VAC/DC.
    <2.3>ContactResistance: 50mOhm Max.
3 Environmental performance
    <3.1>ROHS compliant.
    <3.2>Operating Temperature range:-40C~+85C.
    <3.3>Withstanding High Temperature:260C/10Sec
4 Packaging:Carrier tape.

Product Feature
micro pogo pin connector
micro pogo pin connector
pogo pins
pogo pins
pogo pin connector
pogo pin connector
pogo pin
pogo pin

Drawings

micro pogo pin connector drawing
micro pogo pin connector drawing

Drawing download 112       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “micro pogo pin connector, DiameterΦ 1.2mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Stroke, 1.05 mm, DiameterΦ, 1.2mm, Pitch, 0, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 40土12gf
