3 pin pogo connector smt 3.2mm working height 2.8mm pitch

3 pin pogo connector pogo pin connectors 3 pin pogo connector pogo pin pcb connector

3 pin pogo connector smt 3.2mm working height 2.8mm pitch

$0.83

100 in stock

  • Work Height
    3.2 mm
  • Pitch
    2.8
  • Force
    120 ±25gf

Description

3 pin pogo pin connector



pogo pins connector manufacturer direct supply smt 3 pin pogo connector.
Adjustable demand requirements, different standards, waterproof pogo pins connector, anti-electrolytic pogo pin connectors. Please contact us to purchase and purchase items free of charge.



Drawing description


1 Demensions shall be interpreted per ASME Y14.5M
2 Mechanica performance(See the table 1)
    <2.1>The force is the average of forces obtained when plungergoes aownwaras ana upwaras.
3 Electrica performance
Resistance:50mOhm Max.Current rating: 2.0A
4 Packaging Spec.Comformance to EIA 481
5 RoHS compliant

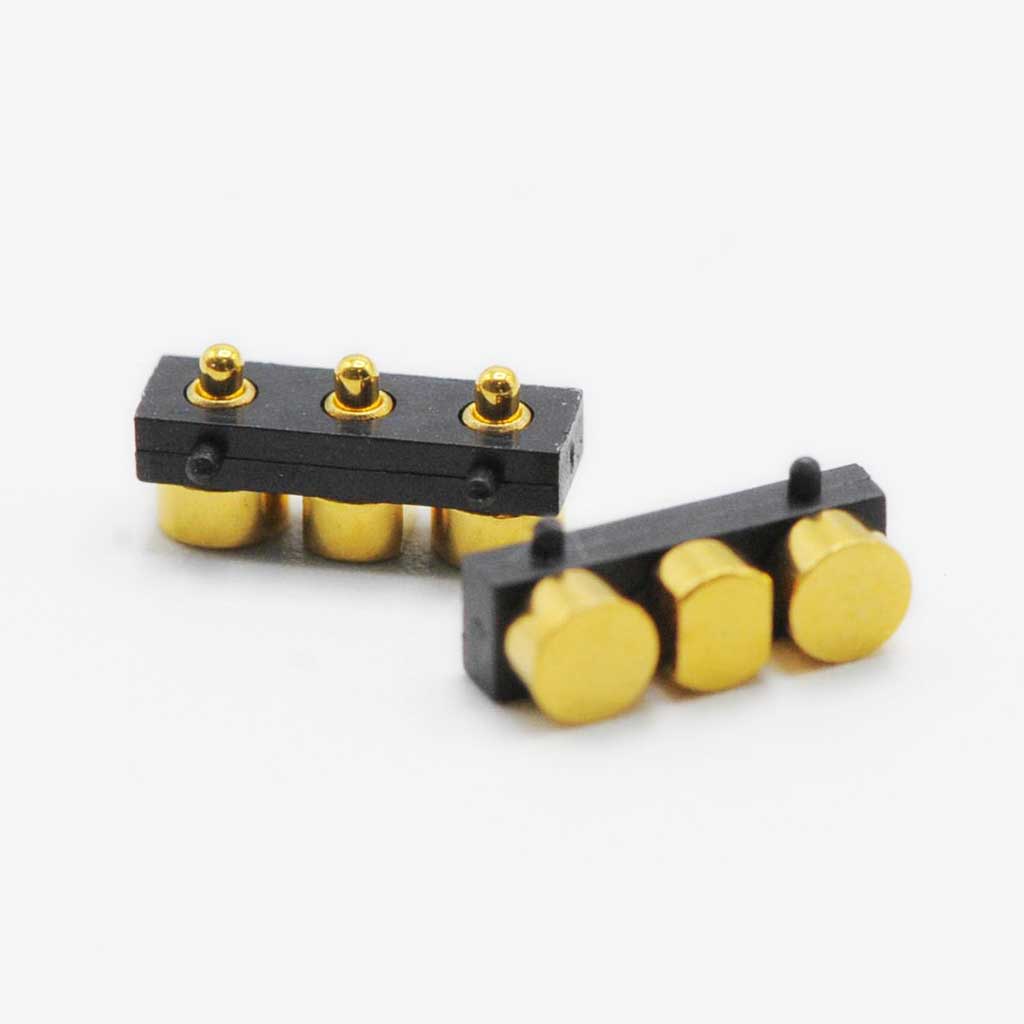

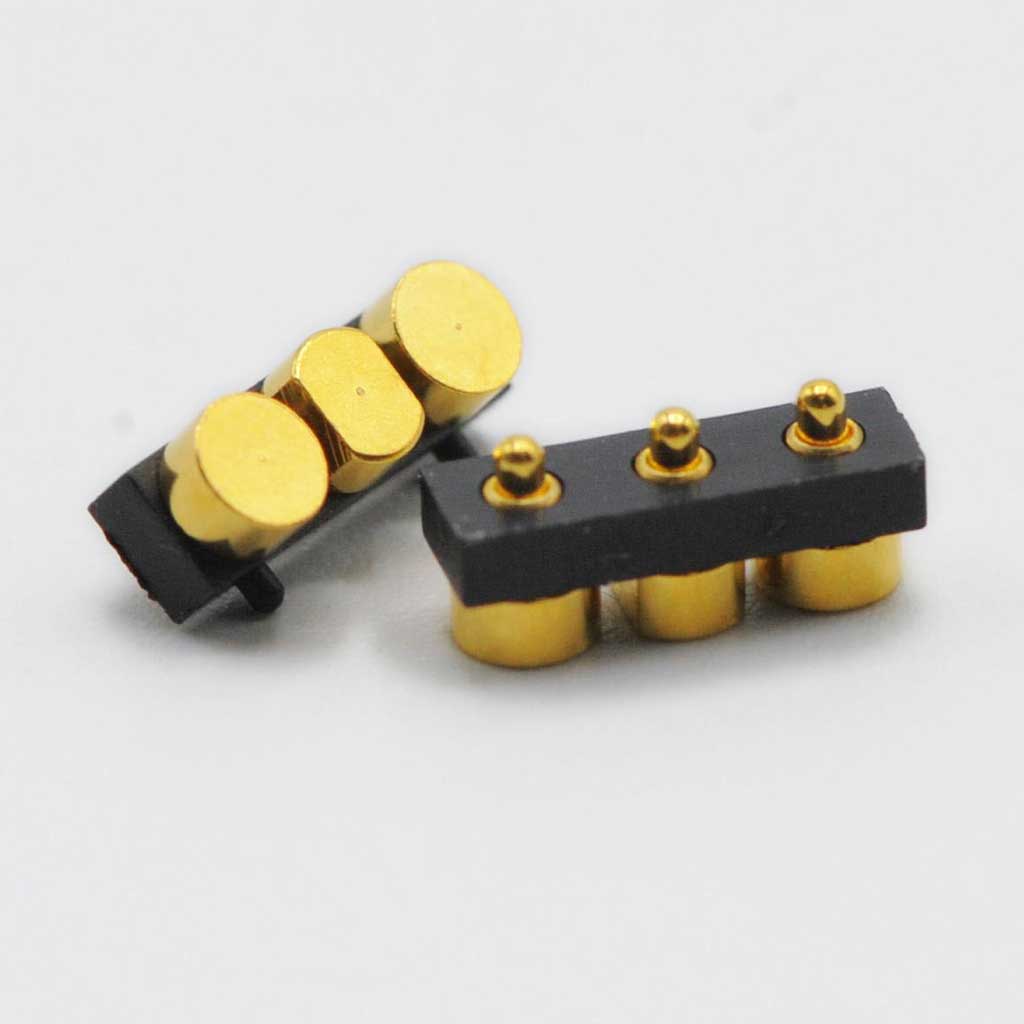

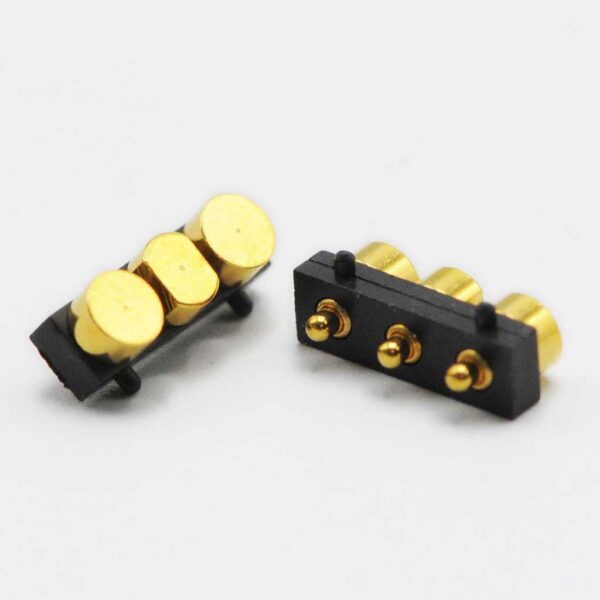

Product Image


pogo pin pcb connector
pogo pin pcb connector
pogo pin connector
pogo pin connector
3 pin pogo connector
3 pin pogo connector
pogo pin connectors
pogo pin connectors
pogo pins connector
pogo pins connector

Drawings

3 pin pogo connector drawing images
3 pin pogo connector drawing images

Drawing download 73       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “3 pin pogo connector smt 3.2mm working height 2.8mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 3.2 mm, Pitch, 2.8, Pin Amount, 3 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 120 ±25gf
