10 pin pogo connector 4.50mm working height, Customized products

pogo pin connector pogo connector 10 pin pogo connector pogo pin connector (10-point)

10 pin pogo connector 4.50mm working height, Customized products

$4.14

500 in stock

  • working height
    4.5mm
  • diameter
    0.7mm
  • Force
    40 ±15gf

Description



10 pin pogo connector 4.50mm working height, Non-standard products, special layout. Other layouts or different working heights can be customized, please contact us for a free electronic product catalog or product customization.



Drawing description


1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See table 1)
    <2.1>The force is the average of forces obtained when the plunger goes downwards and upwards
    <2.2>Warning: Working height is not permitted to be less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating:36VAC/DC
    <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
    <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
    <41> RoHS2.0 compliant
    <4.2>Operating Temperature range:-40°C~+85°C
    <4.3>Withstanding High Temperature:260°C/10Sec
5 Packaging: Carrier tape

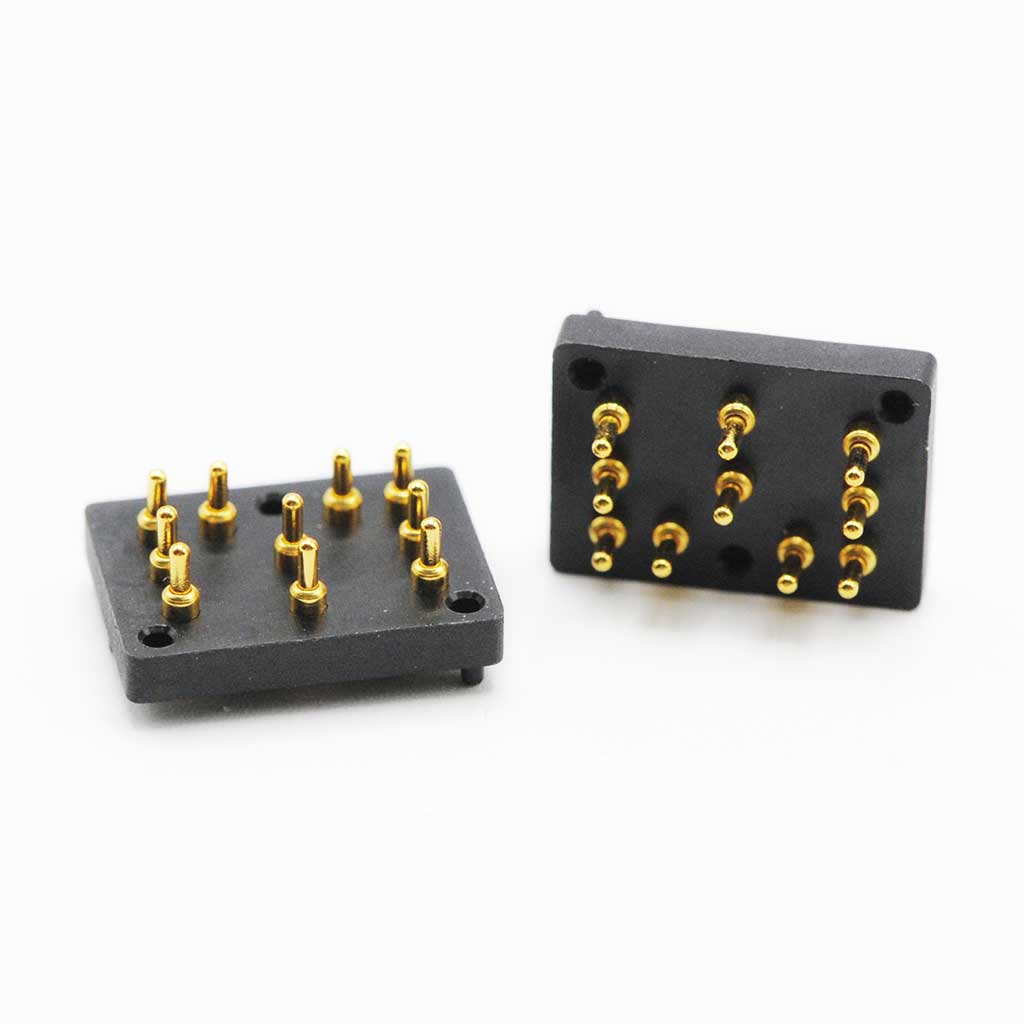

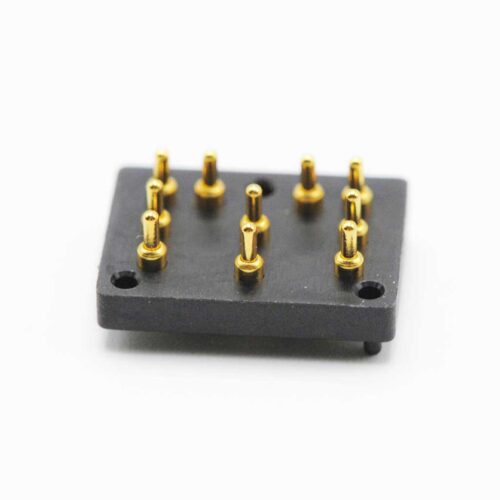

Product Image

pogo pin connector
pogo pin connector
10 pin pogo pin connector
10 pin pogo pin connector
pogo pin connector (10-point)
pogo pin connector (10-point)
10 pin pogo connector
10 pin pogo connector
pogo connector
pogo connector

Drawings

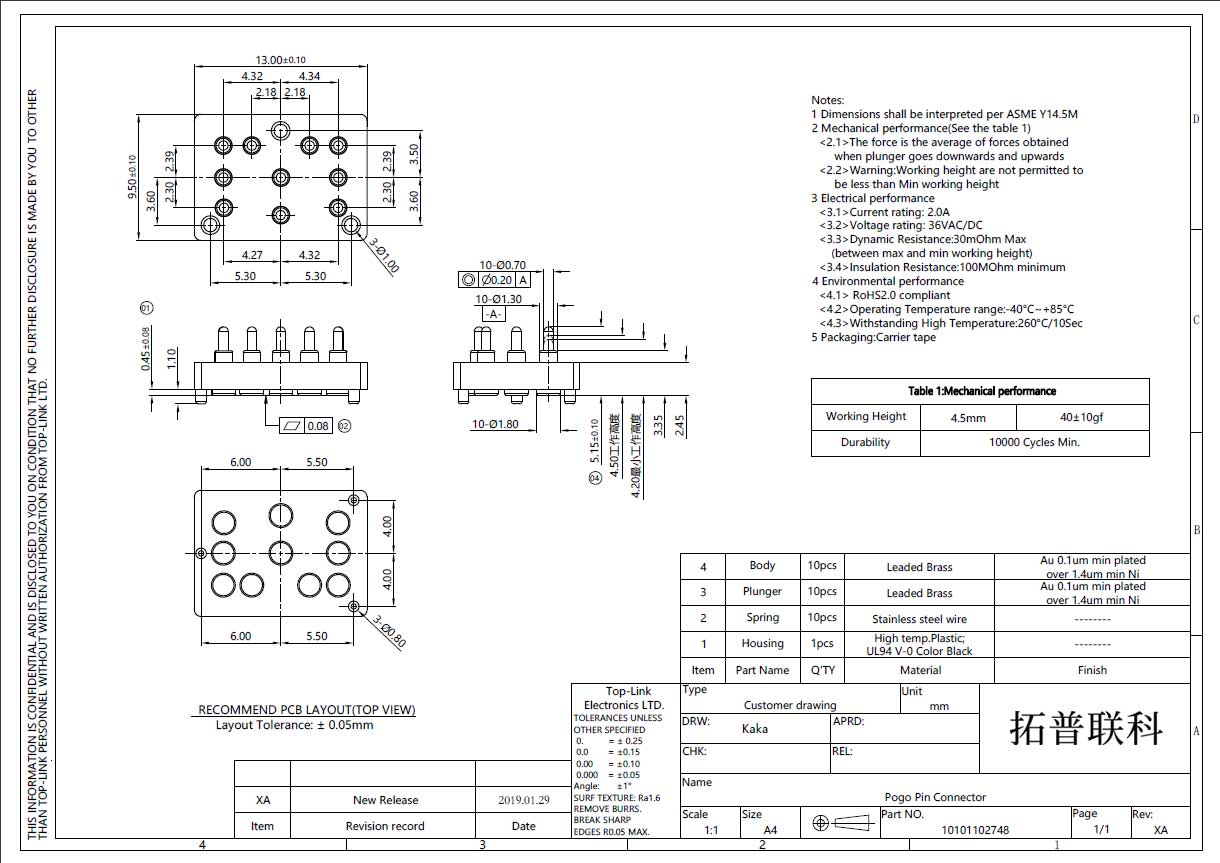

10 pin pogo pin connector drawing
10 pin pogo pin connector drawing

Drawing download 55       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “10 pin pogo connector 4.50mm working height, Customized products”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 4.5mm, diameter, 0.7mm, Pin Amount, 10 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 40 ±15gf
