double row 6 pin pogo pin connector 2.54mm pitch

double row 6 pin pogo pin connector pogo pin connector (6-point) pogo pin connector 6 pin pogo pin connector pitch 2.54mm pogo pin connector

double row 6 pin pogo pin connector 2.54mm pitch

$1.21

565 in stock

  • working height
    4.8mm
  • pitch
    2.54mm
  • Force
    40 ±15gf

Description



pitch 2.54mm double row 6 pin pogo pin connector. Standard size, high current pogo pin can be customized, waterproof design (IPX8), surface plating: electrolysis resistance, corrosion resistance treatment. Request a free product catalog Contact us now.



Drawing description


    Material Housing: PA 4.6(30% Glass Filled ) Color Black.
    Contact: BrassSpring: Stainless steel wire
2 Plating:
    Plunger: 0.05um Pd plating over 0.25um Pd Ni plating over 1.4um Ni(Plunger: Ni 1.4um , Pd Ni 0.25um Pd 0.05um)
    Body:0.05um Pd plating over 0.25um Pd Ni plating over 1.4um Ni(Body: Ni 1.4um m Pd Ni 0.25um , Pd 0.05um)
3 Mechanical Force: Max 60gf per pin at 0.7mm stroke
    Total stroke: 1.00mm
    Durability: 10,000 cycle min.



Product Image

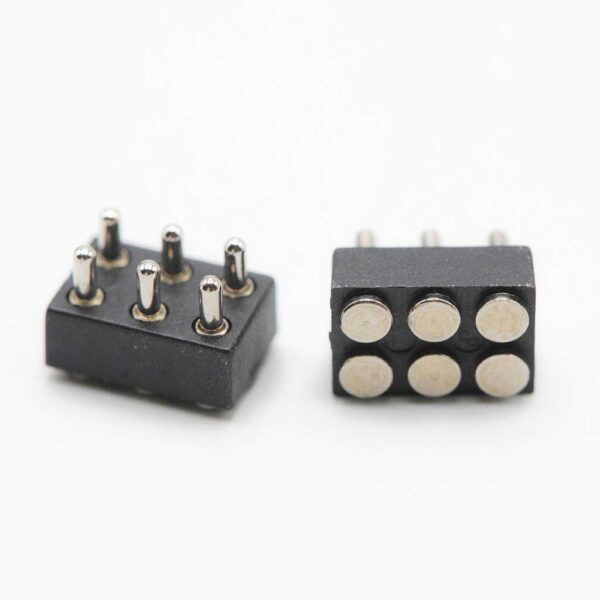

pitch 2.54mm pogo pin connector
pitch 2.54mm pogo pin connector
6 pin pogo pin connector
6 pin pogo pin connector
double row 6 pin pogo pin connector
double row 6 pin pogo pin connector
pogo pin connector
pogo pin connector
pogo pin connector (6-point)
pogo pin connector (6-point)

Drawings

6 pin pogo pin connector drawing images
6 pin pogo pin connector drawing images

Drawing download 93       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “double row 6 pin pogo pin connector 2.54mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 4.8mm, pitch, 2.54mm, Pin Amount, 6 pins, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 40 ±15gf
