1 Dimensionsshall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
<2.1>The force is the average of forcesobtainedwhen plunger goes downwards and upwards
<2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
<3.1>Current rating: 0.5A
<3.2>Voltage rating: 36VAC/DC
<3.3>Contact Resistance:30mOhm Max(at working height)
<3.4>Insulation Resistance:10MOhm minimum
4 Environmental performance
<4.1>Operating Temperature range:-40C~+85C
5 Environmental protection requirement
<5.1>RoHS compliant
6 Packaging:Bag
Physical photos:

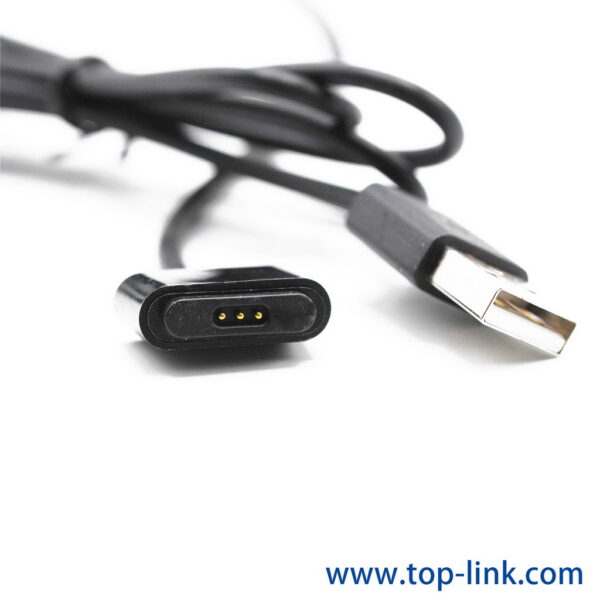

3 pin magnetic pogo pin usb charging cable3 pin magnetic charging cable3 pin usb charging cablemagnetic 3 pogo pin connector3 pin magnetic connector
