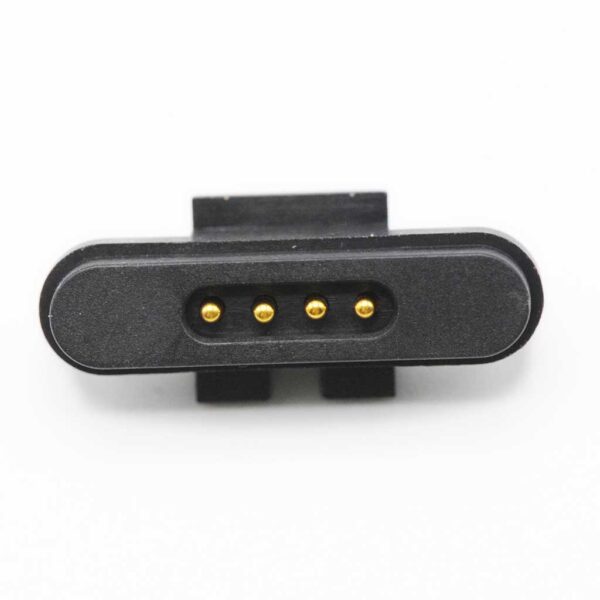

4 pin magnetic pogo pin connectors
Magnetic pogo pin connector High current (5-30A)， 4.3mm working height pogo pin manufacturer，Magnetic Connectors
Drawing description
1 Dimensionsshall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
<2.1> The force is the average of forces obtainedwhen plunger goes downwards and upwards
<2.2> Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
<3.1> Current rating: 2.0A
<3.2> Voltage rating: 36VAC/DC
<3.3> Quiescence Resistance:30 mOhm Max(at working height)
4 Environmental performance
<4.1> RoHS compliant
<4.2> Operqting Temperature range:-40C~+85C
<4.3> Withstanding High Temperature:260C/10Sec
5 Packaging:Carrier tap.
Product Image
