5 pin spring-loaded magnetic pogo pin connector, Working height 4.60mm

5pin spring-loaded magnetic pogo pin connector spring-loaded magnetic pogo pin connector magnetic pogo pin connector spring-loaded magnetic pogopin connector spring loaded magnetic connector

5 pin spring-loaded magnetic pogo pin connector, Working height 4.60mm

$4.74

566 in stock

  • Working Height
    4.60 mm
  • Pin Amount
    5 Pins
  • Force
    60 ±15 gf

Description



5 pin magnetic pogo pin connector, Working height 4.60mm, Rated Current 2.00 A

Magnetic pogo pin connector, this is a wire terminal, and there is a matching board terminal, the standard current is 2A, the maximum voltage is Dc 36v, different pin numbers, appearance, elasticity, and magnetic force can be customized. Please contact us for specific needs.



Drawing description

Notes:
1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
    <2.1>The force is the average of forcesobtainedwhen plunger goes downwards and upwards
    <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrical performance
    <3.1>Current rating: 2.0A
    <3.2>Voltage rating: 36VAC/DC
    <3.3>Contact Resistance:30mOhm Max(At working height)
    <3.4>Insulation Resistance:100MOhm minimum 4 Environmental performance
    <4.1> RoHS compliant
    <4.2>Operating Temperature range:-40·C~+85C
5 Packaging:Bag



Product photo

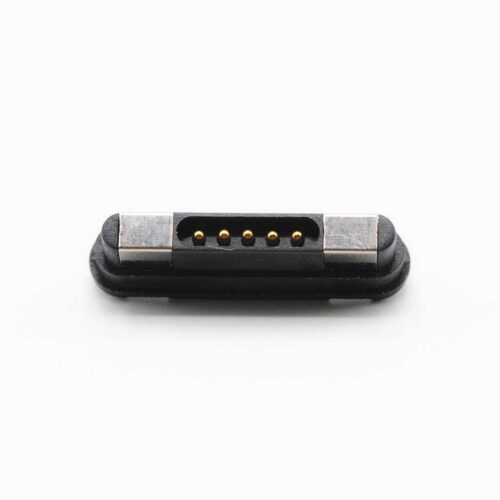

spring-loaded magnetic pogo pin connector
spring-loaded magnetic pogo pin connector

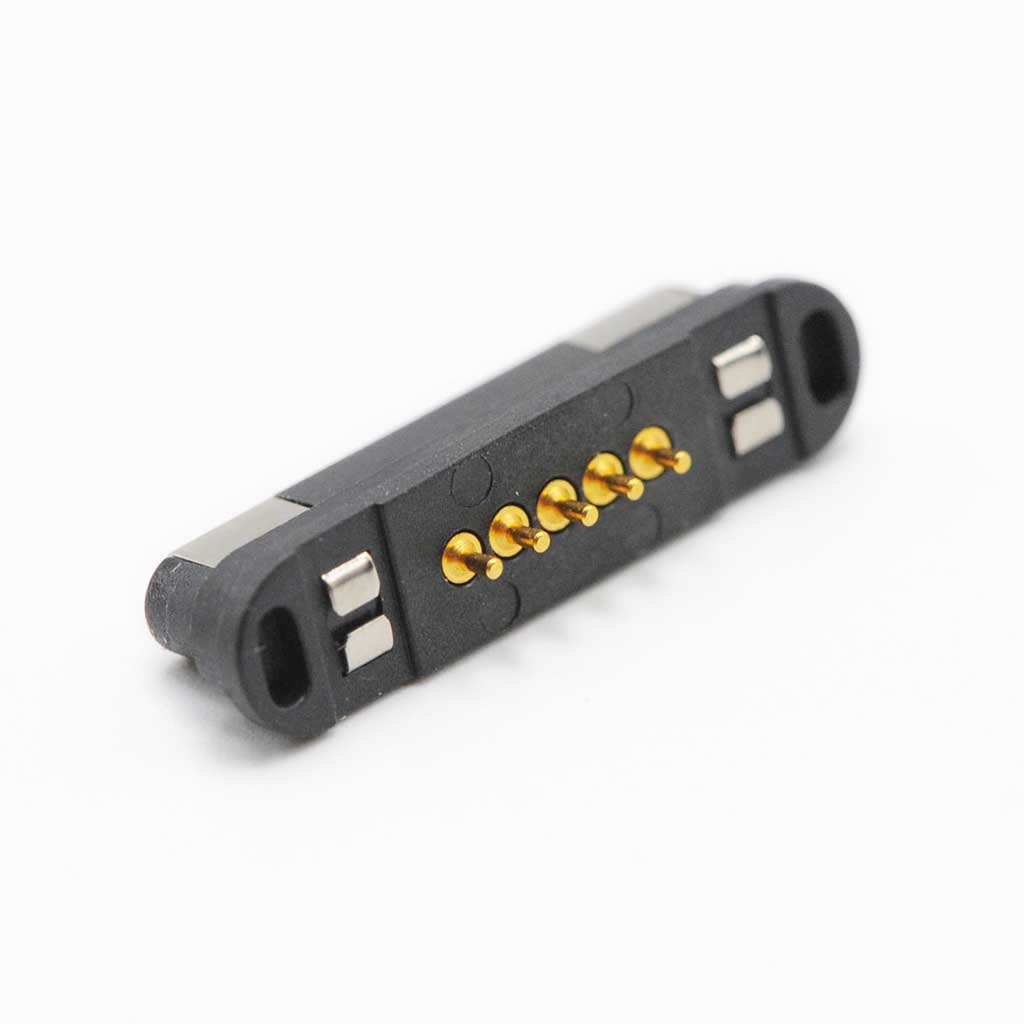

5pin spring-loaded magnetic pogo pin connector
5pin spring-loaded magnetic pogo pin connector

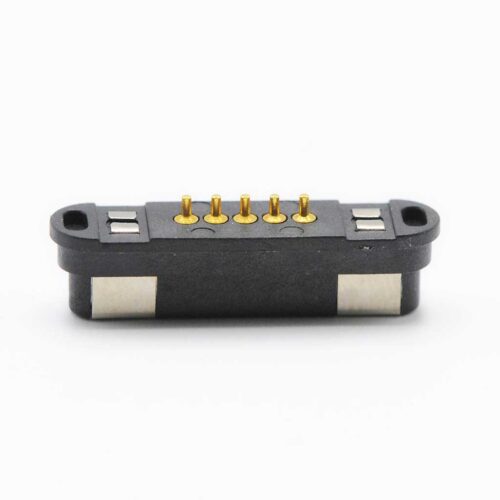

magnetic pogo pin connector
magnetic pogo pin connector

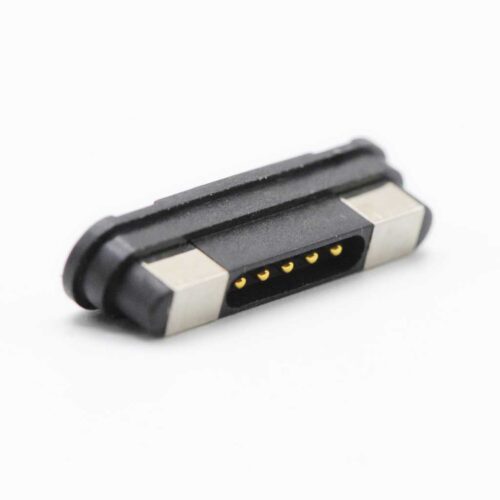

spring-loaded magnetic pogopin connector
spring-loaded magnetic pogopin connector

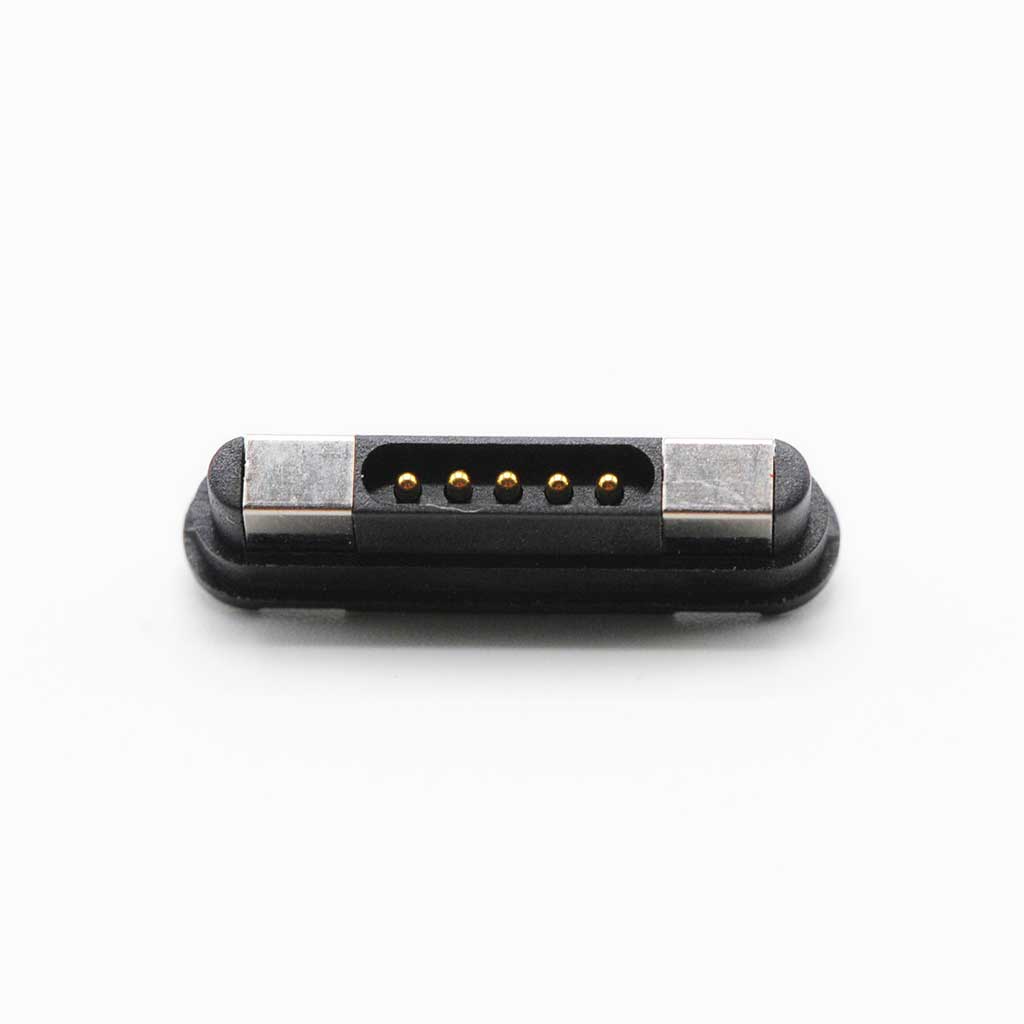

spring loaded magnetic connector
spring loaded magnetic connector

Drawings

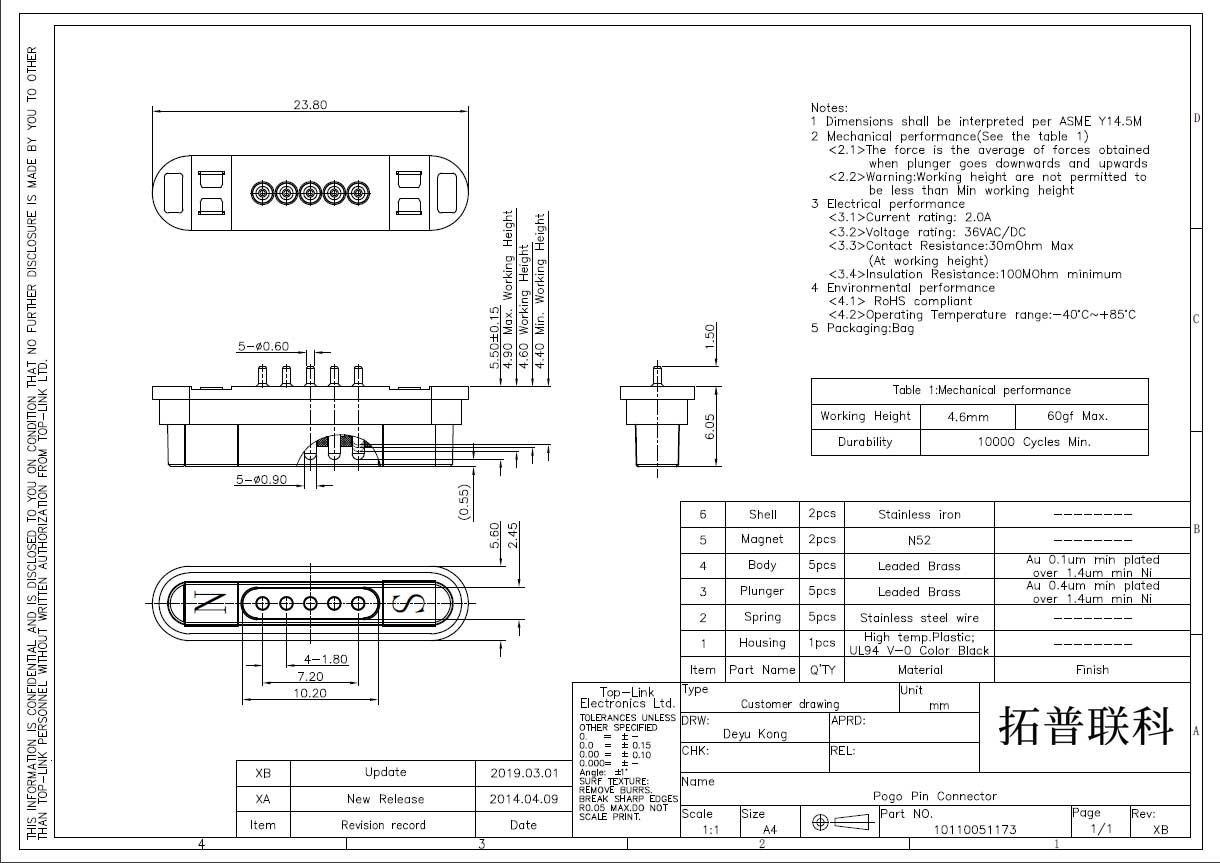

spring-loaded magnetic pogopin connector drawing
spring-loaded magnetic pogopin connector drawing

Drawing download 114       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “5 pin spring-loaded magnetic pogo pin connector, Working height 4.60mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Working Height, 4.60 mm, Pin Amount, 5 Pins, Pitch, 1.80 mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 2.00 A, Rated Voltage, 36 V, Force, 60 ±15 gf
