Pogo Pin Characteristics
Common structure of pogo pin
Pogo pin contact principle
Characteristics
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on PCB
- Good performance on RF solution
- RoHS and Halogen Free
Common internal structure of Pogo Pin
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Contact stability | ★ ★ ★ ★ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ★ ★ |
| Processing cost | ★ ★ ★ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ★ ★ ☆ |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |

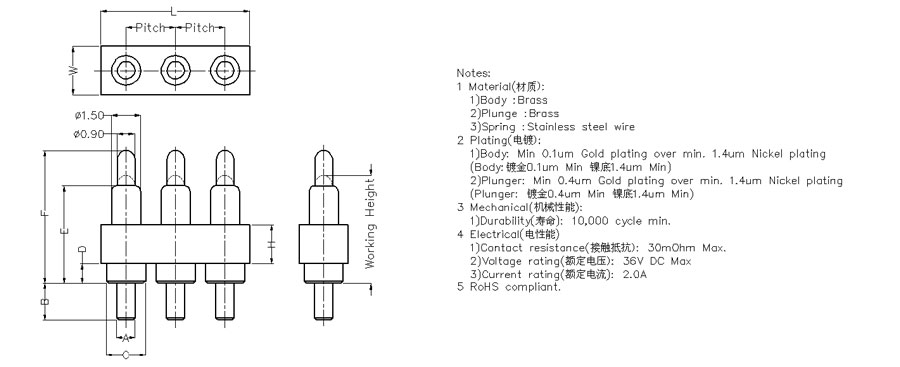

Product Model
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| 1 | 100351-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 1.6 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 2 | 100172-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 1.65 | 0.6 | 2.4 | 3.2 | 2.7 | 70 Min | |
| 3 | 100282-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.4 | 2.5 | 3.5 | 2.9 | 100±30 | |
| 4 | 100145-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.4 | 2.7 | 3.8 | 3.1 | 80±30 | |
| 5 | 100424-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4 | 3.2 | 140±30 | |
| 6 | 110341-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 1.9 | 0.9 | 2.9 | 4.2 | 3.3 | 100 Min | |
| 7 | 100189-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.35 | 90 Min | |
| 8 | 100324-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.3 | 4.6 | 3.8 | 80+60/-20 | |
| 9 | 100130-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 3.8 | 60±15 | |
| 10 | 100226-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 4.8 | 3.8 | 80 Min | |
| 11 | 100085-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.9 | 80±20 | |
| 12 | 100782-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 35±15 | |
| 13 | 100453-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4.2 | 80±20 | |
| 14 | 100130-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4.2 | 45±10 | |
| 15 | 100176-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 125±30 | |
| 16 | 100773-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 35±15 | |
| 17 | 100773-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 35±15 | |
| 18 | 100774-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 19 | 1001101-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 6 | 5 | 80 Min | |
| 20 | 100635-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4.5 | 6 | 5 | 90 Min | |
| 21 | 110867-3 | 10.5 | 2.5 | 1.5 | 2.54 | N | N | 2 | 0.5 | 4.5 | 6.3 | 5.1 | 95 Min | |
| 22 | 100632-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 6 | 5.2 | 65±20 | |
| 23 | 10101031148 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 1.8 | 1.3 | 4.5 | 6.8 | 5.5 | 90 Min | |
| 24 | 100204-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5 | 7 | 5.5 | 157±30 | |
| 25 | 110734-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 2 | 1 | 5.5 | 7.5 | 5.9 | 80±25 | |
| 26 | 110866-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 2 | 0.5 | 5.2 | 7 | 6.2 | 90 Min | |
| 27 | 110317-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 28 | 110736-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 2 | 1 | 5 | 7.3 | 6.5 | 90±20 | |
| 29 | 110406-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 2 | 1.6 | 7.2 | 9 | 8 | 100±30 | |
| 30 | 100255-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 31 | 100699-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.5 | 3.5 | 2.9 | 100±30 | |
| 32 | 100110-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.5 | 120±25 | |
| 33 | 100430-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.6 | 180 Max | |
| 34 | 100234-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3.5 | 4.8 | 3.8 | 80 Min | |
| 35 | 100418-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 150±30 | |
| 36 | 100521-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 30±15 | |
| 37 | 100147-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 65±25 | |
| 38 | 100601-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 30±10 | |
| 39 | 100712-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 5.8 | 4.8 | 90 Min | |
| 40 | 110227-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 41 | 100546-3 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 1 | 5 | 7 | 6 | 115±30 | |
| 42 | 110368-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 2 | 1.5 | 6 | 7.6 | 6.6 | 100±30 | |
| 43 | 110672-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 2 | 1.5 | 6 | 8.5 | 7 | 140±25 | |
| 44 | 110530-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 2 | 1.8 | 7.2 | 10 | 9 | 100±25 | |
| 45 | 110755-3 | 10.5 | 2.5 | 1.5 | 4 | N | N | 2 | 1.6 | 7.2 | 9 | 8 | 100±30 | |
| 46 | 100867-3 | 10.5 | 2.5 | 1.5 | 4 | Y | N | 2 | 0.5 | 4.5 | 6.3 | 5.1 | 90 Min | |
| 47 | 10101031350 | 10.5 | 2.5 | 1.5 | 4 | Y | N | 2 | 0.5 | 3.2 | 4.5 | 3.6 | 80 min | |
| 48 | 10101031317 | 10.5 | 2.5 | 1.5 | 4 | Y | N | 2 | 1.9 | 6.5 | 8.5 | 7.15 | 168±30 | |
| 49 | 110713-3 | 12.76 | 2.5 | 2 | 5.08 | N | N | 2 | 1.6 | 7.2 | 9 | 8 | 100±30 | |
| 50 | 110667-3 | 17.78 | 2.54 | 2.4 | 7.62 | N | N | 2 | 0.5 | 3 | 4 | 3.2 | 140±35 | |
| 51 | 10101031724 | 12.5 | 2.5 | 1.8 | 4.3 | Y | Y | 1.8 | 0.3 | 2.1 | 2.9 | 2.3 | 70±20 | |
| 52 | 10101031226 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 6 | 5 | 80 min | |
| 53 | 10101031271 | 7.6 | 2.5 | 1.5 | 2.54 | Y | Y | 2 | 0.5 | 5 | 6.5 | 5.5 | 90 min | |
| 54 | 100736-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5 | 7.3 | 6.5 | 90±25 | |
| 55 | 10101031986 | 8.5 | 2.5 | 1.5 | 3 | Y | N | 2 | 3.8 | 7.7 | 9.5 | 8.5 | 60±15 | |
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| 1 | 110383-3 | 9.8 | 6.8 | 1.5 | 1.6 | N | N | 0.8 | 1.5 | 1.3 | 0.3 | 3.8 | 4.8 | 3.98 | 30+20/-10 | |
| 2 | 110439-3 | 14.7 | 5.9 | 2.26 | 2.5 | N | N | 0.8 | 1 | 2 | 0.5 | 3 | 4.3 | 3.3 | 100±30 | |
| 3 | 110439-3 | 14.7 | 5.9 | 2.26 | 2.5 | N | N | 0.8 | 1 | 2 | 0.5 | 3.4 | 4.9 | 3.9 | 130±30 | |
| 4 | 100169-3 | 7.6 | 2.5 | 1.5 | 2.54 | Y | N | 1 | 1 | 2 | 0.4 | 2.7 | 3.6 | 2.9 | 95 Min | |
| 5 | 110551-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 0.8 | 2 | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 6 | 110573-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 0.45 | 0.9 | 1.9 | 1 | 4 | 5.5 | 4.6 | 90±35 | |
| 7 | 110583-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 1 | 1 | 2 | 0.5 | 3.5 | 5 | 4 | 135-30/+40 | |
| 8 | 110499-3 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 1.4 | 1.1 | 2 | 1.5 | 6.3 | 9.5 | 8 | 115±30 | |
| 9 | 10110031517 | 7.6 | 2.5 | 1.5 | 2.54 | N | N | 0.7 | 1.4 | 2 | 1 | 5 | 6.5 | 5.5 | 125±35 | |
| 10 | 110561-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 1 | 1 | 2 | 0.4 | 2.7 | 3.6 | 2.9 | 95 Min | |
| 11 | 110696-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 1 | 1 | 2 | 0.5 | 3.5 | 5 | 4.4 | 85±25 | |
| 12 | 110686-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 0.8 | 2 | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 13 | 110808-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 1 | 4 | 2 | 0.5 | 4.5 | 6 | 5 | 135±30 | |
| 14 | 110726-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 0 | 0 | 2 | 0.5 | 4 | 6 | 5.8 | 80 Min | |
| 15 | 110726-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 0.8 | 0.8 | 2 | 0.5 | 4 | 6 | 5.8 | 80 Min | |
| 16 | 110361-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 0.6 | 2 | 1.5 | 1.1 | 4.5 | 7 | 6 | 100 Min | |
| 17 | 110845-3 | 8.5 | 2.5 | 1.5 | 3 | N | N | 1 | 1.1 | 2 | 0.5 | 5.3 | 7.6 | 6.5 | 90 min | |
| 18 | 10101031855 | 7.4 | 2.5 | 1.2 | 2.4 | Y | N | 1.25 | 1 | 1.8 | 0.3 | 1.6 | 2.6 | 1.95 | 40±8 | |
