2-point small pogo pins connector 5.08mm pitch spring loaded pogo pins

2-point small pogo pins connector 2-point pogo pins connector 2 pin pogo connector 2 point pogo pin 2-point small pogo pins connector 2-point pogo pins

2-point small pogo pins connector 5.08mm pitch spring loaded pogo pins

Original price was: $0.92.Current price is: $0.87.

1 in stock

  • Work Height
    3.0 mm
  • Pitch
    5.08
  • Force
    unknown

Description



2-point small pogo pins connector
smt 5.08mm pitch 2-point spring loaded pogo pins connector, pogo pins connector manufacturer direct supply。Pogo pin connectors of different specifications can be customized, waterproof, electrolytic resistance, high current, small size can be customized。
Contact us for a free catalog and quote



Drawing description

1 Material,Housing:
    PA 4.6 (30% Glass Filled)
    Color Black.(UL94V-0)
    Contact: Brass
2 Mechanical demands:
    Plating plunger: Min 040Um Au over 25um Ni
    Platingbody: Min 01Um Au over 14um Ni

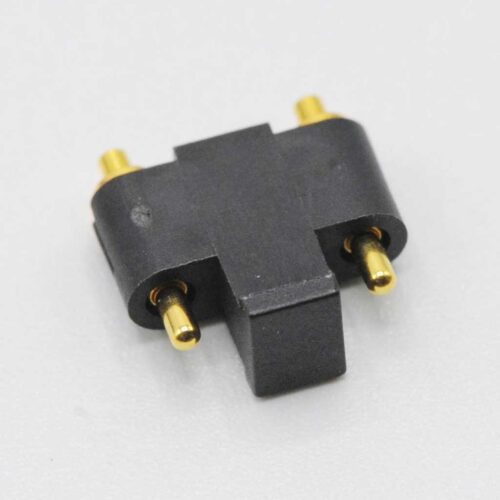

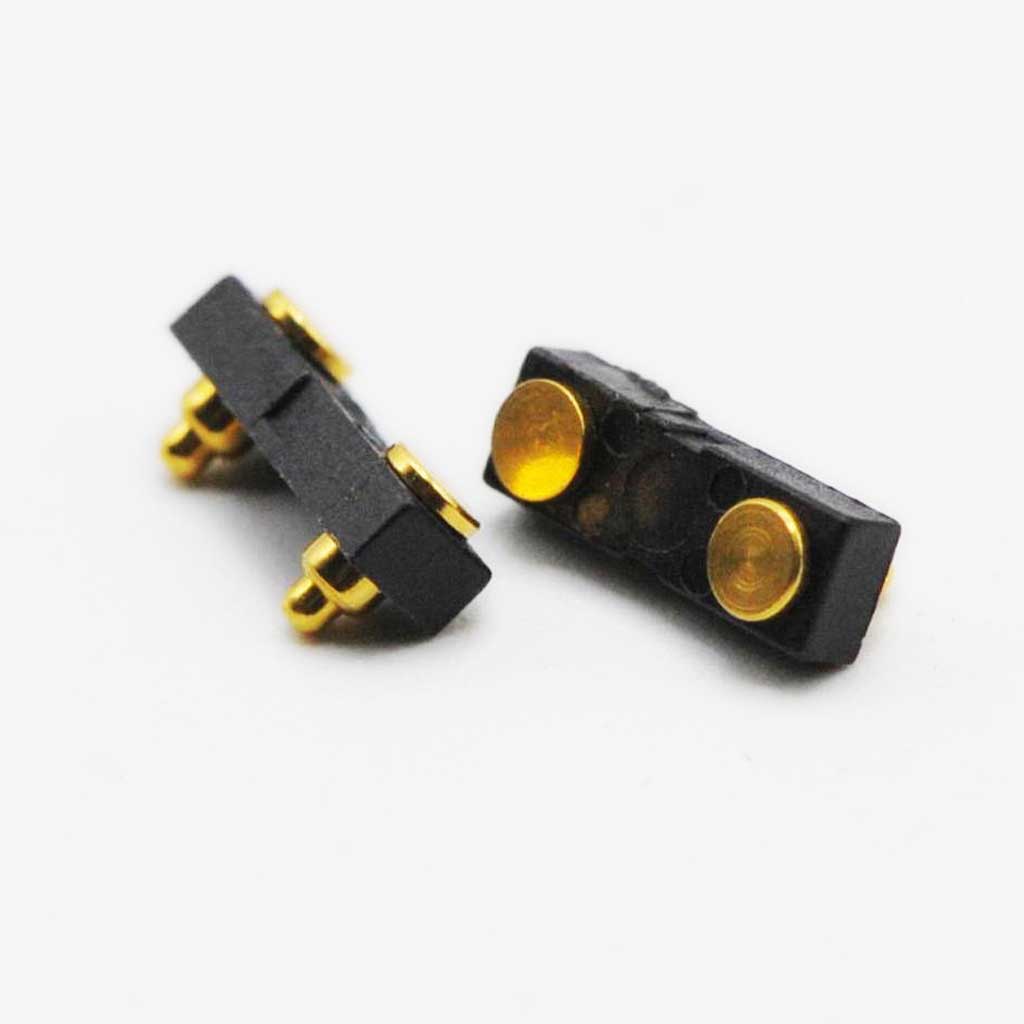

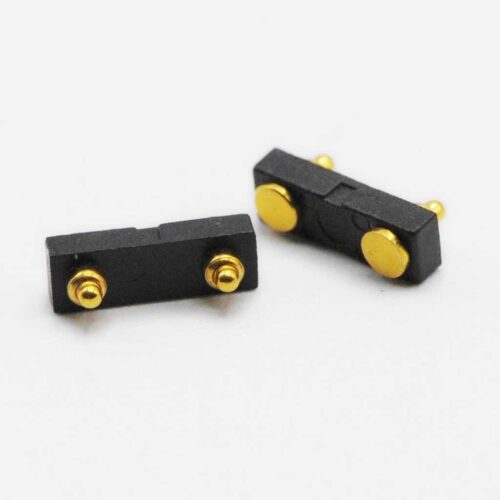

Product Image

2-point pogo pins
2-point pogo pins
2-point small pogo pins connector
2-point small pogo pins connector
2 point pogo pin
2 point pogo pin
2 pin pogo connector
2 pin pogo connector
2-point pogo pins connector
2-point pogo pins connector

Drawings

2-point small pogo pins connector drawing images
2-point small pogo pins connector drawing images

Drawing download 100       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “2-point small pogo pins connector 5.08mm pitch spring loaded pogo pins”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 3.0 mm, Pitch, 5.08, Pin Amount, 2 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, unknown
