2 pin spring loaded pogo pins, pogo connector, pitch 6.00mm

2 pin spring loaded pogo pins spring loaded connector 2 pin pogo pin connector pogo pin connectors pogo connector

2 pin spring loaded pogo pins, pogo connector, pitch 6.00mm

$0.72

6005 in stock

  • working height
    9.60mm
  • DiameterΦ
    1.50mm
  • Force
    none

Description


2 pin spring loaded pogo pins, pogo connector, pitch 6.00mm

2 pin pogo connector, working height 9.60mm, spacing 6.00mm, can be used for current connection or signal transmission, can be customized for high frequency, high speed transmission, high current pogo pin customization, welcome to contact us.

Notes:
1 Materlal,Housing: PA 4.6 (30% Glass Filled)
    Color Black.
    Contact: Brasse
2 Mechanical demands
    Plating Plunger: 0,5Um Au over 15um Ni.
    Platin9 Body: 0.125Um Au over 14um Ni.

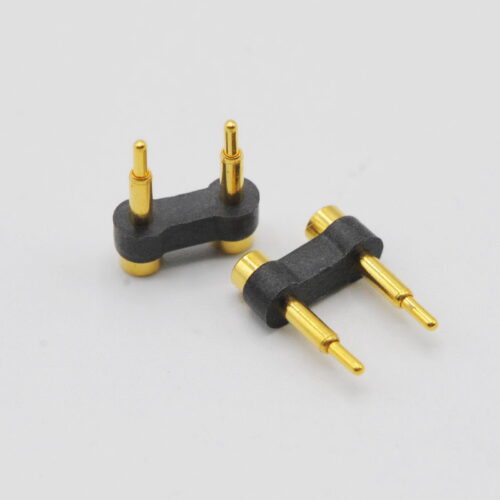

physical photos:
spring loaded connector
spring loaded connector

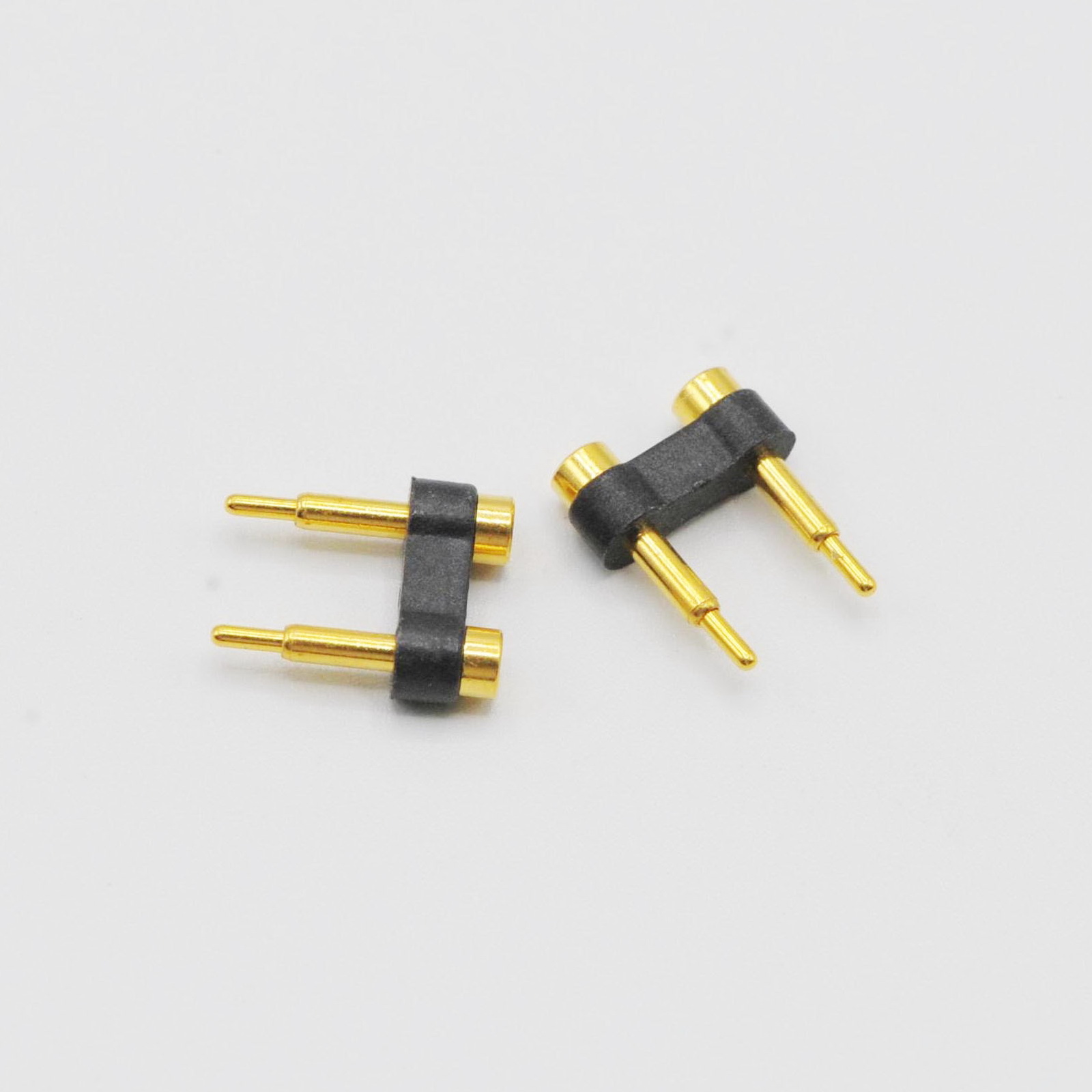

pogo pin connectors
pogo pin connectors
2 pin pogo pin connector
2 pin pogo pin connector

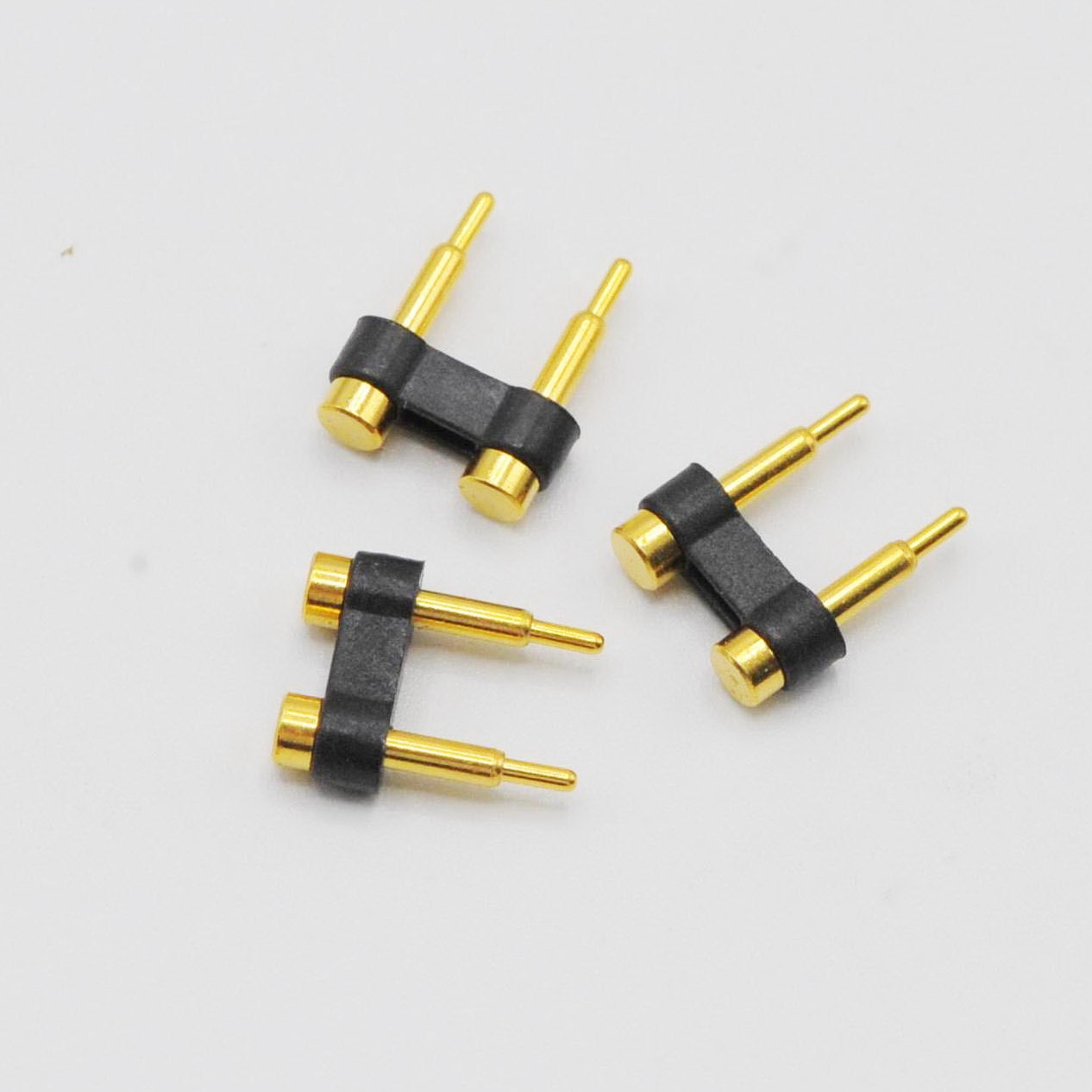

pogo connector
pogo connector
2 pin spring loaded pogo pins
2 pin spring loaded pogo pins

Drawings

2 pin spring loaded pogo pins drawing
2 pin spring loaded pogo pins drawing

Drawing download 100       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “2 pin spring loaded pogo pins, pogo connector, pitch 6.00mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

working height, 9.60mm, DiameterΦ, 1.50mm, pitch, 6.00mm, Durability, 10000 Cycles min, Lead Time, 25 Days, Rated Current, 1.0 A, Rated Voltage, 36 V, Force, none
