2 pin pogo connector working height 2.2mm pitch 3.5mm

2 pin pogo connector 2 pin pogo pin guide pins + 2-point pogo-pin 2 point pogo pin 2 pin pogo pin charger

2 pin pogo connector working height 2.2mm pitch 3.5mm

$0.61

145 in stock

  • Work Height
    2.2 mm
  • Pitch
    3.5
  • Force
    108 ±22gf

Description

2 pin pogo connector



circular pogo pins connector



Drawing description


1 Material,Housing; PA 46(30% Glass Filled)
  Color Black.
  Contacti Brass
2 Mechanical demands
  Plating Plunger: Min 04Um Au over 14um Ni
  Plating Body: Min 01Um A over 1.4um
  Spring Force: 108士22 gf



Product Image

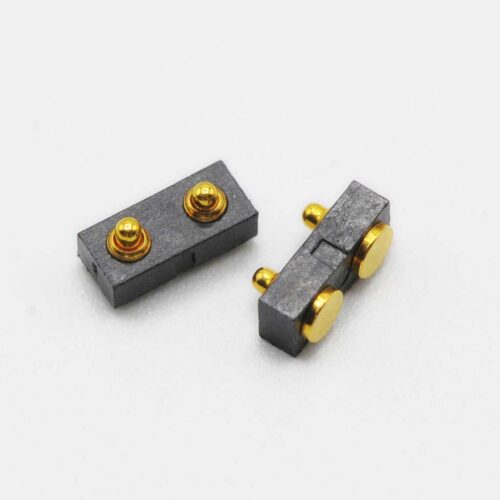

2 pin pogo pin
2 pin pogo pin

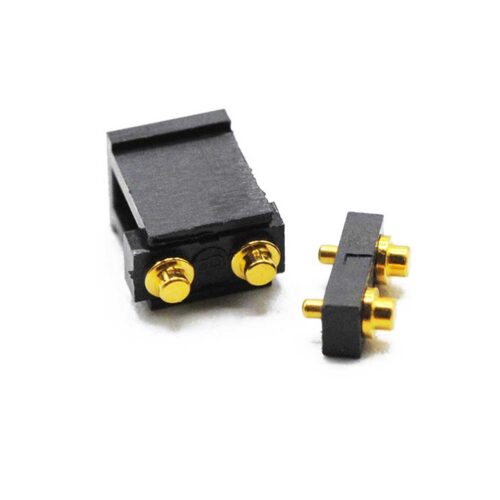

guide pins + 2-point pogo-pin
guide pins + 2-point pogo-pin
2 point pogo pin
2 point pogo pin

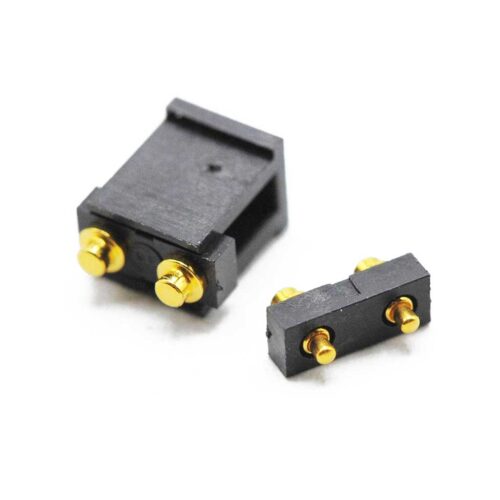

2 pin pogo pin charger
2 pin pogo pin charger

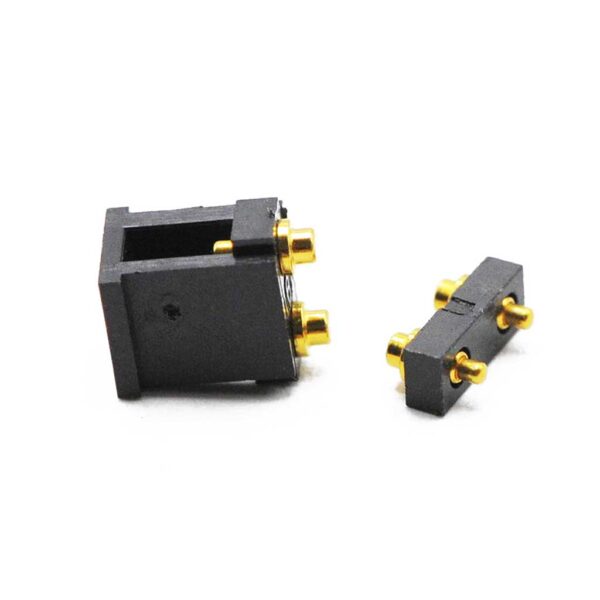

2 pin pogo connector
2 pin pogo connector

Drawings

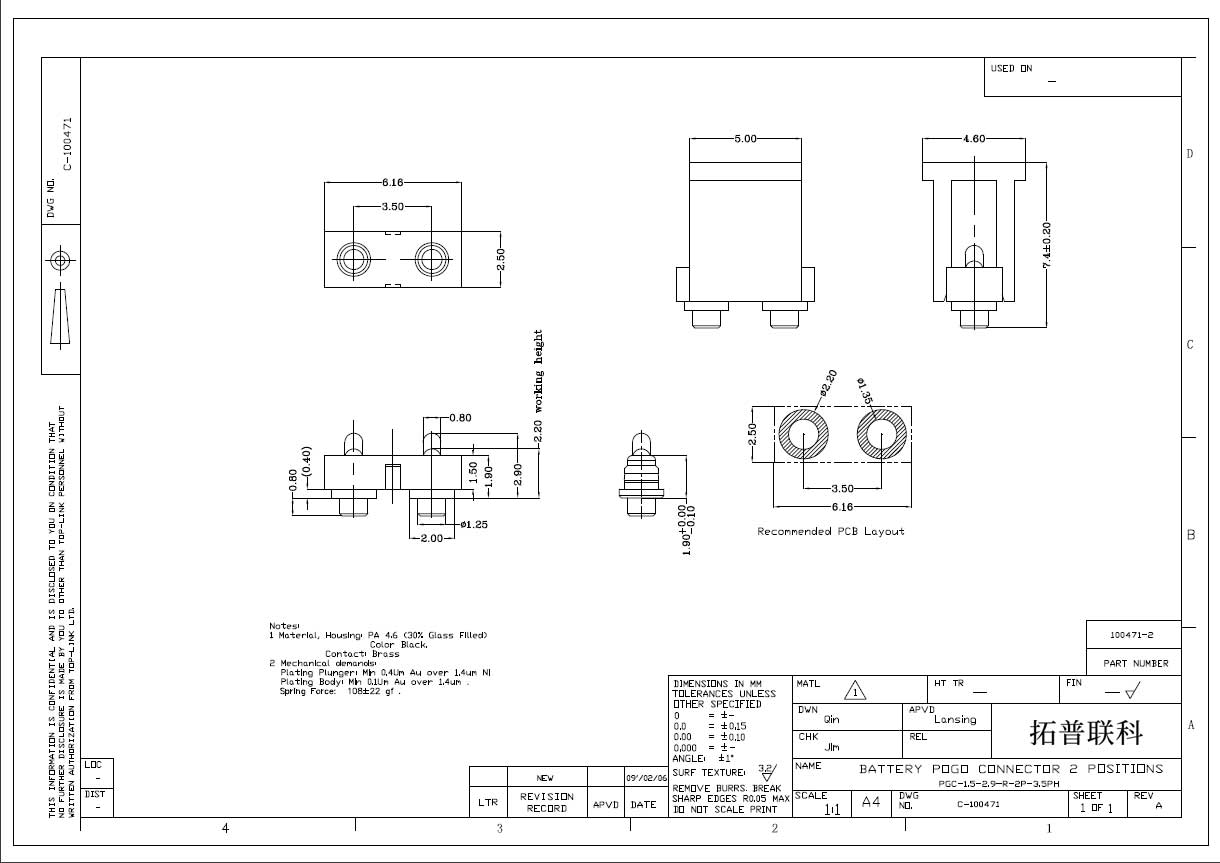

2 pin pogo connector drawing
2 pin pogo connector drawing

Drawing download 104       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “2 pin pogo connector working height 2.2mm pitch 3.5mm”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 2.2 mm, Pitch, 3.5, Pin Amount, 2 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 108 ±22gf
