2-point pogo pin connector 2.6mm working height 3.0mm pitch

2-point pogo pin pogo pin connector factory 2 pin pogo connector pogo pin connector 2 pin pogo connector

2-point pogo pin connector 2.6mm working height 3.0mm pitch

$1.17

825 in stock

  • Work Height
    2.6 mm
  • Pitch
    3.0 mm
  • Force
    70 ±20gf
SKU: 23000523 Category: , Tags:

Description



2-point pogo pin connector
2-point pogo pin connector, right angle pogo pin connector, china pogo pin connector,pogo pin connector factory,2.6mm working height 3.0mm pitch



Drawing description

1 Dimensions shall be interpreted per ASME Y14.5M
2 Mechanical performance(See the table 1)
  <2.1>The force is the average of forces obtainedwhen plunger goes downwards and upwards
  <2.2>Warning:Working height are not permitted tobe less than Min working height
3 Electrica performance
  <3.1>Current rating: 2.0A
  <3.2>Voltage rating: 36VAC/DC
  <3.3>Dynamic Resistance:30mOhm Max(between max and min working height)
  <3.4>Insulation Resistance:100MOhm minimum
4 Environmental performance
  <4.1> RoHS compliant
  <4.2>Operating Temperature range:-40·C~+85C
  <4.3>Withstanding High Temperature:260C/10Sec
5 Packaging:Carrier tape

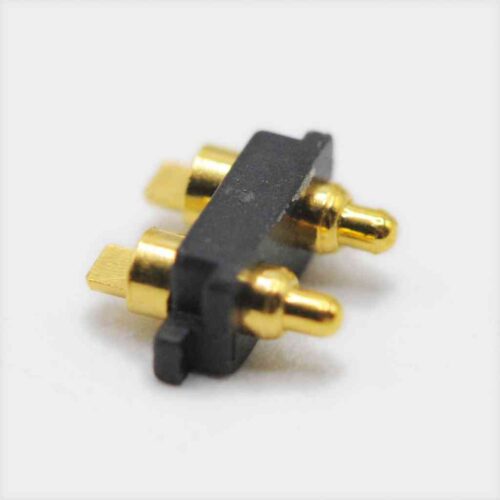

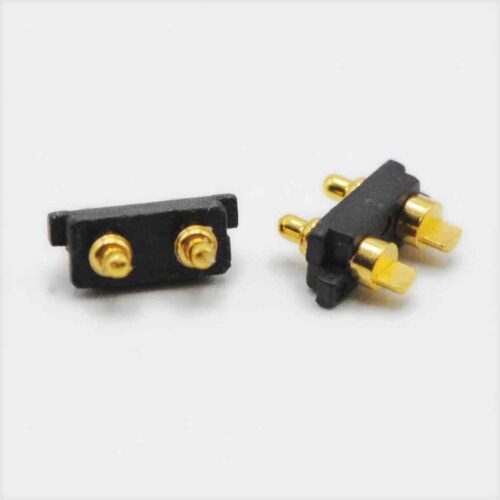

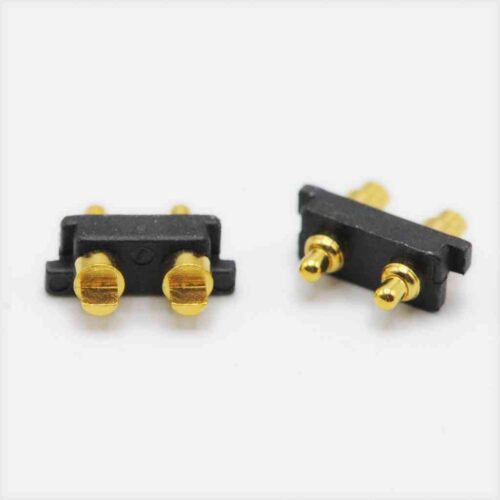

Product Image

2 pin pogo connector
2 pin pogo connector
pogo pin connector
pogo pin connector
2 pin pogo connector
2 pin pogo connector
2-point pogo pin
2-point pogo pin
pogo pin connector factory
pogo pin connector factory

Drawings

2-point pogo pin drawing images
2-point pogo pin drawing images

Drawing download 52       Inquire now       send mail now

Reviews

There are no reviews yet.

Be the first to review “2-point pogo pin connector 2.6mm working height 3.0mm pitch”

Your email address will not be published. Required fields are marked *

Additional information

Parameter

Work Height, 2.6 mm, Pitch, 3.0 mm, Pin Amount, 2 pins, Durability, 10,000 Cycles min, Lead Time, 25 Days, Rated Current, 2.0 A, Rated Voltage, 36 V, Force, 70 ±20gf
