In today’s technological era that pursues ultimate portability and efficient experience, TWS Bluetooth earphones have become an essential item in consumers’ daily lives with their wireless freedom. However, as the size of headphones continues to shrink, achieving efficient and stable charging in a compact body has become a key challenge in design. The magnetic charging solution has gradually become the preferred design for TWS earphones due to its advantages of small space occupation, fast charging speed, and precise contact. Through innovative technology, engineers at Top-link have elevated the magnetic charging experience to a whole new level.

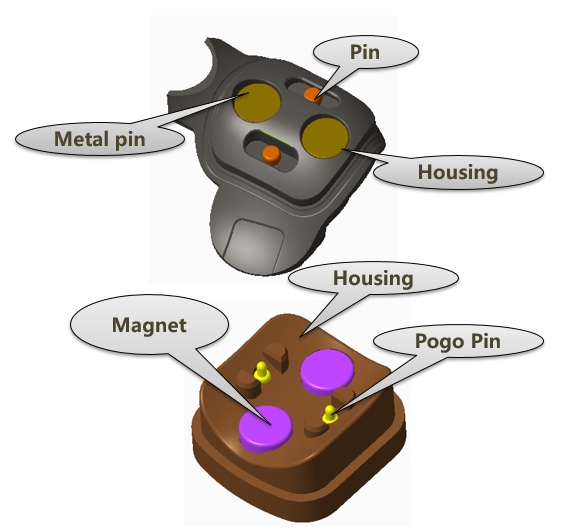

Design Case of Top-link TWS Magnetic Charging
The internal space of TWS earphones is extremely limited, and traditional charging interfaces often require a lot of space. However, the magnetic Pogo Pin charging solution cleverly solves this problem. Through the collaborative design of magnetic positioning and Pogo Pin conductivity, the earphones can quickly align the charging contacts, saving internal space and greatly improving the convenience of charging. Users only need to gently place the earphones close to the charging compartment, and the magnetic force will automatically attach and complete precise docking, bidding farewell to the tedious operation of repeated plugging and unplugging. This design not only optimizes the user experience, but also extends the lifespan of the charging interface and reduces wear and tear issues.
The core of magnetic charging lies in the efficient utilization of magnetic force. The R&D team of Top-link has significantly improved the stability and adsorption force of magnetic pairing through multiple technological breakthroughs. In terms of material selection, engineers prioritize the use of N52 grade magnets with extremely strong magnetic conductivity to ensure maximum magnetic field strength; Structurally, by increasing the effective surface area and thickness of the magnet, the attraction effect is further strengthened. At the same time, increasing the effective surface area of the magnet for magnetic attraction, increasing the thickness of the magnet, reducing the magnetic attraction fit distance, and minimizing the loss of magnetic induction lines (by splitting and arranging the magnet to form a magnetic circuit), these clever design concepts enable the earphones to firmly adhere during charging.
