3 Pin Vertical & SMT Pogo Pin Connector
3 Pin Vertical & SMT Pogo Pin Connector
Compact vertical and SMT configurations provide flexible options for PCB integration and component placement.
The three-pin design delivers reliable spring-loaded electrical contact in space-constrained electronic assemblies.
Specifications
3 Pin Vertical & SMT Pogo Pin Connectors
TOP-LINK 3 Pin Vertical & SMT Pogo Pin Connectors provide compact and reliable spring-loaded contact solutions for PCB, electronic and precision interconnect applications. Integrating three pogo pin contacts into a compact connector structure, these products are available in vertical and SMT configurations to support different PCB layouts and assembly requirements.
The vertical configuration is suitable for applications requiring an upright contact arrangement and efficient use of PCB space, while the SMT configuration is designed for surface-mount PCB integration. Both configurations provide flexible options for engineers designing compact electronic assemblies and high-density interconnect systems.
Characteristics
- 3-pin configuration: Integrates three spring-loaded pogo pin contacts into a compact connector structure
- Vertical mounting: Suitable for upright PCB and compact electronic assembly designs
- SMT mounting: Designed for surface-mount PCB integration and efficient component placement
- Compact design: Helps optimize PCB space and support high-density component layouts
- Reliable contact: Spring-loaded contact structure provides stable electrical connection
Applications
PCB assemblies, board-to-board interconnects, consumer electronics, wearable devices, electronic modules, compact electronic equipment, charging interfaces and other precision electrical connection applications
Mounting Options
Vertical mounting and SMT mounting configurations
Product Features
- Precision contact structure
- Stable electrical performance
- Fine-pitch design
- Long service life
- Multiple pin configurations
- Customizable connector structure
- RoHS & Halogen Free

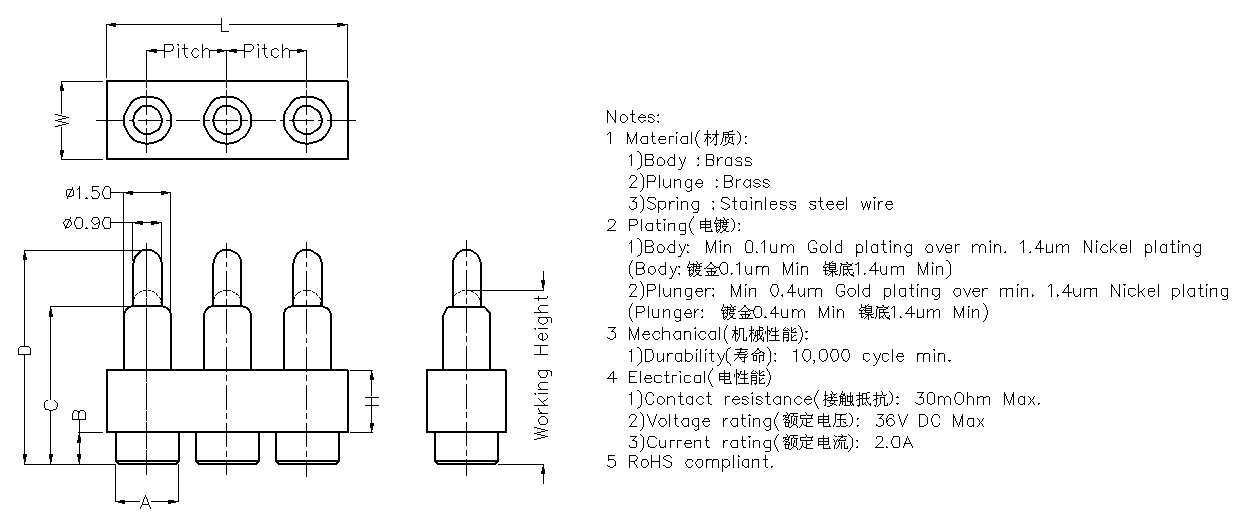

Selection Table
| P/N | L | W | H | Pitch | Cap | Positioning Post | A | B | C | D | Working height | Force (gf) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100351-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 1.60 | 0.40 | 2.20 | 3.00 | 2.50 | 90 Min |
| 100172-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 1.65 | 0.60 | 2.40 | 3.20 | 2.70 | 70 Min |
| 100282-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.40 | 2.50 | 3.50 | 2.90 | 100±30 |
| 100145-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.40 | 2.70 | 3.80 | 3.10 | 80±30 |
| 100424-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.00 | 4.00 | 3.20 | 140±30 |
| 110341-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 1.90 | 0.90 | 2.90 | 4.20 | 3.30 | 100 Min |
| 100189-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.00 | 4.30 | 3.35 | 90 Min |
| 100324-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.30 | 4.60 | 3.80 | 80+60/-20 |
| 100130-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.50 | 5.00 | 3.80 | 60±15 |
| 100226-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.50 | 4.80 | 3.80 | 80 Min |
| 100085-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.00 | 4.50 | 3.90 | 80±20 |
| 100782-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 35±15 |
| 100453-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.50 | 5.00 | 4.20 | 80±20 |
| 100130-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 3.50 | 5.00 | 4.20 | 45±10 |
| 100176-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 125±30 |
| 100773-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 35±15 |
| 100773-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 35±15 |
| 100774-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 75±25 |
| 1001101-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 6.00 | 5.00 | 80 Min |
| 100635-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.50 | 6.00 | 5.00 | 90 Min |
| 110867-3 | 10.50 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 0.50 | 4.50 | 6.30 | 5.10 | 95 Min |
| 100632-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 6.00 | 5.20 | 65±20 |
| 10101031148 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 1.80 | 1.30 | 4.50 | 6.80 | 5.50 | 90 Min |
| 100204-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 1.00 | 5.00 | 7.00 | 5.50 | 157±30 |
| 110734-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 1.00 | 5.50 | 7.50 | 5.90 | 80±25 |
| 110866-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 0.50 | 5.20 | 7.00 | 6.20 | 90 Min |
| 110317-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 1.00 | 5.50 | 7.50 | 6.50 | 80 Min |
| 110736-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 1.00 | 5.00 | 7.30 | 6.50 | 90±20 |
| 110406-3 | 7.60 | 2.50 | 1.50 | 2.54 | N | N | 2.00 | 1.60 | 7.20 | 9.00 | 8.00 | 100±30 |
| 100255-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.40 | 2.20 | 3.00 | 2.50 | 90 Min |
| 100699-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.40 | 2.50 | 3.50 | 2.90 | 100±30 |
| 100110-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 3.00 | 4.30 | 3.50 | 120±25 |
| 100430-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 3.00 | 4.50 | 3.60 | 180 Max |
| 100234-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 3.50 | 4.80 | 3.80 | 80 Min |
| 100418-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 150±30 |
| 100521-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 30±15 |
| 100147-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 65±25 |
| 100601-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 30±10 |
| 100712-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 0.50 | 4.00 | 5.80 | 4.80 | 90 Min |
| 110227-3 | 8.50 | 2.50 | 1.50 | 3.00 | N | N | 2.00 | 1.00 | 5.00 | 6.50 | 5.50 | 125±30 |
| 100546-3 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 1.00 | 5.00 | 7.00 | 6.00 | 115±30 |
| 110368-3 | 8.50 | 2.50 | 1.50 | 3.00 | N | N | 2.00 | 1.50 | 6.00 | 7.60 | 6.60 | 100±30 |
| 110672-3 | 8.50 | 2.50 | 1.50 | 3.00 | N | N | 2.00 | 1.50 | 6.00 | 8.50 | 7.00 | 140±25 |
| 110530-3 | 8.50 | 2.50 | 1.50 | 3.00 | N | N | 2.00 | 1.80 | 7.20 | 10.00 | 9.00 | 100±25 |
| 110755-3 | 10.50 | 2.50 | 1.50 | 4.00 | N | N | 2.00 | 1.60 | 7.20 | 9.00 | 8.00 | 100±30 |
| 100867-3 | 10.50 | 2.50 | 1.50 | 4.00 | Y | N | 2.00 | 0.50 | 4.50 | 6.30 | 5.10 | 90 Min |
| 10101031350 | 10.50 | 2.50 | 1.50 | 4.00 | Y | N | 2.00 | 0.50 | 3.20 | 4.50 | 3.60 | 80 min |
| 10101031317 | 10.50 | 2.50 | 1.50 | 4.00 | Y | N | 2.00 | 1.90 | 6.50 | 8.50 | 7.15 | 168±30 |
| 110713-3 | 12.76 | 2.50 | 2.00 | 5.08 | N | N | 2.00 | 1.60 | 7.20 | 9.00 | 8.00 | 100±30 |
| 110667-3 | 17.78 | 2.54 | 2.40 | 7.62 | N | N | 2.00 | 0.50 | 3.00 | 4.00 | 3.20 | 140±35 |
| 10101031724 | 12.50 | 2.50 | 1.80 | 4.30 | Y | Y | 1.80 | 0.30 | 2.10 | 2.90 | 2.30 | 70±20 |
| 10101031226 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 0.50 | 4.00 | 6.00 | 5.00 | 80 min |
| 10101031271 | 7.60 | 2.50 | 1.50 | 2.54 | Y | Y | 2.00 | 0.50 | 5.00 | 6.50 | 5.50 | 90 min |
| 100736-3 | 7.60 | 2.50 | 1.50 | 2.54 | Y | N | 2.00 | 1.00 | 5.00 | 7.30 | 6.50 | 90±25 |
| 10101031986 | 8.50 | 2.50 | 1.50 | 3.00 | Y | N | 2.00 | 3.80 | 7.70 | 9.50 | 8.50 | 60±15 |
