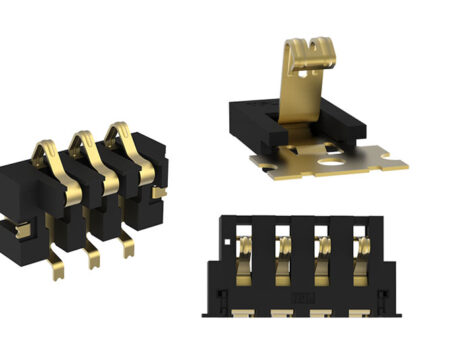

Battery Shrapnel
Spring Clip Connectors
Battery Shrapnel
Spring Clip Connectors

Spring Clip Connectors

Designed for reliable battery, charging, PCB and electrical connection applications with an integrated spring contact and plastic housing structure.

Multiple pin configurations and customizable designs help meet different dimensional, contact and performance requirements.

  • High contact reliability
  • Low contact resistance
  • Long service life
  • Compact and space-saving
  • Multiple pin configurations
  • Cost-effective for high-volume production
VIEW SPECIFICATIONS   REQUEST A QUOTE

Specifications

Spring Clip Connectors

TOP-LINK Spring Clip Connectors provide compact and reliable contact solutions for battery connection, charging, PCB and other electrical connection applications. Featuring integrated spring contacts and plastic housings, these connectors offer flexible configurations for different pin counts, dimensions and contact requirements. With strong R&D and manufacturing capabilities, we can develop customized spring clip connectors to meet specific application and performance requirements.

Characteristics
  • Cost-effective: Up to 80% lower cost than Pogo Pin solutions
  • High production capacity: Up to 500K pieces per mold per day
  • Compact design: Saves space in compact electronic devices
  • Low contact resistance: Less than 10 mΩ
  • Multiple configurations: Available in 2-pin, 3-pin and 4-pin designs
Applications

Battery connection, charging, PCB and electrical connection

Materials

C5240-SH, C17200 and engineering plastics

Product Features
  • Reliable electrical contact
  • Low contact resistance: Less than 10 mΩ
  • Long service life
  • Compact and space-saving design
  • Multiple pin configurations
  • Customizable connector structure
  • Cost-effective for high-volume production
Selection Table
No.Part No.TypeSpecificationsL × W × HWorking TravelDrawing2D Drawing
1200014-1弹片开放式2.0H,2.3W,ANTENNA CLIPS4.6*2.3*2.00.90200014-1-2.png
2200015-1弹片开放式2.5~4.0H,2.3W,ANTENNA CLIP4.6*2.3*2.50.90200015-1-2.png
3200016-1弹片开放式3.0H,2.3W,ANTENNA CLIPS4.6*2.3*3.00.90200016-1-2.png
4200017-1弹片开放式3.5H,2.3W,ANTENNA CLIPS4.6*2.3*3.50.90200017-1-2.png
5200018-1弹片开放式4.0H,2.3W,ANTENNA CLIPS4.6*2.3*4.00.90200018-1-2.png
6200019-1弹片开放式4.5~5.0H,2.3W,ANTENNA CLIPS4.6*2.5*4.00.90200019-1-2.png
7200030-1弹片开放式5.0H,3.0W,ANTENNA CLIPS4.6*3.0*5.00.90200030-1-2.png
8200035-1弹片带护框2.2H,0.9W,ANTENNA CLIPS3.5*0.9*2.20.60200035-1-2.png
9200039-1弹片连接器6.4H 1PIN BATTERY8.0*5.4*6.41.40200039-1-2.png
10200053-1弹片开放式1.3 1.6W,ANTENNA CLIPS3.8*1.6*1.30.65200053-1-2.png
11200054-1弹片开放式1.3&1.6H,1.6W,ANTENNA CLIPS3.8*1.6*1.60.65200054-1-2.png
12200055-1弹片开放式3.6H,1.25W,ANTENNA CLIPS3.85*1.25*3.61.00200055-1-2.png
13200056-1弹片开放式3.2H,1.25W,ANTENNA CLIPS3.75*1.25*3.21.00200056-1-2.png
14200057-1弹片开放式4.0H,1.25W,ANTENNA CLIPS3.85*1.25*4.01.00200057-1-2.png
15200037-23pin弹片连接器3PIN 2.5PITCH 4.5H10.4*6.5*4.51.00200037-2.png
16200050-22pin弹片连接器6.4H 2PIN BATTERY12.55*8.0*6.41.40200050-2.png
18200004-33pin弹片连接器3.20 Pitch Spring Battery Connector11.7*4.8*6.51.20200004-3.png
19200010-33pin弹片连接器3PIN 2.5PITCH 4.5H BATTERY7.9*4.8*4.51.0200010-3.png
20200037-33pin弹片连接器3PIN 2.5PITCH 4.5H10.4*5.0*4.51.0200037-3.png
21200051-33pin弹片连接器3PIN 3.0PITCH 6.0H BATTERY CONNECTOR8.9*4.5*6.02.50200051-3.png
23102010400264pin弹片连接器4.5H 2.50Pitch Spring Battery Connector12.8*4.8*6.51.5010201040026.png
