Pogo Pin Characteristics
Common structure of pogo pin
Pogo pin contact principle
Characteristics
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on PCB
- Good performance on RF solution
- RoHS and Halogen Free
Common internal structure of Pogo Pin
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Contact stability | ★ ★ ★ ★ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ★ ★ |
| Processing cost | ★ ★ ★ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ★ ★ ☆ |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |

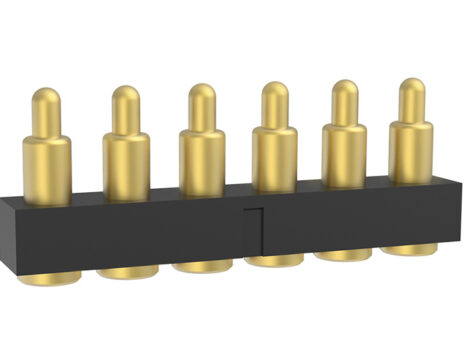

Product Model
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| 1 | 1001044-6 | 15.3 | 2.5 | 1.35 | 2.54 | N | N | 2 | 0.4 | 2.2 | 3 | 2.4 | 70±20 | |
| 2 | 110512-6 | 15.3 | 2.5 | 1.35 | 2.54 | N | N | 2 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 3 | 100701-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.4 | 2.7 | 4 | 3.2 | 80 Min | |
| 4 | 100944-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.5 | 120±30 | |
| 5 | 100184-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.8 | 80 Min | |
| 6 | 100404-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.5 | 3.3 | 4.8 | 3.8 | 90 Min | |
| 7 | 100097-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4.2 | 45±10 | |
| 8 | 100374-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 9 | 100410-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 1 | 5 | 7 | 6 | 75±25 | |
| 10 | 110411-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 2 | 1 | 5 | 7 | 6 | 25±15 | |
| 11 | 100253-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 1.8 | 0.8 | 5 | 7.5 | 6.4 | 80±20 | |
| 12 | 100591-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 2 | 1.5 | 6 | 8 | 6.65 | 130±30 | |
| 13 | 110291-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 2 | 1.5 | 6 | 8.5 | 7 | 140±30 | |
| 14 | 100350-6 | 15.3 | 2.5 | 2 | 2.54 | Y | N | 2 | 1.6 | 7.2 | 9 | 8 | 100±35 | |
| 15 | 10110060555 | 15.3 | 2.5 | 2 | 2.54 | N | N | 1.8 | 1 | 10 | 12.5 | 11 | 60±25 | |
| 16 | 110558-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 2 | 1 | 11.1 | 12.9 | 12 | 100 Min | |
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| 1 | 110553-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 0.8 | 2 | 2 | 0.5 | 4 | 5.5 | 4.5 | 75±25 | |
| 2 | 110297-6 | 15.3 | 2.5 | 1.35 | 2.54 | N | N | 1 | 1.1 | 2 | 0.5 | 5.3 | 7.6 | 6.5 | 90 Min | |
| 3 | 110494-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 0.6 | 4 | 1.8 | 0.5 | 9 | 11 | 9.5 | 100 Min | |
| 4 | 110928-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 0.8 | 0.7 | 1.8 | 0.3 | 8.5 | 11.3 | 10.5 | 85±20 | |
| 5 | 110408-6 | 15.3 | 2.5 | 2 | 2.54 | N | N | 1 | 1 | 1.8 | 0.5 | 9.9 | 12.4 | 11 | 90±25 | |
| 6 | 110359-6 | 15.3 | 2.5 | 1.35 | 2.54 | N | N | 1 | 1 | 1.8 | 0.5 | 9.9 | 12.7 | 11.7 | 80 Min | |
| 7 | 10101061573 | 12.5 | 2.5 | 4.4 | 2 | Y | N | 0.8 | 1 | 1.65 | 0.8 | 6 | 8 | 6.6 | 60 Max | |
| Index | | L | W | H | Pitch-1 | Pitch-2 | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch-1 | Pitch-2 | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| 1 | 100191-6 | 5.2 | 5.2 | 1.5 | 1.5 | 3.2 | N | N | 0 | 0 | 1.1 | 0.28 | 2.6 | 3.6 | 2.95 | 70±20 | |
| 2 | 110974-6 | 5.2 | 5.2 | 1.5 | 1.5 | 3.2 | N | N | 0 | 0 | 1.1 | 0.28 | 3.7 | 4.7 | 4.1 | 90±30 | |
| 3 | 100998-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 2 | 0.5 | 3.5 | 5 | 4 | 120±30 | |
| 4 | 110662-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 2 | 0.5 | 3.7 | 5.2 | 4.2 | 135±30 | |
| 5 | 110738-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 1.9 | 0.5 | 4 | 5.5 | 4.5 | 110±20 | |
| 6 | 100223-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 2 | 0.5 | 3.3 | 5.5 | 4.8 | 60 Max | |
| 7 | 100967-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 2 | 0.5 | 3.3 | 5.5 | 4.8 | 60 Max | |
| 8 | 110640-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 1 | 0.8 | 2 | 0.5 | 4.5 | 6 | 5 | 135±25 | |
| 9 | 110658-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 0 | 0 | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 10 | 100995-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | Y | N | 0 | 0 | 1.8 | 0.5 | 5 | 7 | 5.85 | 80 Min | |
| 11 | 110735-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 1 | 1 | 2 | 0.5 | 6 | 8 | 5.9 | 85 Min | |
| 12 | 100677-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | Y | N | 0 | 0 | 2 | 0.5 | 4.5 | 4.5 | 6 | 90 Min | |
| 13 | 110702-6 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | N | N | 1 | 1 | 2 | 2 | 8 | 10 | 8.9 | 80 Min | |
| 14 | 100709-6 | 7.5 | 5.5 | 1.5 | 2.54 | 3 | N | N | 0 | 0 | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 15 | 10101061236 | 7.5 | 5.5 | 1.5 | 2.54 | 3 | N | N | 0 | 0 | 2 | 0.4 | 2.5 | 3.4 | 2.6 | 100±20 | |
| 16 | 10110061476 | 7.62 | 5.08 | 4 | 2.54 | 2.54 | N | N | 1 | 2.5 | 1.83 | 0.5 | 4.5 | 5.8 | 4.7 | 90±25 | |
| 17 | 10101061236 | 7.5 | 5.5 | 1.5 | 2.54 | 3 | N | N | 0 | 0 | 2 | 0.4 | 2.5 | 3.4 | 2.6 | 100±20 | |
| 18 | 10101061286 | 7.5 | 5.5 | 1.5 | 2.54 | 3 | N | N | 0 | 0 | 2 | 0.4 | 2.7 | 4 | 3.2 | 85±20 | |
| 19 | 10101062039 | 7.62 | 5.08 | 2.8 | 2.54 | 2.54 | Y | N | 0 | 0 | 2 | 0.5 | 4.5 | 6 | 5 | 90±20 | |
