Pogo Pin Characteristics
Common structure of pogo pin
Pogo pin contact principle
Characteristics
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on PCB
- Good performance on RF solution
- RoHS and Halogen Free
Common internal structure of Pogo Pin
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Contact stability | ★ ★ ★ ★ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ☆ ☆ | ★ ★ ★ ★ ★ |
| Processing cost | ★ ★ ★ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ☆ ☆ ☆ | ★ ★ ★ ★ ☆ |
| Main application areas | Mainly used for charging and condition with certain requirements for vibration and shock | Mainly used for charging or signal transmission of Consumer electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which high-reliability is required,such as base stations,military industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is easy to run through the spring,and it is not recommended for charging | The needle and the needle tube have multiple contacts to increase the contact stability |

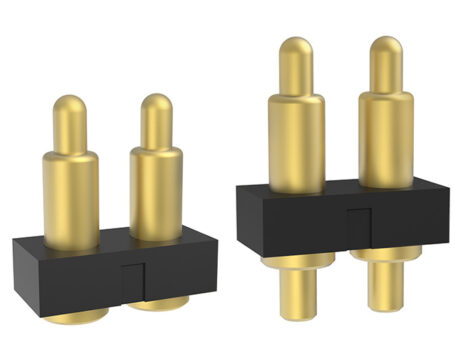

Product Model
| Index | Part No. | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| Index | Part No. | L | W | H | Pitch | Cap | Positioner | A | B | C | D | Working height | Froce(gf) | PDF |
|---|
| 1 | 100390-2 | 6.1 | 2.5 | 1.5 | 2.5 | Y | Y | 2 | 0.5 | 3.5 | 5 | 3.9 | 50±20 | |
| 2 | 110462-2 | 14.7 | 5.9 | 2.26 | 2.5 | N | N | 2 | 0.5 | 4 | 6.3 | 5.25 | 120±30 | |
| 3 | 100128-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 4 | 100209-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.4 | 2.5 | 3.3 | 2.8 | 90±20 | |
| 5 | 100077-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.4 | 2.7 | 3.5 | 3 | 60 Min | |
| 6 | 100580-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.4 | 2.7 | 3.8 | 3 | 85±20 | |
| 7 | 100593-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4 | 3.2 | 140±35 | |
| 8 | 100564-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1.8 | 0.5 | 3.1 | 4.2 | 3.4 | 110±25 | |
| 9 | 100266-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.5 | 65 Min | |
| 10 | 100438-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.7 | 90+30/-20 | |
| 11 | 100389-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 50 Min | |
| 12 | 100100-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 80 Min | |
| 13 | 10101021156 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4.2 | 75 Min | |
| 14 | 100148-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 120+30/-25 | |
| 15 | 100312-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1.8 | 1.3 | 4.5 | 6 | 5 | 80+60/-20 | |
| 16 | 100244-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4.5 | 6.3 | 5.3 | 105±25 | |
| 17 | 100232-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1.8 | 0.8 | 5 | 6.5 | 5.3 | 90 Min | |
| 18 | 100457-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5 | 6.8 | 5.5 | 110 Min | |
| 19 | 100644-2 | 5.2 | 2.4 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 5 | 7 | 5.5 | 80+/-35 | |
| 20 | 100590-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5.5 | 7.5 | 5.7 | 180 Max | |
| 21 | 100620-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5.8 | 7.3 | 6.2 | 132±30 | |
| 22 | 100636-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5.8 | 7.8 | 7 | 120±30 | |
| 23 | 10101021362 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1.6 | 7.2 | 9 | 7.7 | 120±35 | |
| 24 | 100448-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 25 | 100469-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 26 | 100272-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 1.8 | 0.4 | 2.5 | 3.5 | 2.8 | 105±30 | |
| 27 | 100402-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.5 | 3.3 | 2.8 | 90±20 | |
| 28 | 100386-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.7 | 3.5 | 3 | 60 Min | |
| 29 | 100545-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.4 | 2.7 | 3.8 | 3 | 80±30 | |
| 30 | 100277-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 1.9 | 0.9 | 2.9 | 4 | 3.2 | 80 Min | |
| 31 | 110403-2 | 5.66 | 2.5 | 1.5 | 3 | N | N | 1.9 | 0.9 | 2.9 | 4 | 3.2 | 120±30 | |
| 32 | 100273-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.5 | 120±30 | |
| 33 | 100500-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.7 | 90+30/-20 | |
| 34 | 100547-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3.3 | 4.8 | 3.8 | 90 Min | |
| 35 | 100300-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 150±30 | |
| 36 | 100159-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 120+30/-25 | |
| 37 | 100160-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 1.8 | 1.3 | 4.5 | 6.3 | 5 | 90 Min | |
| 38 | 100360-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4.5 | 6 | 5 | 90 Min | |
| 39 | 100442-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 0.5 | 4 | 6 | 5.2 | 65±20 | |
| 40 | 100115-2 | 6.2 | 2.6 | 4.2 | 3 | Y | N | 1.8 | 0.8 | 5 | 6.5 | 5.5 | 95 Min | |
| 41 | 100340-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 42 | 100483-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 1 | 5 | 7 | 5.5 | 80±35 | |
| 43 | 100576-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 1.8 | 0.5 | 5 | 7 | 5.9 | 120+40/-20 | |
| 44 | 100023-2 | 6.2 | 2.6 | 4.2 | 3 | Y | N | 1.8 | 0.8 | 6.1 | 7.6 | 6.5 | 110±25 | |
| 45 | 100263-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 46 | 100063-2 | 6.2 | 2.6 | 4.2 | 3 | Y | N | 1.8 | 0.8 | 6.1 | 7.9 | 6.7 | 100 Min | |
| 47 | 100511-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 1.5 | 6 | 8.5 | 7 | 140±30 | |
| 48 | 100267-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 49 | 100146-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.4 | 2.7 | 3.5 | 2.9 | 60 Min | |
| 50 | 100419-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.4 | 2.7 | 4 | 3.2 | 85±25 | |
| 51 | 100158-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.5 | 3 | 4.3 | 3.5 | 65 Min | |
| 52 | 100543-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.5 | 3 | 4.5 | 3.7 | 90+30/-20 | |
| 53 | 100345-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 75 Min | |
| 54 | 100091-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.5 | 3.7 | 5.2 | 4.2 | 135±30 | |
| 55 | 100081-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 120±30 | |
| 56 | 100305-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 1.8 | 1.3 | 4.5 | 6 | 5 | 80 Min | |
| 57 | 100022-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1 | 5 | 6.5 | 5.25 | 125+60/-20 | |
| 58 | 100044-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1 | 5 | 7 | 5.5 | 157±30 | |
| 59 | 100070-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1 | 5 | 7.3 | 6.5 | 90±30 | |
| 60 | 100513-2 | 6.16 | 2.5 | 1.5 | 3.5 | N | N | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 61 | 100051-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1.5 | 6 | 8 | 6.65 | 130+25/-20 | |
| 62 | 100157-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1.5 | 6 | 8.5 | 7 | 140±30 | |
| 63 | 100167-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 2 | 1.6 | 7.2 | 9.2 | 8 | 80 Min | |
| 64 | 100055-2 | 6.8 | 2.6 | 4.5 | 3.9 | N | N | 1.8 | 0.5 | 5 | 7 | 5.9 | 120+40/-20 | |
| 65 | 100074-2 | 6.8 | 2.75 | 4.4 | 3.9 | N | N | 1.8 | 0.5 | 5 | 7 | 5.9 | 120+40/-20 | |
| 66 | 100517-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 67 | 100596-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 68 | 110531-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.4 | 2.5 | 3.3 | 2.7 | 90±25 | |
| 69 | 100587-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.8 | 0.4 | 2.5 | 3.3 | 2.8 | 90±20 | |
| 70 | 110401-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.4 | 2.7 | 3.8 | 3 | 80±30 | |
| 71 | 100560-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.9 | 0.9 | 2.9 | 4 | 3.2 | 120±30 | |
| 72 | 100595-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.4 | 2.7 | 4 | 3.2 | 85 Min | |
| 73 | 100033-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 3 | 4.3 | 3.3 | 65 Min | |
| 74 | 100437-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 3 | 4.5 | 3.6 | 95+30/-20 | |
| 75 | 100261-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 3.3 | 4.6 | 3.7 | 85 Min | |
| 76 | 100219-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 3.5 | 5 | 4 | 150±30 | |
| 77 | 100440-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 3.7 | 5.2 | 4.35 | 75±15 | |
| 78 | 100155-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 4 | 5.5 | 4.5 | 120±30 | |
| 79 | 100357-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.9 | 0.5 | 4.2 | 5.9 | 4.7 | 60 Min | |
| 80 | 100203-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 4.5 | 6.3 | 5 | 95 Min | |
| 81 | 100575-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 0.5 | 4.5 | 6 | 5 | 90 Min | |
| 82 | 100050-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 83 | 100154-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.8 | 0.8 | 5 | 6.5 | 5.5 | 90 Min | |
| 84 | 100352-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1 | 5 | 6.8 | 5.6 | 100 Min | |
| 85 | 100052-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 1.8 | 0.5 | 5 | 7 | 5.9 | 120+40/-20 | |
| 86 | 100161-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1 | 5.5 | 7.5 | 6.3 | 80 Min | |
| 87 | 100076-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1.5 | 6 | 8.5 | 7 | 140±30 | |
| 88 | 100607-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1.9 | 6.5 | 9 | 7.8 | 115±35 | |
| 89 | 110496-2 | 6.66 | 2.5 | 1.5 | 4 | N | N | 2 | 1.6 | 7.2 | 10 | 9 | 100±20 | |
| 90 | 10101021349 | 6.66 | 2.5 | 1.5 | 4 | Y | N | 2 | 0.5 | 3.2 | 4.5 | 3.6 | 80 Min | |
| 91 | 10101021352 | 6.66 | 2.5 | 1.5 | 4 | Y | N | 2 | 0.5 | 4.5 | 6 | 5 | 90 Min | |
| 92 | 10101021316 | 6.66 | 2.5 | 1.5 | 4 | Y | N | 2 | 1.9 | 6.5 | 8.5 | 7.15 | 168±30 | |
| 93 | 100106-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 1.65 | 0.4 | 2.2 | 3 | 2.5 | 90 Min | |
| 94 | 100111-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 2 | 0.4 | 2.7 | 3.5 | 3 | 60 Min | |
| 95 | 110495-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 2 | 0.5 | 3.5 | 5 | 4 | 50 Min | |
| 96 | 100924-2 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 97 | 100120-2 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 2 | 1 | 5 | 7 | 6 | 115±25 | |
| 98 | 100743-2 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 2 | 1 | 5 | 7 | 6 | 25±15 | |
| 99 | 100048-2 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 2 | 1.5 | 6 | 8 | 6.65 | 130+25/-20 | |
| 100 | 100177-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 2 | 1.9 | 6.5 | 8.5 | 7.1 | 115±35 | |
| 101 | 100271-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 2 | 1.5 | 6 | 8.5 | 7.5 | 125±30 | |
| 102 | 100072-2 | 7.6 | 2.5 | 1..5 | 5.08 | Y | N | 2 | 1.6 | 7.2 | 10 | 9 | 100±25 | |
| 103 | 100695-2 | 8.5 | 2.5 | 1.5 | 6 | Y | N | 2 | 0.5 | 3.5 | 5 | 4.2 | 80±20 | |
| 104 | 110641-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 1.8 | 1.3 | 4.5 | 6 | 5 | 80 Min | |
| 105 | 100034-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 5.5 | 7.5 | 6.5 | 100+60/-20 | |
| 106 | 100024-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2 | 1.9 | 6.5 | 8.5 | 7.15 | 168±25 | |
| 107 | 100035-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 6.6 | 8.6 | 7.5 | 110+60/-20 | |
| 108 | 100040-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2 | 1.6 | 7.2 | 9 | 8 | 100±35 | |
| 109 | 100034-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 7.3 | 9.3 | 8 | 120+60/-20 | |
| 110 | 100089-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 8 | 10 | 8.8 | 120+60/-20 | |
| 111 | 100035-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 8 | 10 | 8.8 | 120+60/-20 | |
| 112 | 100036-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 8.5 | 10.5 | 9 | 120+60/-20 | |
| 113 | 100053-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 8.5 | 11.3 | 9.6 | 120 Min | |
| 114 | 100054-2 | 9.5 | 3.5 | 2.6 | 6 | N | N | 2.8 | 1.5 | 9.5 | 12.3 | 11.2 | 110 Min | |
| 115 | 100163-2 | 10.2 | 2.5 | 2.5 | 7.62 | Y | N | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 116 | 10101021225 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5.5 | 7.5 | 6.5 | 80 Min | |
| 117 | 10101021355 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 2 | 0.5 | 4.3 | 5.8 | 4.8 | 95 Min | |
| 118 | 10101021378 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 4 | 5.8 | 4.8 | 95±25 | |
| 119 | 10101021228 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 80 Min | |
| 120 | 10101021714 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 0.5 | 3.5 | 5 | 4 | 60±15 | |
| 121 | 10101022007 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 2 | 1 | 5 | 7.3 | 6.5 | 90±20 | |
| 122 | 10101021987 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 2 | 3.8 | 7.7 | 9.5 | 8.5 | 60±15 | |
| 123 | 10101022068 | 8.6 | 2.5 | 0.8 | 6 | N | N | 1.7 | 1.1 | 3 | 4.2 | 3.4 | 90±20 | |
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| Index | | L | W | H | Pitch | Cap | Positioner | A | B | C | D | E | F | Working height | Froce(gf) | PDF |
|---|
| 1 | 100156-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1 | 1 | 2 | 0.4 | 2.7 | 3.6 | 2.9 | 95 Min | |
| 2 | 100218-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1 | 1 | 2 | 0.5 | 3.5 | 5 | 3.8 | 120+30/-20 | |
| 3 | 100047-2 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1 | 1.1 | 2 | 0.5 | 3.5 | 5 | 4.2 | 80+60/-20 | |
| 4 | 110241-2 | 5.2 | 2.5 | 1.5 | 2.54 | N | N | 0.9 | 2.3 | 2 | 0.5 | 3.5 | 5.5 | 4.4 | 113+30/-20 | |
| 5 | 110505-2 | 5.2 | 2.5 | 1.5 | 2.54 | N | N | 1 | 1 | 2 | 0.5 | 6 | 8 | 6.6 | 115±30 | |
| 6 | 100417-2 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 0.9 | 1 | 2 | 0.5 | 3.5 | 5 | 4 | 135±25 | |
| 7 | 110749-2 | 5.6 | 2.5 | 1.5 | 3 | N | N | 0.8 | 2 | 2 | 0.5 | 4 | 6 | 5.2 | 80 Min | |
| 8 | 10101021658 | 5.66 | 2.5 | 1.5 | 3 | Y | N | 0.6 | 0.8 | 2 | 0.8 | 6 | 7.4 | 6.5 | 100±20 | |
| 9 | 110259-2 | 5.8 | 3 | 3.7 | 3.05 | N | Y | 0.8 | 6.45 | 1.65 | 0.45 | 4.15 | 5.45 | 4.45 | 124±25 | |
| 10 | 100293-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 1.25 | 0.8 | 2 | 0.4 | 2 | 2.7 | 2.2 | 108±22 | |
| 11 | 100471-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 1.25 | 0.8 | 2 | 0.4 | 1.9 | 2.9 | 2.2 | 108±22 | |
| 12 | 100292-2 | 6.16 | 2.5 | 1.5 | 3.5 | Y | N | 1 | 0.8 | 2 | 0.5 | 5.7 | 7.7 | 6.2 | 120 Min | |
| 13 | 110643-2 | 6.8 | 2.75 | 4.9 | 3.9 | N | Y | 1 | 1 | 2 | 2 | 8 | 10 | 8.9 | 80 Min | |
| 14 | 10101021571 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 1 | 1.1 | 2 | 1 | 5 | 6.5 | 5.5 | 125±30 | |
| 15 | 110916-2 | 7.6 | 2.5 | 1.5 | 5.08 | N | N | 0.6 | 2.5 | 2 | 0.5 | 10 | 12 | 10.8 | 120±25 | |
| 16 | 100954-2 | 10.2 | 2.5 | 2.5 | 7.62 | Y | N | 1 | 2 | 2 | 1.8 | 6.5 | 9 | 7 | 80 Min | |
| 17 | 10110021357 | 7.6 | 2.5 | 1.5 | 5.08 | Y | N | 0.8 | 1.75 | 1.8 | 0.7 | 5 | 7.49 | 6.09 | 90 Min | |
| 18 | 10101021725 | 7.8 | 2.5 | 1.5 | 5.08 | Y | N | 0.8 | 2 | 2 | 0.5 | 4.5 | 6 | 5.2 | 100±25 | |
| 19 | 10101021994 | 5.2 | 2.5 | 1.5 | 2.54 | Y | N | 1 | 1 | 2 | 1.8 | 6 | 8 | 6.6 | 115±25 | |
